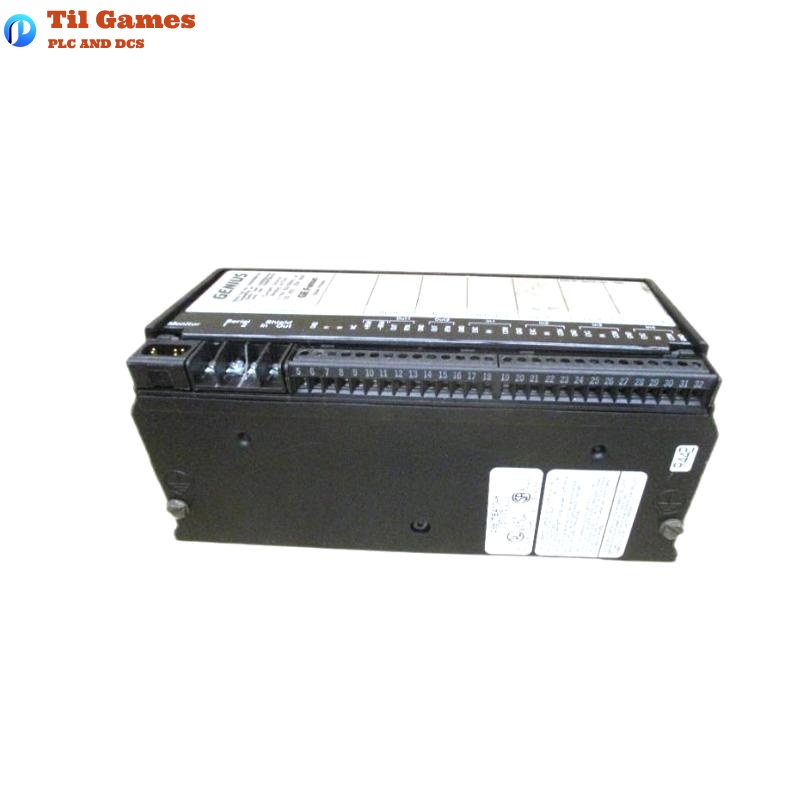

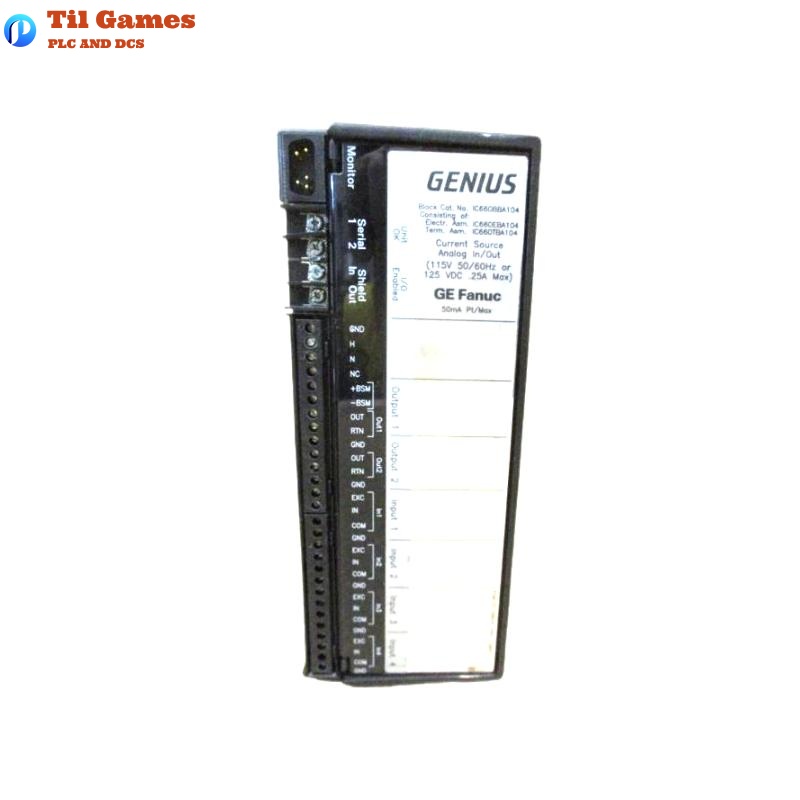

Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC660BBA104 |
| Power Supply | 115 VAC / 125 VDC |
| Analog Channels | 4 Inputs / 2 Outputs (4–20 mA current loop) |
| Input Accuracy | ±0.1% of full scale at 25°C |
| Input Resolution | 1 µA |
| Input Conversion Time | Selectable: 16.6 ms to 400 ms |
| Input Range | 4–20 mA (0–25 mA overrange) |
| Input Impedance | 100 Ohms ±5% |
| Output Accuracy | ±0.15% of full scale at 25°C |
| Output Resolution | 6 µA |
| Output Range | 4–20 mA (0–24 mA overrange) |
| Output Load | 0 to 850 Ohms |
| Isolation (Channel/Group) | 1500V RMS |
| Power Consumption | Max 12 Watts |
| Heat Dissipation | Max 12 Watts |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +100°C |
| Humidity | 5% to 95% non-condensing |
| Vibration | 5–10 Hz: 0.2″ displacement; 10–200 Hz: 1G |
| Dimensions (H x W x D) | 224.4 x 88.9 x 100 mm |
| Weight | 1.8 kg |
| Diagnostics | Input open wire, underrange/overrange, high/low alarm, output feedback error |
| Mounting | Enclosure required, 8-32 mounting screws |
| LED Indicators | Unit OK, I/O Enabled |
FAQ
FAQ
Q1: How many analog signals does the IC660BBA104 support?
A1: It supports 4 analog current inputs and 2 analog current outputs, operating on 4–20 mA loops.
Q2: Is user calibration required?
A2: No, the module is factory-calibrated and requires no user calibration.
Q3: Are the inputs and outputs isolated?
A3: Yes, all input channels are isolated from each other and from the outputs; isolation is rated at 1500V RMS.
Q4: Is hot-swapping supported?
A4: Electronics can be replaced without rewiring, but power must be removed to prevent shock hazard.
Q5: What is the module’s input voltage range?
A5: AC input is 98–132 VAC (47–63 Hz); DC input is 105–145 VDC.
Q6: Does the module support diagnostics?
A6: Yes, it supports diagnostics such as open wire, overrange, underrange, high/low alarms, and output feedback errors.
Q7: What configuration tools are supported?
A7: A Hand-held Monitor (IC66*HHM501E v3.7 or later) is required for configuration.
Q8: Are termination resistors required?
A8: Yes, when installed at the ends of the serial bus, a termination resistor should be installed across Serial 1 and Serial 2 terminals.
