Technical Specifications
| Parameter | Description |
|---|---|

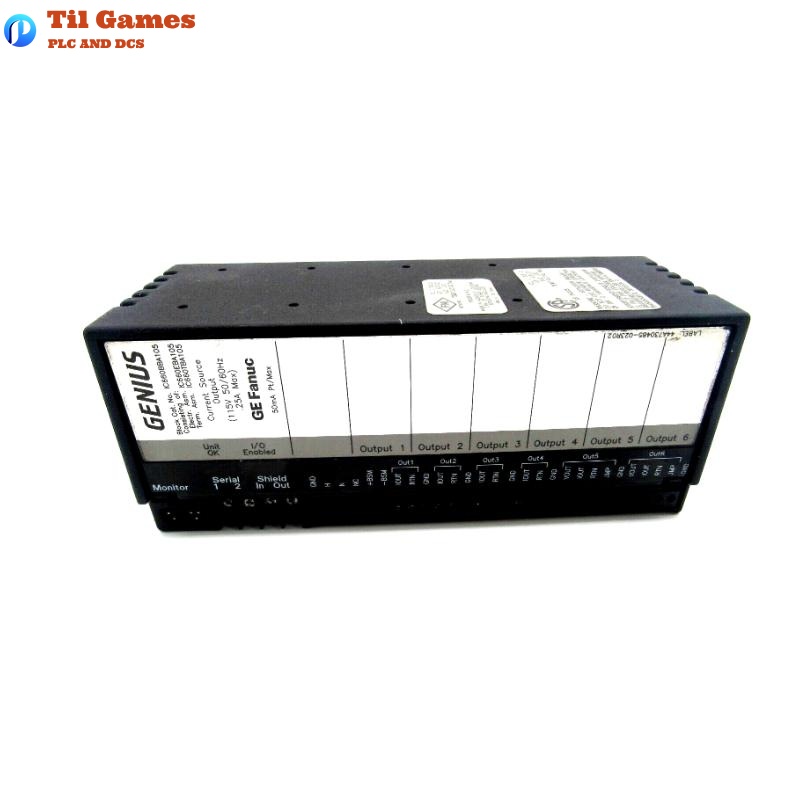

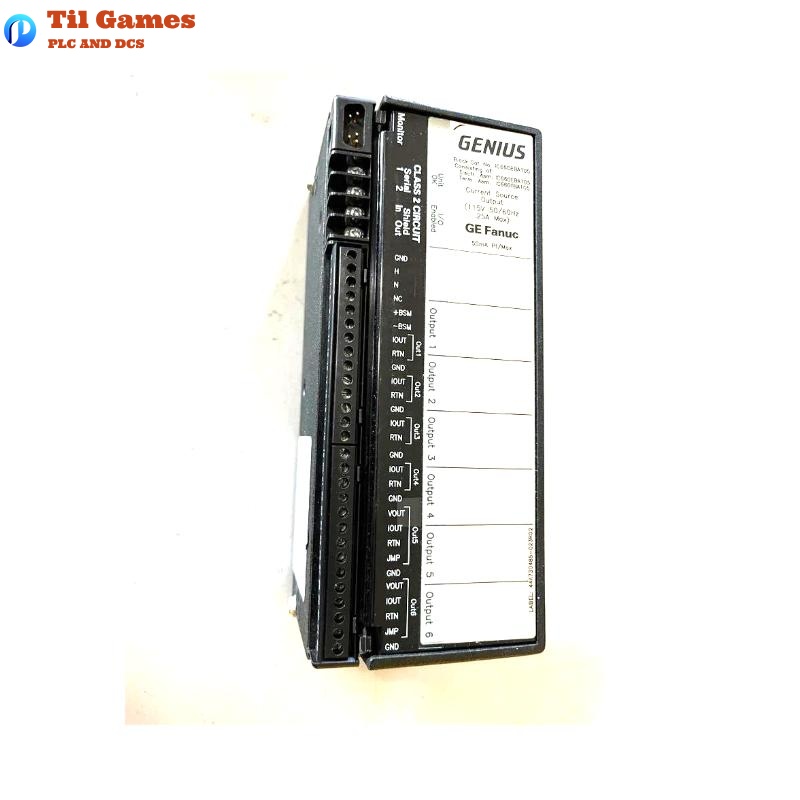

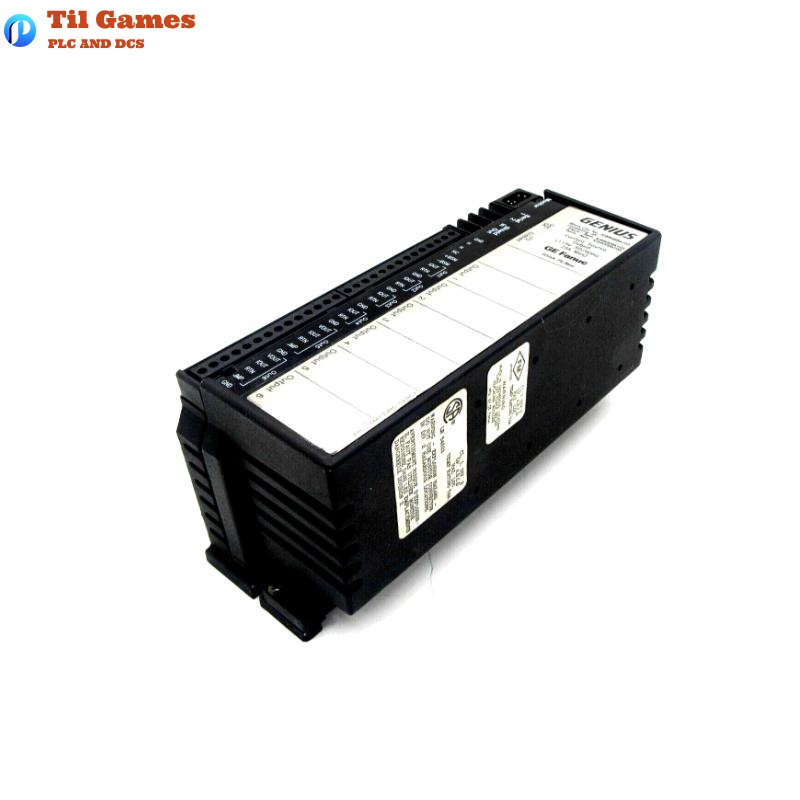

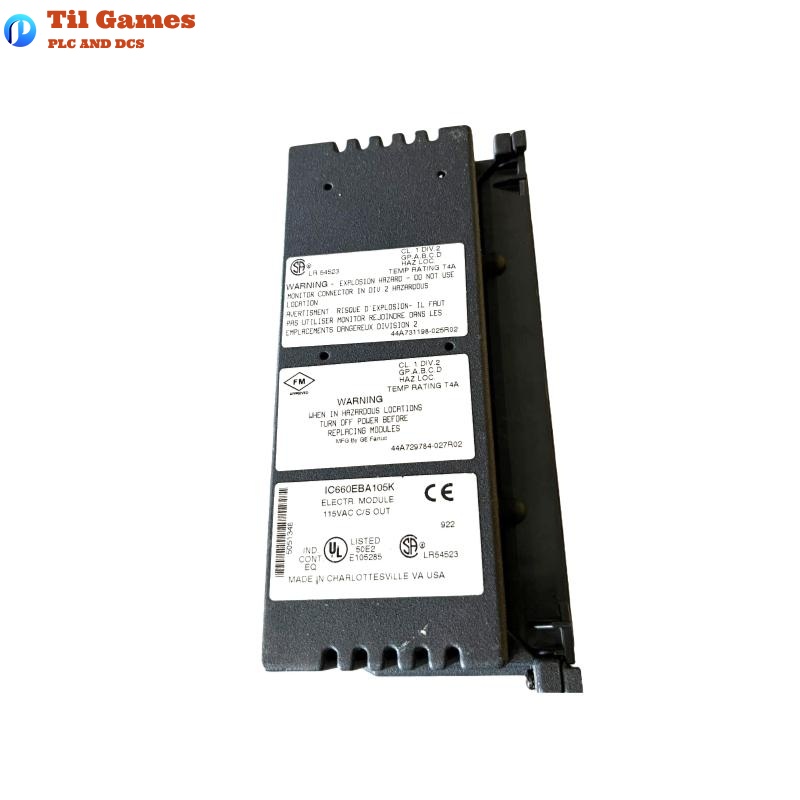

| Product Model | IC660BBA105 |
| Manufacturer | GE Fanuc |
| Series | Genius I/O |
| Module Type | Analog Output Block |
| Number of Outputs | 6 Analog Current Source Outputs |
| Output Type | Current: 0–20 mA or 4–20 mA |
| Output Load | 0–850 Ohms (typical) |
| Voltage Compliance | Max 10V @ 20mA (with 500 Ohm load) |
| Resolution | 12-bit Digital-to-Analog Conversion |
| Output Feedback | Yes, individually configurable |
| Redundancy Support | Hot Standby Mode |
| Configuration Protection | Supported |
| Baud Rates Supported | 38.4 Kbps / 76.8 Kbps / 153.6 Kbps |
| Diagnostics | Output fault reporting, output feedback |
| Default Output on Fault | Configurable (0, 2.5 sec, 10 sec) |
| Power Supply | 115 VAC / 125 VDC |
| Mounting | Panel Mount |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 224.4 x 88.9 x 100 mm |
| Weight | 1.43 kg |
FAQ
FAQ
Q1: What type of output signal does the IC660BBA105 support?
A1: It supports analog current output in the ranges of 0–20 mA or 4–20 mA.
Q2: Is output feedback available for each channel?
A2: Yes, each output channel supports individually configurable feedback.
Q3: Does the module support redundancy?
A3: Yes, it supports hot standby redundancy mode.
Q4: What is the typical output load resistance range?
A4: The typical load resistance range is 0 to 850 Ohms.
Q5: What baud rates are supported by the IC660BBA105?
A5: Supported baud rates include 38.4 Kbps, 76.8 Kbps, and 153.6 Kbps.
Q6: What happens to the output during power loss or fault?
A6: The output can be configured to hold the last state or revert to a default value with a delay of 2.5 or 10 seconds.
Q7: Is configuration protection supported?
A7: Yes, configuration protection is available to prevent unauthorized changes.
Q8: What are the power supply requirements for this module?
A8: It requires either 115 VAC or 125 VDC for operation.
