Technical Specifications
| Parameter | Specification |
|---|---|

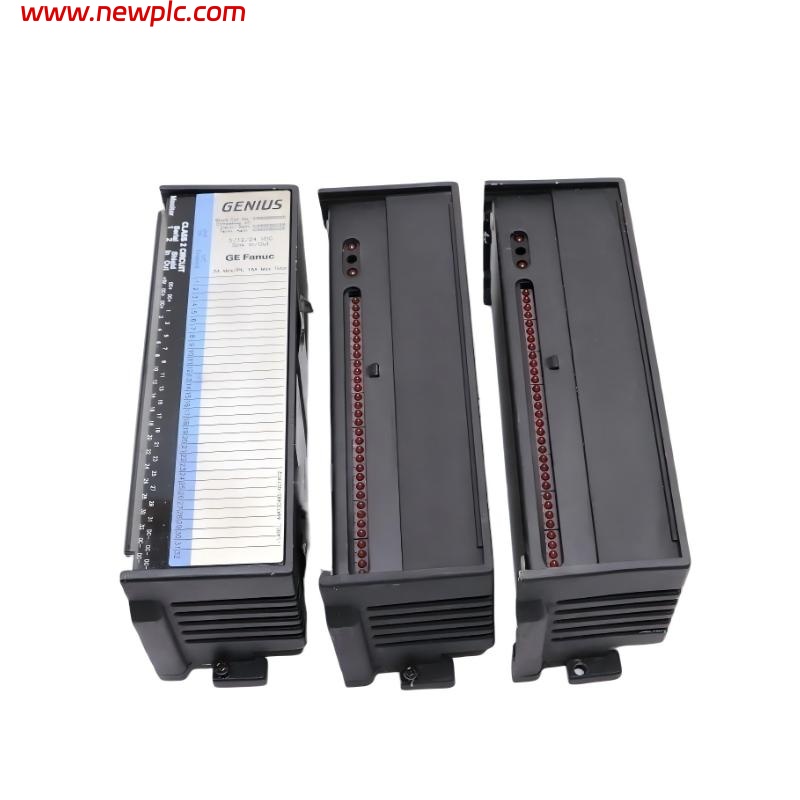

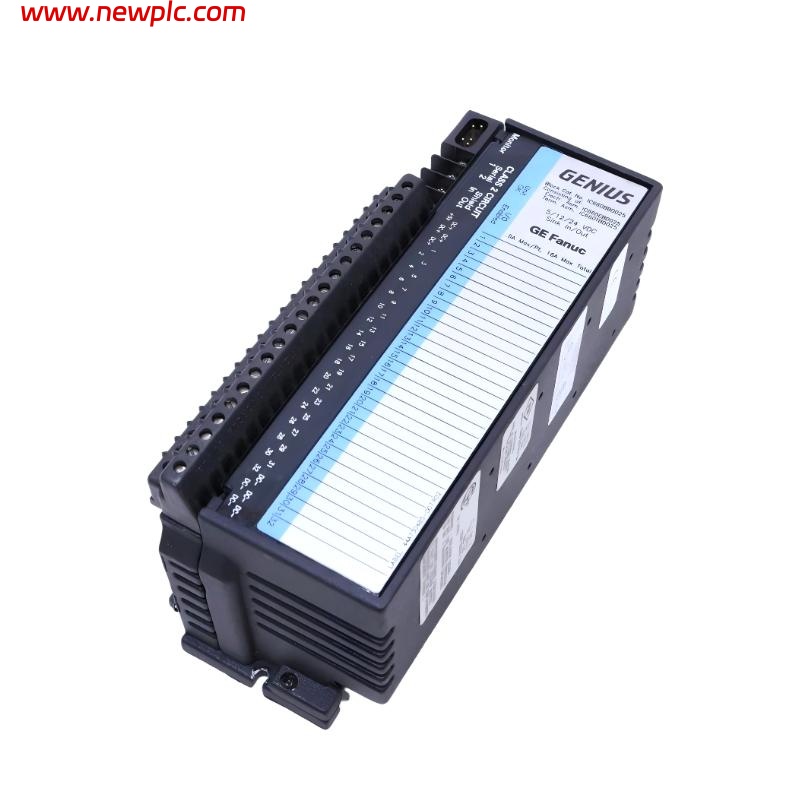

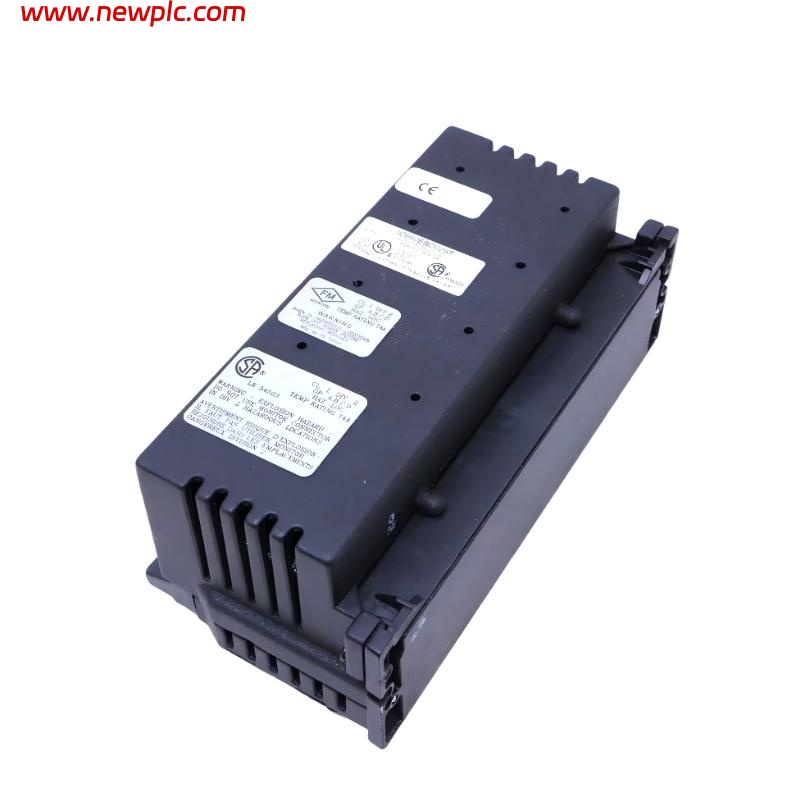

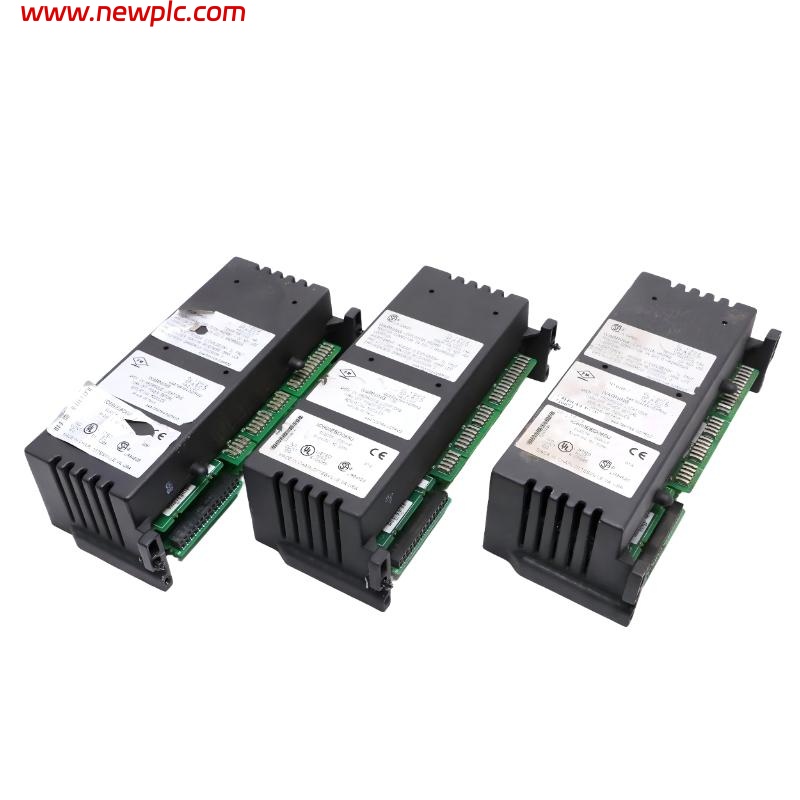

| Model | GE IC660BBD025 |
| Type | Discrete I/O Module |
| Function | Provides discrete input and output control for industrial automation systems |
| I/O Type | 16 Discrete I/O (8 inputs / 8 outputs) |
| Input Voltage Range | 24 VDC nominal |
| Output Voltage Range | 24 VDC nominal |
| Input Current | 7 mA per point typical |
| Output Current | 0.5 A per point max |
| Isolation | Optical isolation between I/O and logic |
| Output Type | Sourcing or sinking (configurable) |
| Input/Output Response Time | < 1 ms typical |
| Indicators | LED indicators for input/output status |
| Power Supply Requirement | Supplied from bus interface unit |
| Protection Features | Overload, short-circuit, and thermal protection |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Compliance | CE, UL, CSA |
| Dimensions (HxWxD) | 224.4 x 88.9 x 100 mm |
| Weight | 1.8 kg |
FAQ
FAQ
Q1: What is the main purpose of the IC660BBD025 Discrete I/O Module?
A1: The IC660BBD025 is designed to provide reliable discrete input and output control within GE Genius I/O systems, allowing seamless communication with PLCs and other automation devices.
Q2: How many I/O points does the IC660BBD025 provide?
A2: It offers a total of 16 discrete points—8 inputs and 8 outputs—that can be configured to handle various control signals in automation systems.
Q3: What voltage levels are supported by this module for input and output signals?
A3: The IC660BBD025 operates at a nominal 24 VDC for both inputs and outputs, which is a common standard for industrial control applications.
Q4: Does the IC660BBD025 include electrical isolation between I/O and logic circuits?
A4: Yes, the module features optical isolation between field I/O and internal logic to protect the system from voltage spikes, noise, or ground loops.
Q5: What kind of protection mechanisms are built into the IC660BBD025?
A5: The module includes overload, short-circuit, and thermal protection to ensure reliable and safe operation even under adverse conditions.
Q6: What is the typical response time for input and output signals?
A6: The IC660BBD025 provides a rapid response time of less than 1 millisecond, making it ideal for high-speed control processes.
Q7: How can users monitor the status of the inputs and outputs?
A7: Each input and output point is equipped with individual LED indicators, providing clear visual feedback for system monitoring and troubleshooting.
Q8: What standards does the IC660BBD025 comply with for industrial applications?
A8: The module is certified under CE, UL, and CSA standards, ensuring compliance with international safety and performance requirements for industrial environments.
