Technical Specifications
| Parameter | Specification |
|---|---|

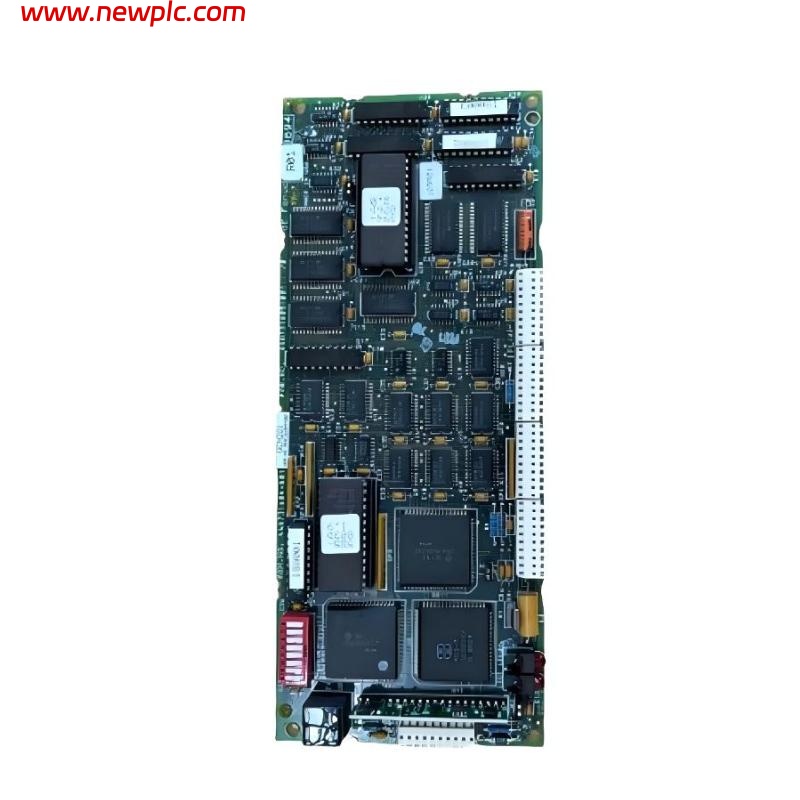

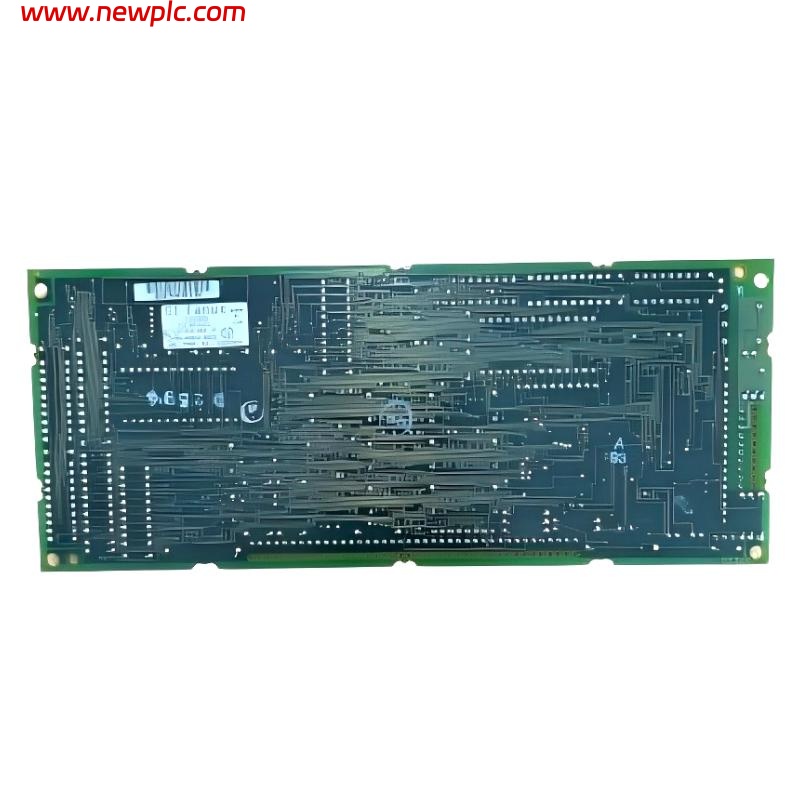

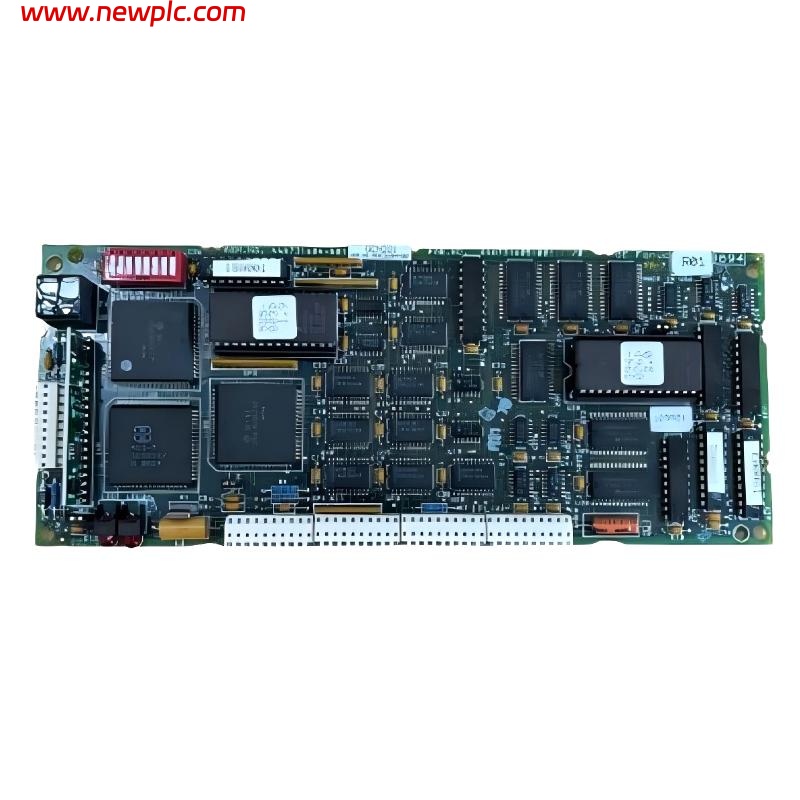

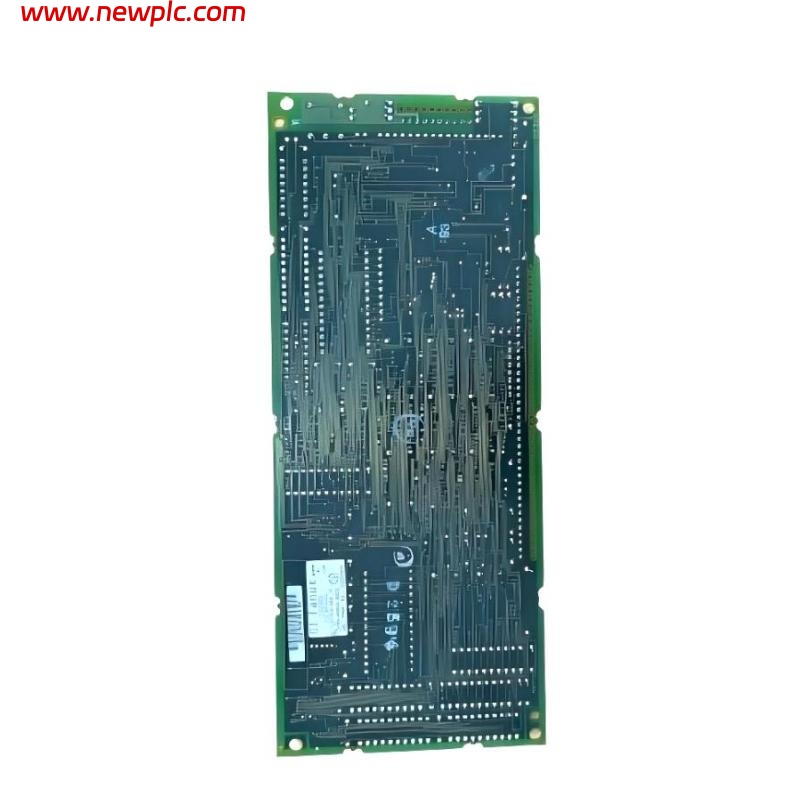

| Model | GE IC660ELB910 |
| Type | Bus Interface Module (BIM) |
| Function | Provides communication link between Genius I/O devices and control systems |
| Communication Protocol | Genius Bus |
| Data Rate | 153.6 Kbps |
| Interface Type | Serial bus interface |
| Network Cable Type | Shielded twisted pair (STP) |
| Maximum Network Length | Up to 750 meters per segment |
| Power Supply | 5 VDC nominal |
| Power Consumption | 3 W typical |
| Isolation | Optical and galvanic isolation |
| Status Indicators | LED indicators for power and communication |
| Diagnostics | Built-in diagnostics and error detection |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Compliance | CE, UL, CSA |
| Dimensions (HxWxD) | 200 x 100 x 20 mm |
| Weight | 0.136 kg |
FAQ
FAQ
Q1: What is the primary function of the IC660ELB910 Bus Interface Module?
A1: The IC660ELB910 serves as a communication interface between Genius I/O devices and the main control system, enabling reliable data transfer across the Genius bus network.
Q2: What communication protocol does the IC660ELB910 use?
A2: It operates using the Genius Bus protocol, which provides efficient and deterministic communication between distributed I/O devices and controllers.
Q3: What is the maximum data rate supported by this module?
A3: The IC660ELB910 supports a standard Genius network data rate of 153.6 Kbps, ensuring consistent communication performance across connected nodes.
Q4: What type of cabling is recommended for connecting the IC660ELB910 to the network?
A4: Shielded twisted pair (STP) cable is recommended for optimal signal integrity and to minimize electromagnetic interference in industrial environments.
Q5: Does the IC660ELB910 provide electrical isolation for communication lines?
A5: Yes, it includes both optical and galvanic isolation to protect connected devices and ensure stable data communication even in noisy electrical conditions.
Q6: What diagnostic features are available on the IC660ELB910?
A6: The module has built-in diagnostics for error detection and communication monitoring, along with LED indicators that display power and network status.
Q7: In what environmental conditions can the IC660ELB910 operate reliably?
A7: It operates within a temperature range of 0°C to 60°C and can be stored safely between -40°C and 85°C, with humidity tolerance up to 95% non-condensing.
Q8: What compliance certifications does the IC660ELB910 meet?
A8: The IC660ELB910 complies with CE, UL, and CSA industrial standards, ensuring safety, electromagnetic compatibility, and dependable performance in automation systems.
