Technical Specifications
| Parameter | Specification |
|---|---|

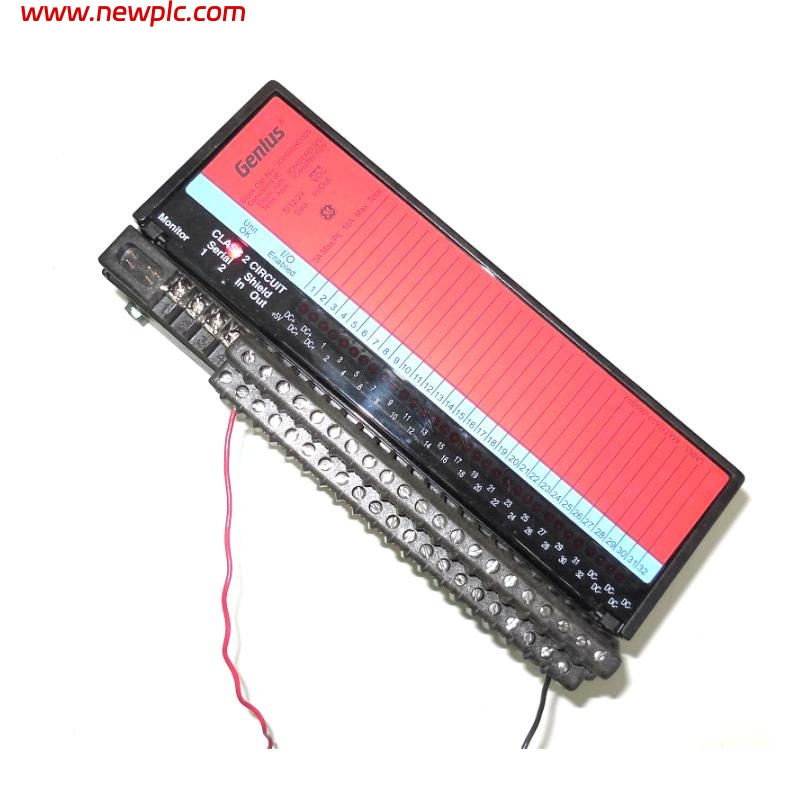

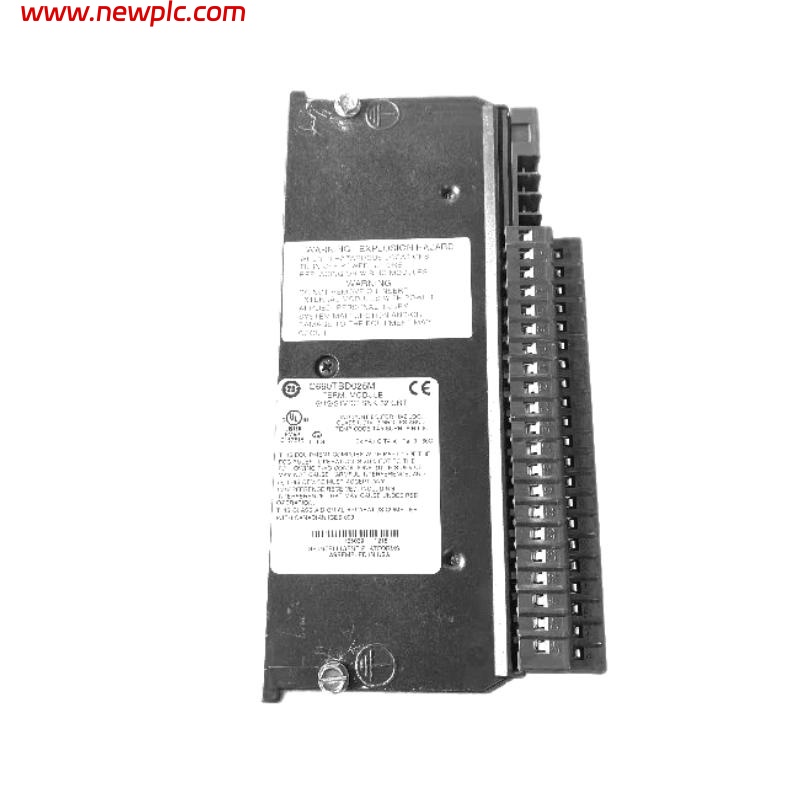

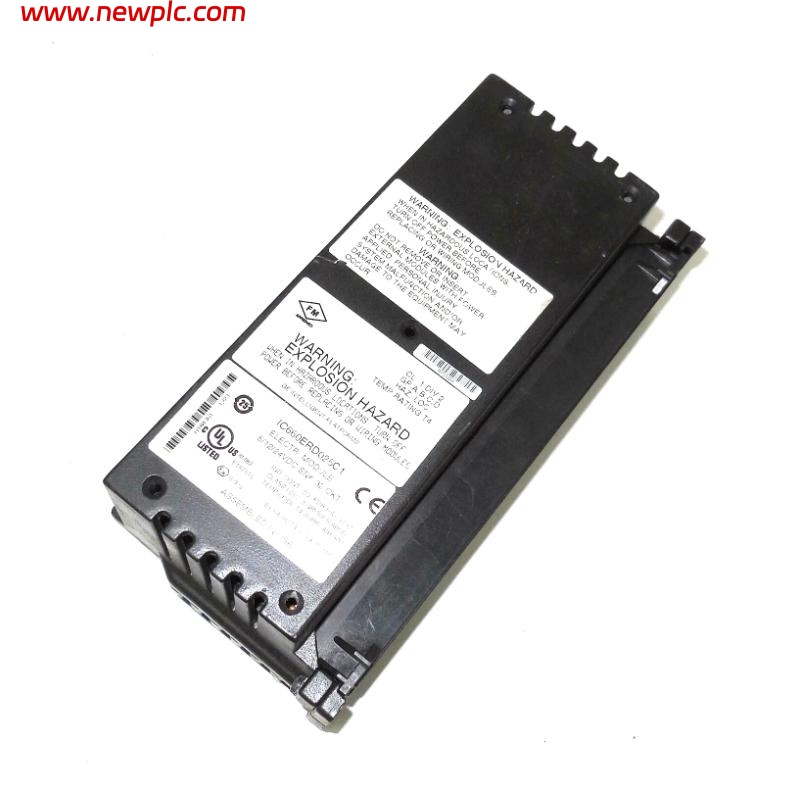

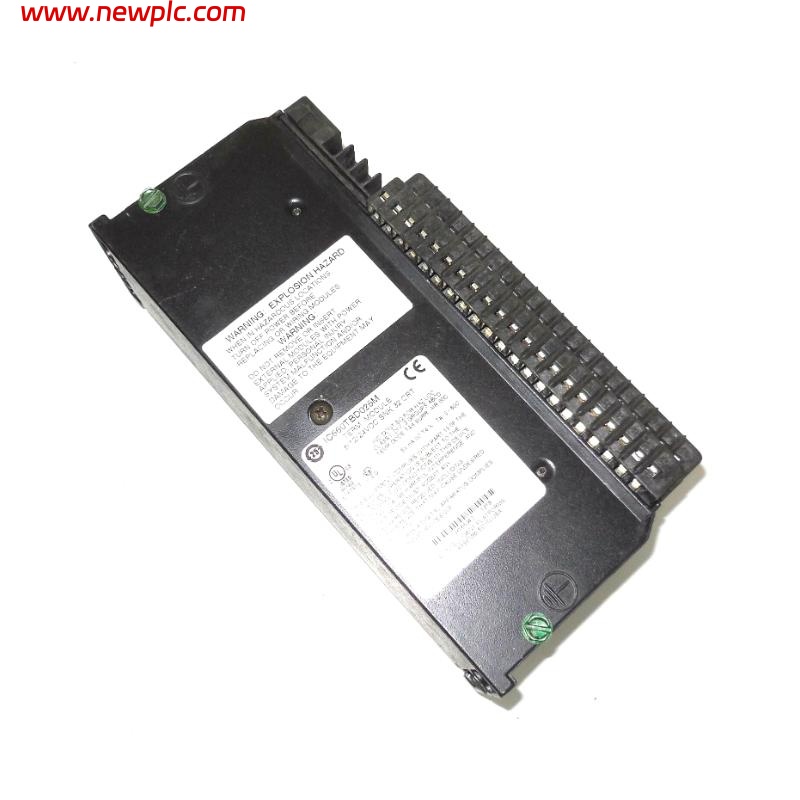

| Product Model | GE IC660BRD025 Genius Modular Redundancy Sinking Output Block |
| Circuits | 32 configurable discrete I/O circuits |
| Operating Voltage | 10–30 VDC (12/24 V supply) / 4.9–5.3 VDC (5 V supply, sink only) |
| Input Voltage ON (12 VDC) | 0–4 VDC |
| Input Voltage ON (24 VDC) | 0–6 VDC |
| Input Voltage OFF (12 VDC) | 6–12 VDC |
| Input Voltage OFF (24 VDC) | 12–24 VDC |
| Input Impedance | 3.3 kΩ |
| Output Current (per circuit) | Max 0.5 A steady-state, 4 A inrush (≤10 ms) |
| Total Block Output Current | Max 16 A |
| Output OFF Leakage Current | ≤10 µA |
| Output Turn-On Delay | ≤0.5 ms |
| Heat Dissipation | 11 W (min, 8 inputs) to 18 W (max, 32 outputs @0.5 A) |
| Isolation | 850 V block-to-block |
| Operating Temperature | 0–60 °C |
| Storage Temperature | -40–+100 °C |
| Humidity | 5%–95% non-condensing |
| Vibration Resistance | 5–200 Hz, 0.2″ displacement or 1G |
| Power Supply Dropout Time | 4 ms @12 V, 20 ms @24 V |
| Input Processing Time | 1.4 ms + configurable filter (1–100 ms) |
| Dimensions (H x W x D) | 224.4 x 88.9 x 100 mm |
| Weight | 1.4 kg |
FAQ
FAQ
Q1: How many I/O circuits does the module support?
A1: The IC660BRD025 provides 32 configurable discrete I/O circuits, each independently settable as input, output, or output with feedback.
Q2: What is the operating voltage range?
A2: The module operates at 10–30 VDC (12/24V) or 4.9–5.3 VDC (5V TTL compatible, sink mode only).
Q3: What is the maximum output current per circuit?
A3: Each output supports up to 0.5 A steady-state and 4 A inrush (up to 10 ms).
Q4: Does the module include short circuit or overcurrent protection?
A4: Yes, each output has resettable short circuit and overcurrent protection. If exceeded, the circuit shuts down and signals a fault.
Q5: What temperature range can the module operate in?
A5: The operating temperature range is 0°C to 60°C, and the storage range is -40°C to 100°C.
Q6: What are the dimensions and weight of the module?
A6: The module measures 224.4 x 88.9 x 100 mm and weighs 1.4 kg.
Q7: How is the I/O type configured?
A7: I/O types are configured using a hand-held monitor or by sending a configuration datagram from the host.
Q8: What redundancy modes are supported?
A8: The module supports none, standby redundancy, duplex redundancy, and GMR redundancy modes.
