Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC660ELB912J |

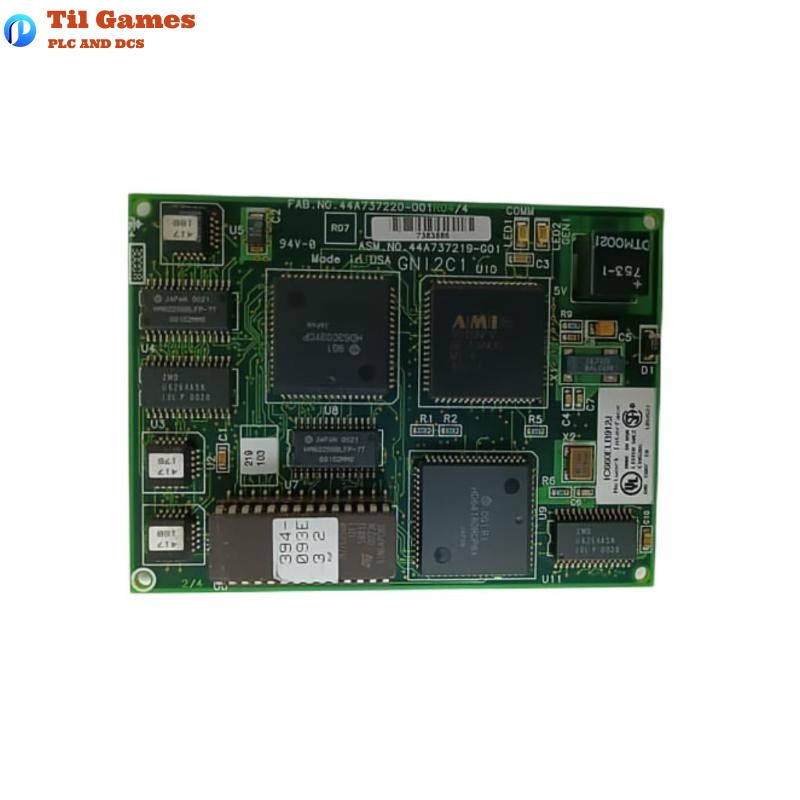

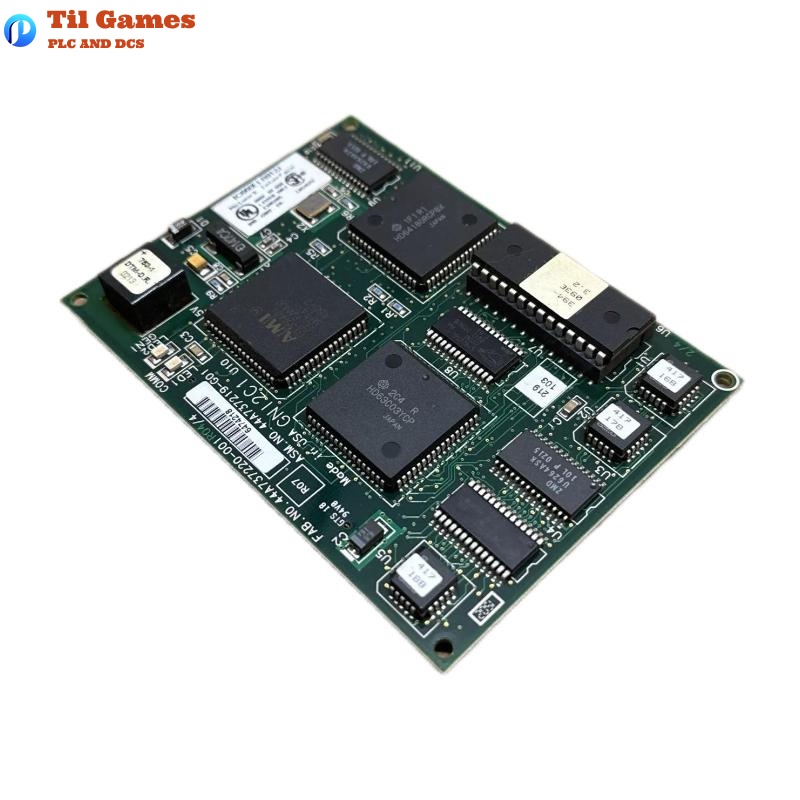

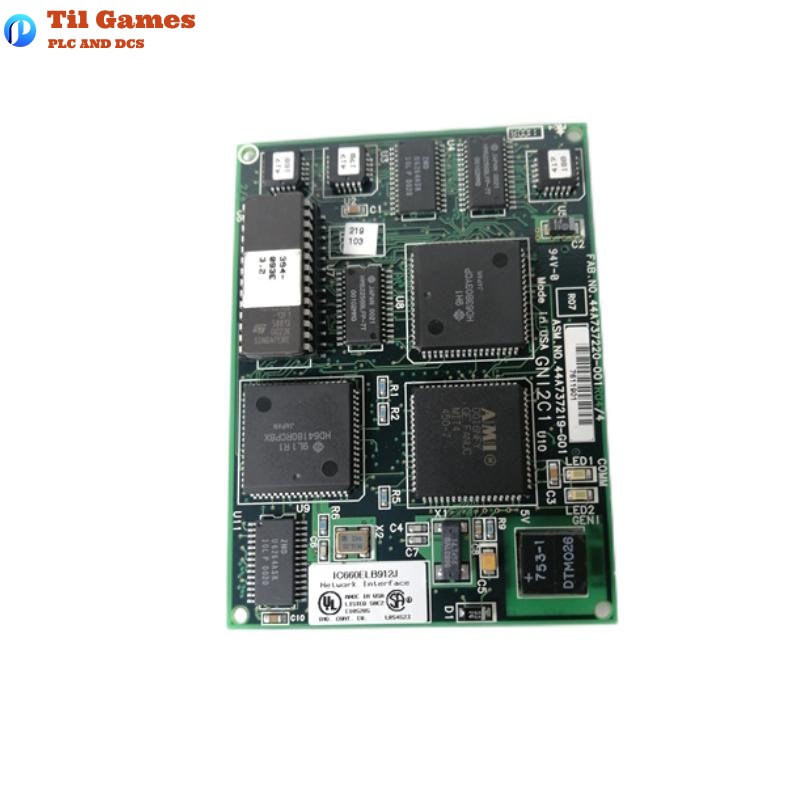

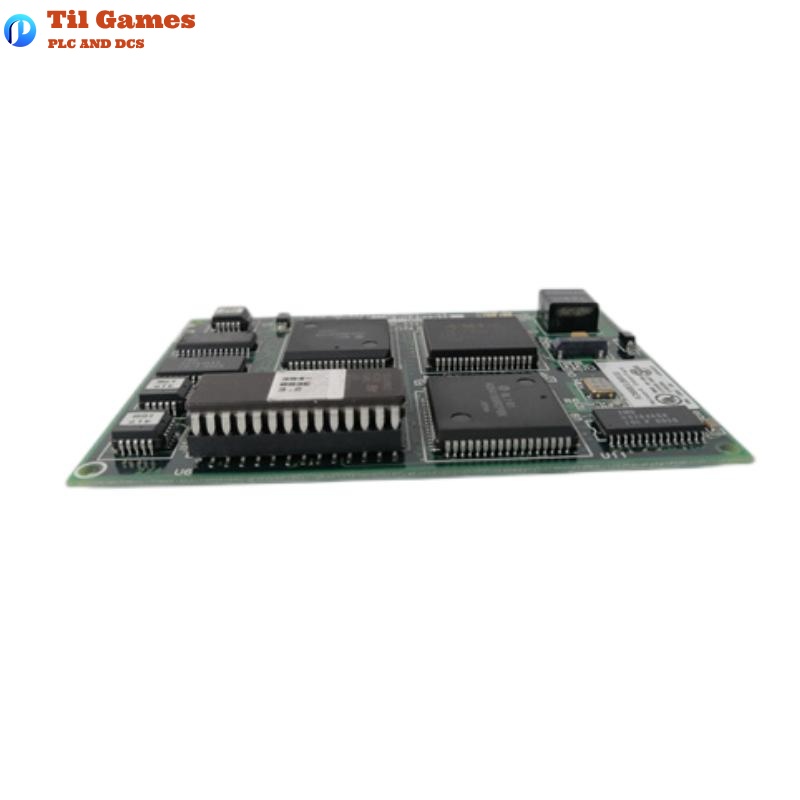

| Product Type | Micro Genius Network Interface Board |
| Power Supply | +5V DC ±10% |
| Power Consumption (Active) | 470 mA (bus active) |
| Power Consumption (Idle) | 230 mA (idle) |
| Inrush Current | 420 mA, 300 µs |
| Bus Drive Capability | 4 LS TTL loads per output line |
| Bus Loading | 1 LS TTL load per input line |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Altitude (Operating) | Up to 10,000 feet |
| Altitude (Storage) | Up to 40,000 feet |
| Shock Resistance | 15 G, 10 ms, MIL–STD 810C, Method 516.2 |
| Vibration | 0.2 inch displacement (5–10 Hz), 1 G (10–200 Hz) |
| Dimensions (L x W x H) | 266 x 302 x 33 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the IC660ELB912J µGENI board?
A1: It acts as a Genius I/O bus controller, allowing a host CPU to communicate with Genius I/O devices over a LAN.
Q2: What kind of CPU is compatible with the µGENI board?
A2: Any CPU capable of reading and writing to the µGENI Shared RAM interface can be used.
Q3: How is the µGENI board connected to a host system?
A3: Through a 50-pin and a 10-pin connector that interface to the motherboard.
Q4: What is the default baud rate of the µGENI board?
A4: The default baud rate is 153.6 Kbps (standard).
Q5: Can the output to the bus be disabled at startup?
A5: Yes, the output can be disabled by setting the appropriate Genius setup signal.
Q6: What is the maximum number of devices supported on the Genius bus?
A6: Up to 32 devices including the µGENI controller.
Q7: What kind of data can be exchanged using the µGENI board?
A7: Input/output data, global data, and directed control data.
Q8: How are faults indicated on the µGENI board?
A8: Via the COMM OK and BOARD OK LEDs; also reported in the Shared RAM status tables.
