Technical Specifications
| Parameter | Description |
|---|---|

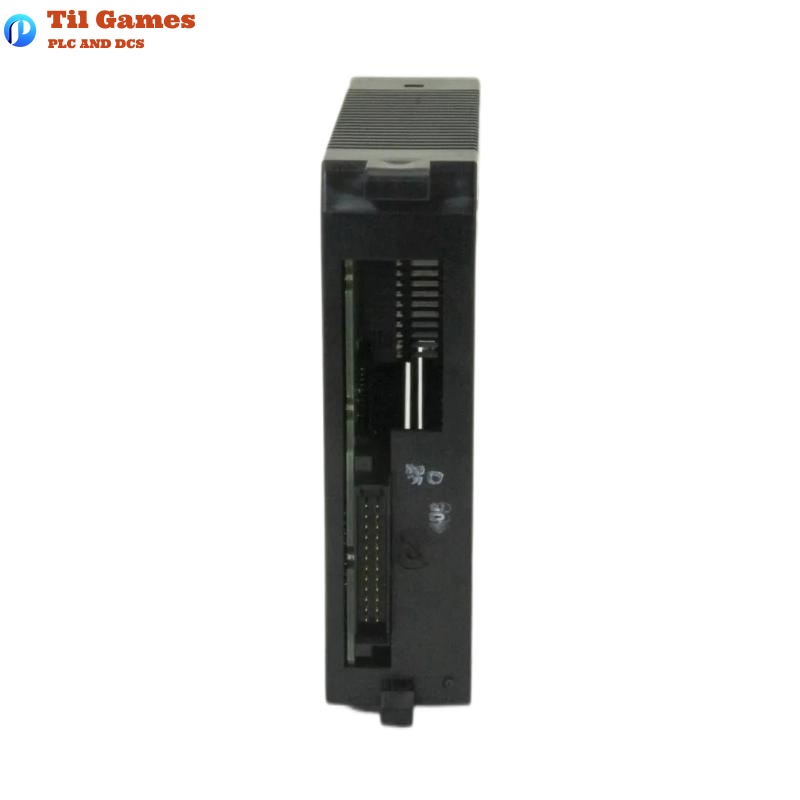

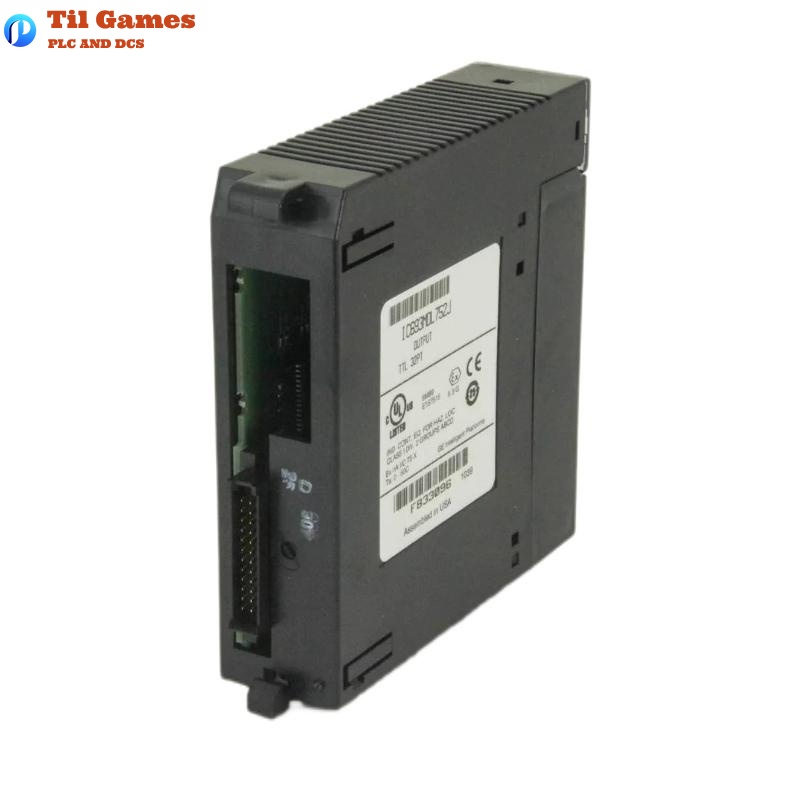

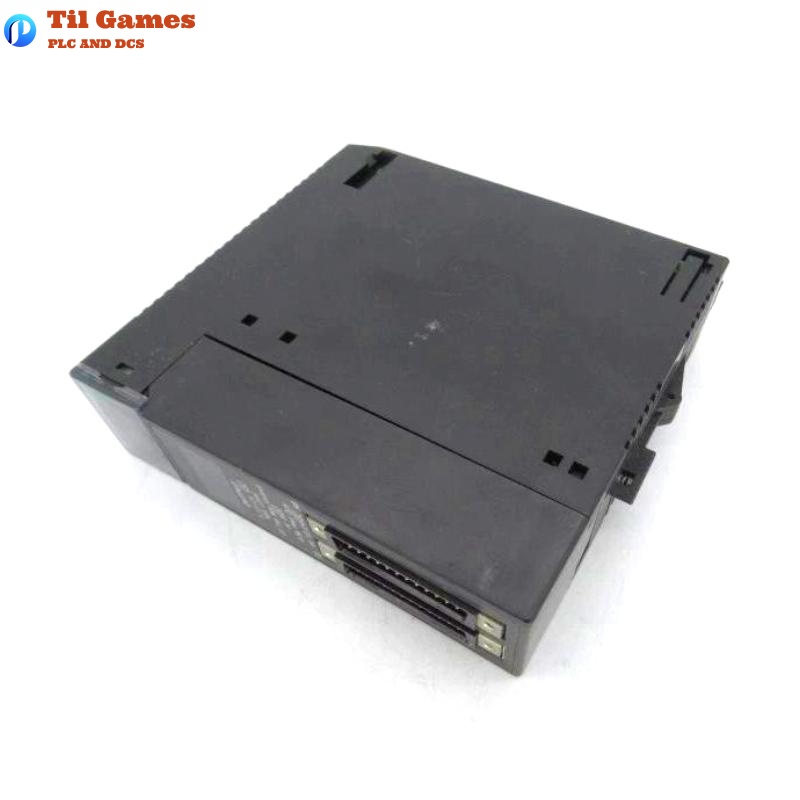

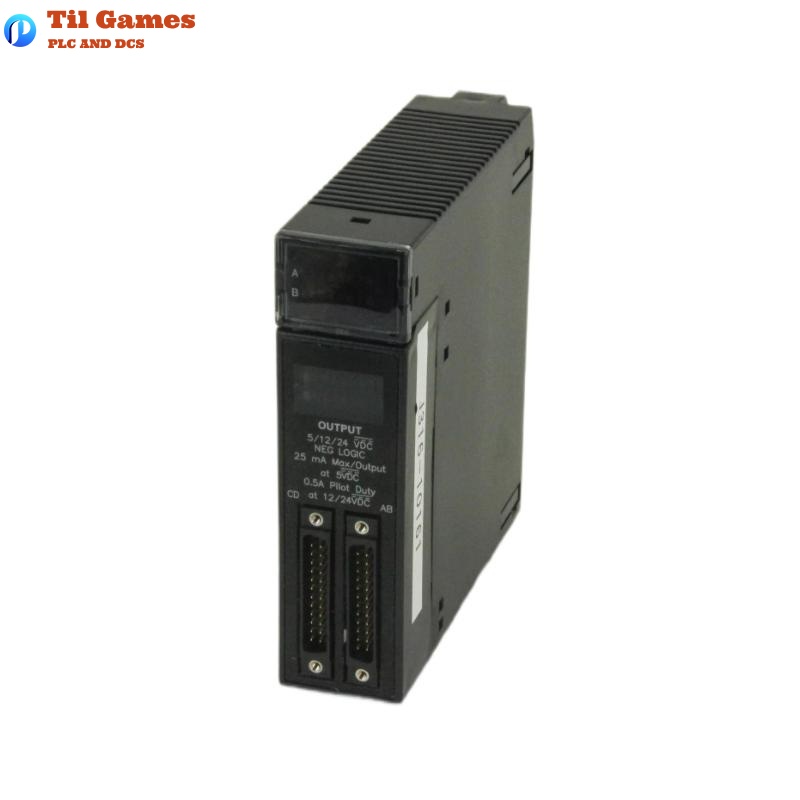

| Product Model | IC693MDL752 |
| Module Type | Discrete Output Module |
| Function | Outputs DC voltage to external devices |
| Output Type | Negative Logic |
| Rated Voltage | 24/48 VDC |
| Voltage Range | 20 to 60 VDC |
| Output Points | 32 (4 groups of 8 isolated outputs) |
| Maximum Output Current | 0.5 A per point / 2 A per group |
| Inrush Current | 10 A per point for one cycle (20 ms) |
| Output Leakage | ≤1 mA |
| Output Voltage Drop | ≤1 V (2 Ω equivalent resistance) |
| Isolation (Output-Backplane) | 1500 VAC RMS |
| Isolation (Between Outputs) | 500 VAC RMS |
| Turn-On Response Time | ≤1 ms |
| Turn-Off Response Time | ≤1 ms |
| Power Supply Requirement | 0.25 A from 5V bus |
| Dimensions | 150 × 100 × 70 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What kind of devices can IC693MDL752 drive?
A1: It can drive relays, solenoids, indicator lamps, and other low-power DC devices requiring 24 to 48 VDC.
Q2: Is the module output isolated?
A2: Yes, each group of 8 outputs is isolated from the others and from the backplane.
Q3: What is the logic type of the outputs?
A3: The IC693MDL752 provides negative logic outputs.
Q4: Can this module handle inductive loads?
A4: Yes, but external protection like flyback diodes is recommended for inductive loads.
Q5: What is the recommended wire size for output terminals?
A5: Typically, 18 to 22 AWG wires are suitable for standard terminal blocks.
Q6: How is output overload protection implemented?
A6: The module does not have built-in overload protection; external fuses are recommended.
Q7: Can the module be hot-swapped?
A7: No, Series 90-30 modules are not hot-swappable and must be installed with power off.
Q8: What diagnostic features are available?
A8: Diagnostics are available via the PLC CPU but the module itself does not have onboard indicators.
