Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

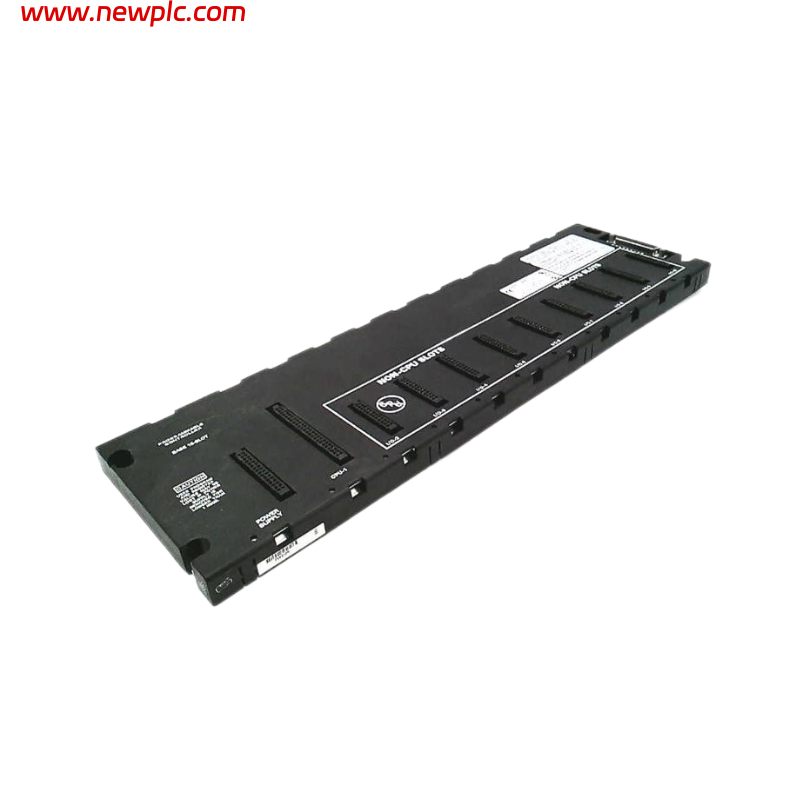

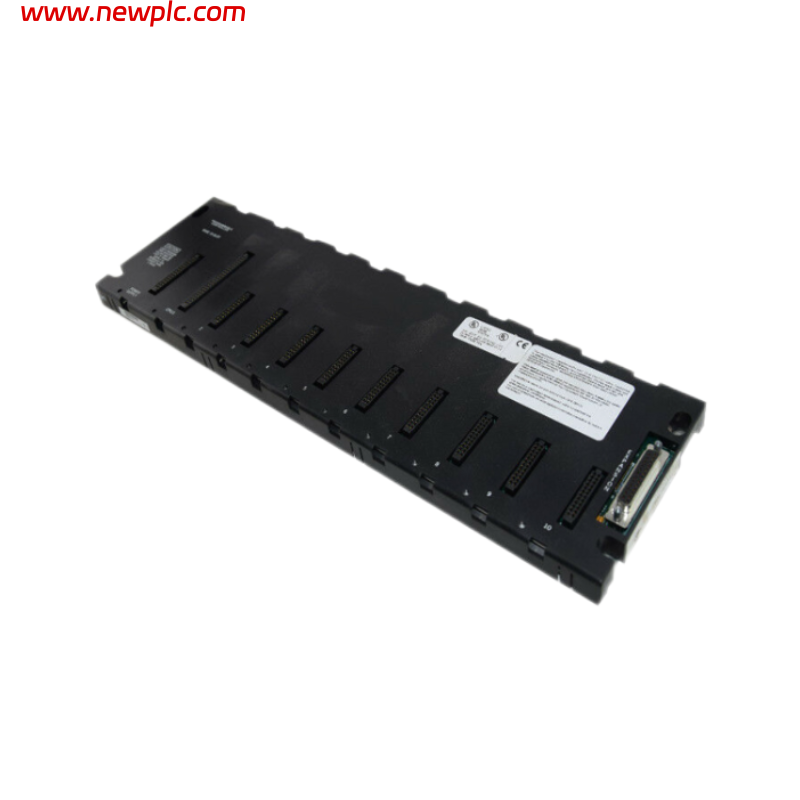

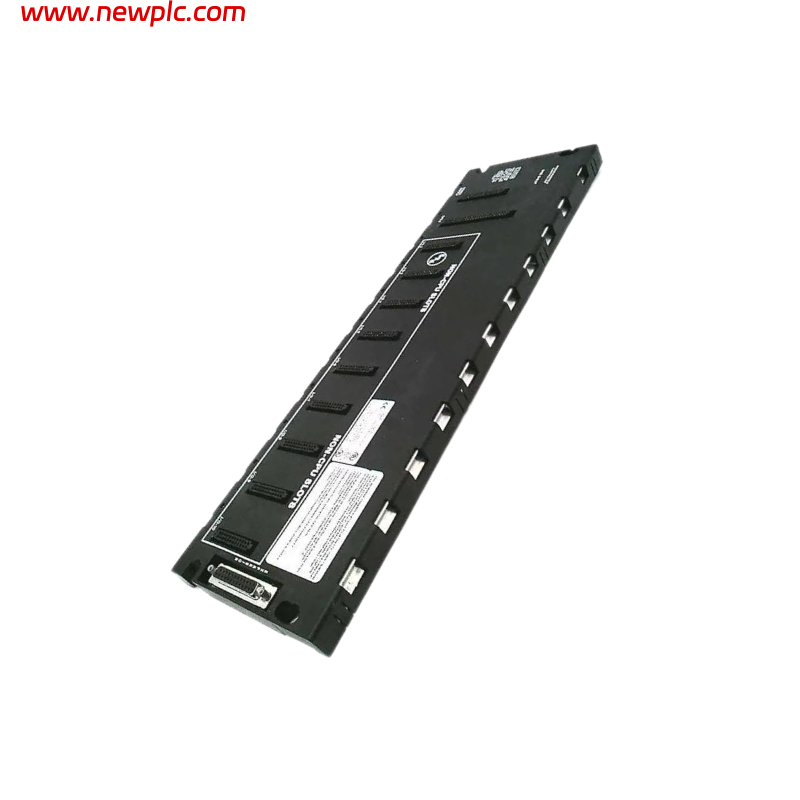

| Product Model | IC693CHS391J |
| Product Type | CPU Baseplate / Main Baseplate |
| Series | Series 90-30 |
| Function | Provides the mounting rack, backplane communication, and power distribution structure for Series 90-30 PLC CPUs and I/O modules |
| Baseplate Type | CPU Baseplate (Main Baseplate with CPU Slot) |
| Number of Slots | 10 slots total |
| CPU Slot | 1 dedicated CPU slot |
| I/O Slots | 9 I/O / Option module slots |
| Power Supply Slot | 1 dedicated power supply slot (leftmost position) |
| Expansion Connector | 25-pin female D-sub connector |
| Expansion Capability | Supports connection to expansion or remote baseplates |
| Maximum Baseplates Supported | Up to 7 baseplates depending on CPU type |
| Supported CPUs | GE Fanuc Series 90-30 modular CPUs (CPU311, CPU313, CPU323, CPU331, CPU340, CPU341, CPU350, etc.) |
| Communication Interface | Backplane bus communication |
| Internal Power Consumption | 420 mA @ 5 VDC |
| Backplane Voltage | 5 VDC |
| Mounting Method | Rack-mounted installation |
| Cable Distance | Expansion baseplate: up to approximately 50 ft (15 m); Remote baseplate: up to approximately 700 ft (213 m) depending on system configuration |
| Configuration | DIP switch selectable for baseplate identification |
| Compatible Modules | Series 90-30 CPU modules, discrete I/O modules, analog modules, communication modules, and option modules |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (W × H × D) | Approx. 17.44 × 5.12 × 5.59 in. (443 × 130 × 142 mm) |
| Weight | Approx. 3 kg (6.6 lb) |
| Hardware Revision | J |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693CHS391J used for?
The IC693CHS391J is used as the main CPU rack in GE Fanuc Series 90-30 PLC systems. It provides the physical mounting structure and electrical backplane connections for CPUs, power supplies, and I/O modules.
Q2: How many modules can be installed on the IC693CHS391J?
The baseplate provides 10 slots, including one CPU slot, one power supply slot, and nine slots for I/O or option modules.
Q3: Which CPUs are compatible with the IC693CHS391J?
The IC693CHS391J supports GE Fanuc Series 90-30 modular CPUs, including CPU331, CPU340, CPU341, and other compatible Series 90-30 CPU modules.
Q4: Can the IC693CHS391J connect to expansion racks?
Yes. The baseplate includes a 25-pin female D-sub expansion connector that allows connection to expansion or remote baseplates for larger PLC configurations.
Q5: What power supply is required for the IC693CHS391J?
The IC693CHS391J does not contain an integrated power supply. A compatible GE Fanuc Series 90-30 power supply module must be installed in the dedicated leftmost power supply slot.
Q6: How much internal power does the IC693CHS391J consume?
The baseplate consumes approximately 420 mA at 5 VDC from the installed power supply system.
Q7: What is the difference between a CPU baseplate and an expansion baseplate?
A CPU baseplate such as the IC693CHS391J contains a dedicated CPU slot and acts as the main PLC rack. Expansion baseplates do not contain CPU slots and are used to increase available I/O capacity.
Q8: What should be checked before replacing an IC693CHS391J?
Before replacement, verify the Series 90-30 CPU type, installed power supply rating, module slot arrangement, expansion rack configuration, DIP switch settings, and all connected field wiring to ensure the PLC system restarts correctly.
