Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC693CMM321-JK |
| Product Type | Ethernet Interface Module |
| Series | Series 90-30 PLC |
| Function | Provides Ethernet TCP/IP communication capability for Series 90-30 PLC systems |
| Communication Interface | Ethernet LAN Interface |
| Network Protocol | TCP/IP, SRTP (Service Request Transport Protocol), Modbus/TCP (supported by later firmware) |
| Ethernet Connection | AAUI interface with external transceiver |
| Ethernet Speed | 10 Mbps Ethernet |
| Client Capability | Supports PLC-initiated communication with other Ethernet devices through COMMREQ function blocks |
| Server Capability | Responds to communication requests from host computers and other PLC systems |
| Maximum Server Connections | 16 simultaneous connections |
| Serial Interface | RS-232 Station Manager Port |
| Diagnostic Functions | Ethernet diagnostics, Station Manager functions, network status monitoring |

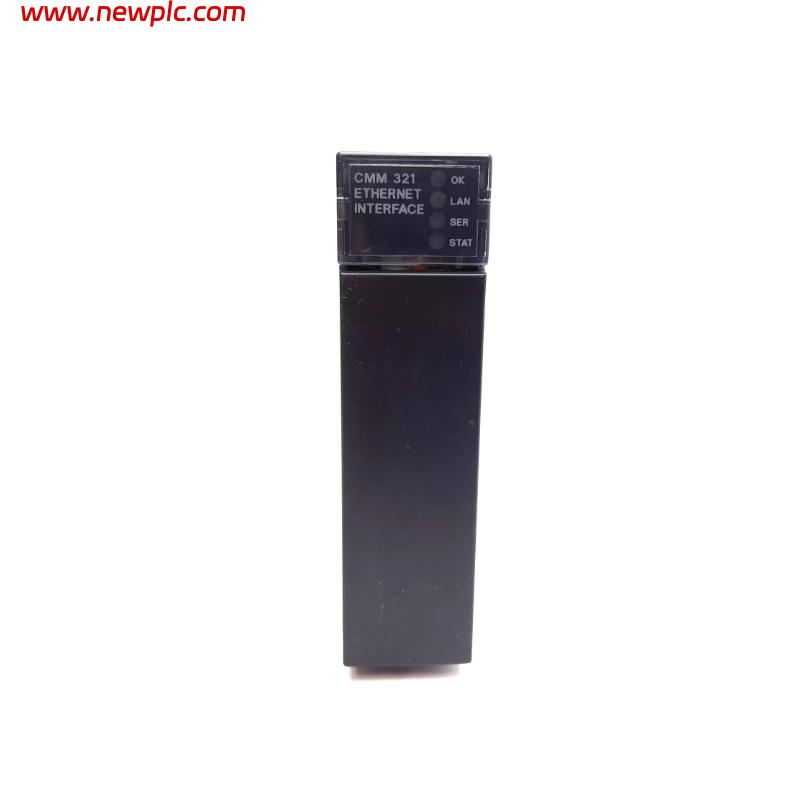

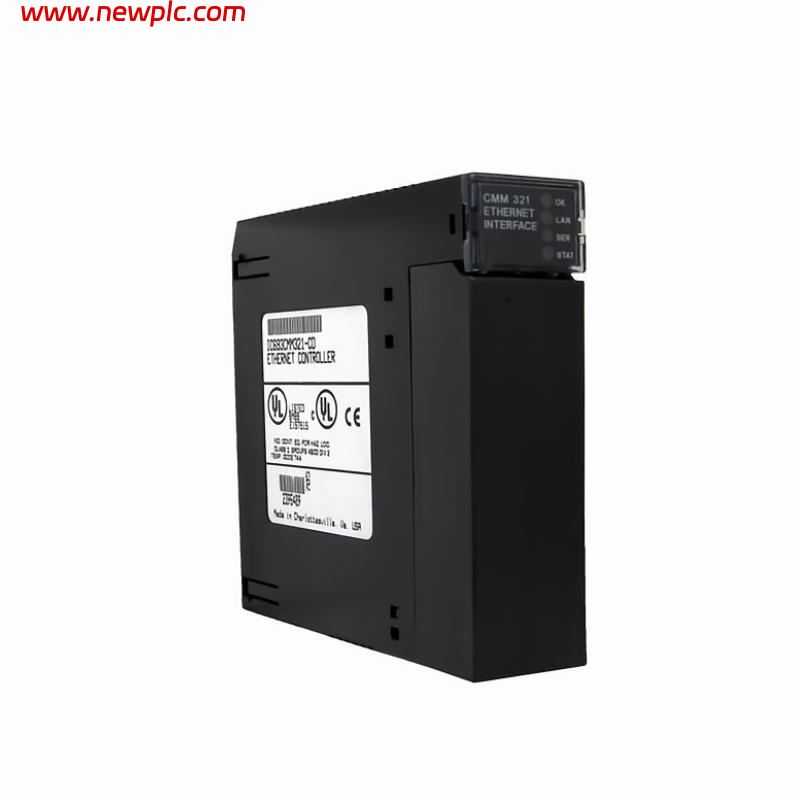

| LED Indicators | OK, LAN, FDX, STAT |
| Installation Location | Series 90-30 PLC baseplate |
| Module Width | Single-slot module |
| Compatible CPUs | GE Fanuc Series 90-30 CPUs (CPU firmware requirements depend on application) |
| Programming Software | Proficy Machine Edition / Logic Developer 90-30 |
| Restart Functions | LED test, restart, restart and reload, maintenance utility access |
| Power Consumption | Approx. 1.0 A @ 5 VDC |
| Backplane Power Supply | Powered from Series 90-30 backplane |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 130 × 40 × 125 mm (5.12 × 1.57 × 4.92 in.) |
| Weight | Approx. 0.23 kg (0.50 lb) |
| Hardware Revision | JK |
| Firmware Revision | 3.12 |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693CMM321-JK used for?
The IC693CMM321-JK is used to add Ethernet communication capability to Series 90-30 PLC systems. It enables data exchange between PLCs, engineering computers, HMIs, and industrial control networks.
Q2: What communication protocols does the IC693CMM321-JK support?
The module supports TCP/IP-based Ethernet communication, including GE Fanuc SRTP protocol for PLC communication. Certain firmware versions of the IC693CMM321 family also support Modbus/TCP functions.
Q3: How many devices can communicate with the IC693CMM321-JK at the same time?
The module supports up to 16 simultaneous server connections, allowing multiple external devices such as HMIs, computers, and other PLCs to access PLC data.
Q4: What Ethernet connection method does the IC693CMM321-JK use?
The IC693CMM321-JK connects to Ethernet networks through an AAUI port with an external transceiver and cable. Later revisions of the IC693CMM321 family added direct 10Base-T RJ-45 connectivity.
Q5: Can the IC693CMM321-JK work as both a client and a server?
Yes. As a client, the module can initiate communication with other Ethernet-enabled PLCs through ladder logic COMMREQ instructions. As a server, it responds to requests from external devices.
Q6: What diagnostic functions are available on the IC693CMM321-JK?
The module provides Ethernet diagnostics and Station Manager functions for monitoring communication status, troubleshooting network problems, and maintaining the Ethernet interface.
Q7: What does the “JK” revision indicate?
The “JK” suffix identifies the hardware and firmware revision level of the IC693CMM321 Ethernet Interface module. The JK revision belongs to the earlier revision series before later updates such as JL, KL, KM, and KN.
Q8: What should be checked before replacing an IC693CMM321-JK module?
Before replacement, verify the Series 90-30 PLC compatibility, CPU firmware requirements, Ethernet network configuration, IP parameters, communication protocol settings, and existing PLC project configuration to ensure proper network operation after installation.
