Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

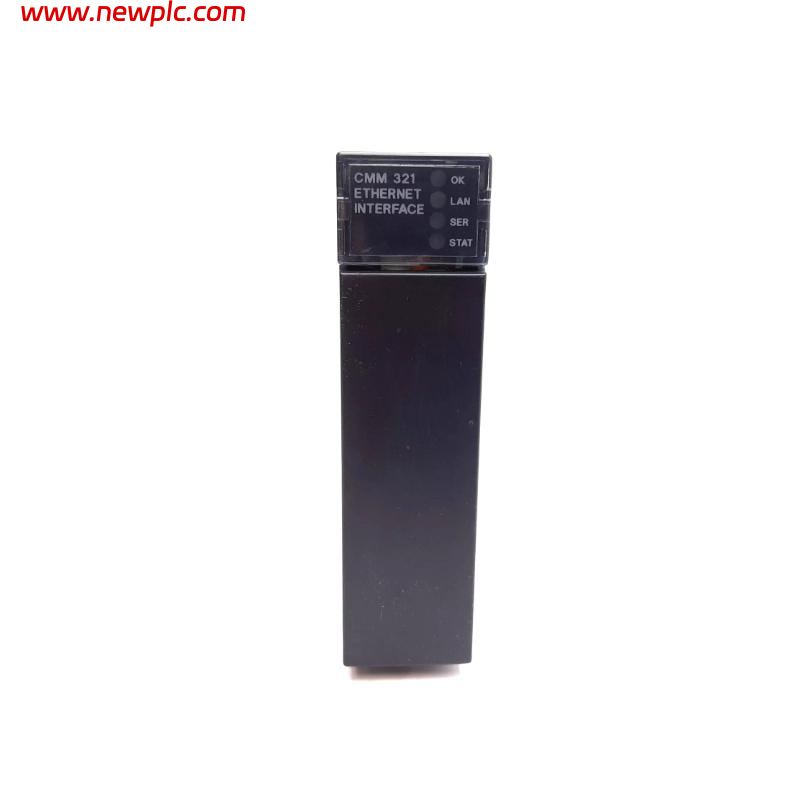

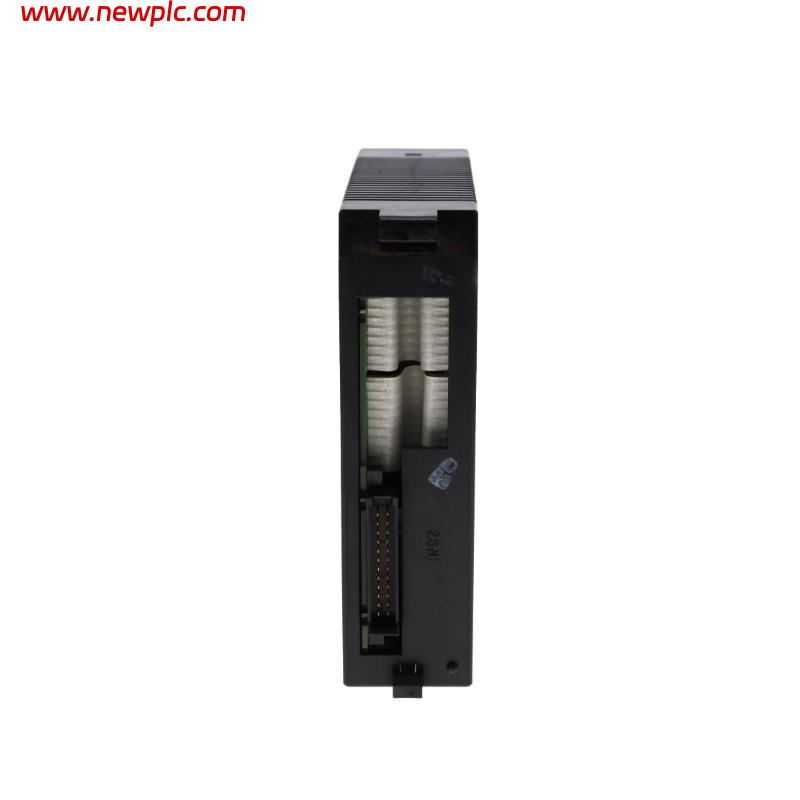

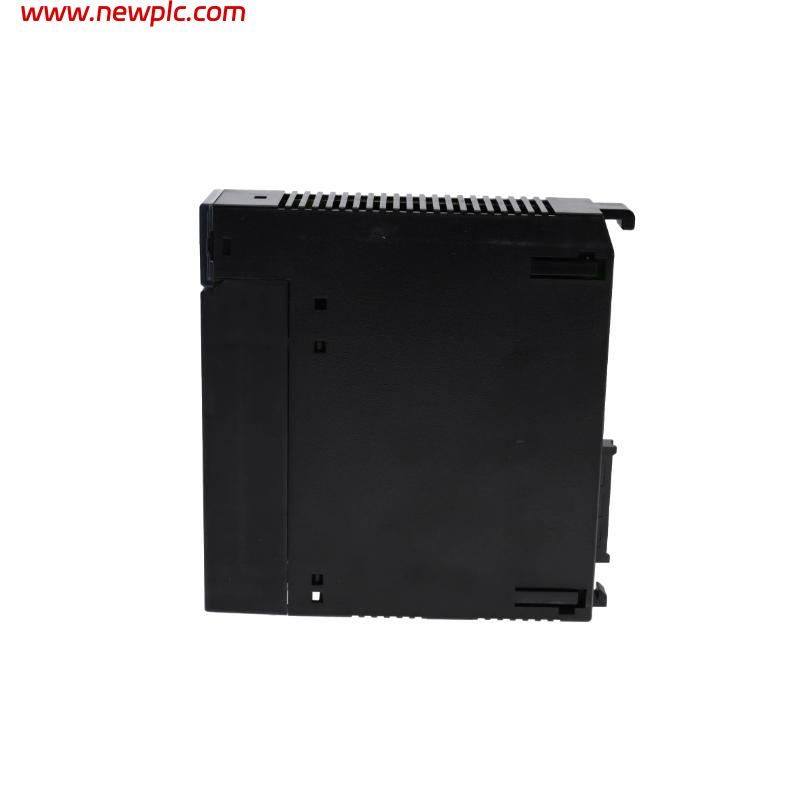

| Product Model | IC693CMM321-KL |
| Product Type | Ethernet Interface Module |
| Series | Series 90-30 PLC |
| Function | Provides Ethernet TCP/IP communication capability for Series 90-30 PLC systems |
| Communication Protocol | TCP/IP Ethernet |
| Network Interface | Ethernet 10Base-T / AAUI interface |
| Ethernet Speed | 10 Mbps |
| Connector Type | RJ-45 Ethernet port (10Base-T) and AAUI port |
| Serial Service Port | RS-232 Station Manager port |
| Communication Mode | Client / Server communication |
| Supported Protocols | SRTP (Service Request Transport Protocol), TCP/IP |
| Maximum Server Connections | Up to 16 simultaneous connections |
| PLC Communication | PLC-to-PLC communication, HMI communication, programming and diagnostic access |
| Programming Software Compatibility | Proficy Machine Edition / Logic Developer 90-30 |
| Diagnostic Functions | Ethernet diagnostics, station manager functions, network status monitoring |
| LED Indicators | OK, LAN, FDX, STAT |
| Installation Location | Series 90-30 baseplate slot |
| Number of Modules per PLC | Up to 2 Ethernet Interface modules per Series 90-30 PLC system |
| Power Consumption | Approx. 1.0 A @ 5 VDC |
| Backplane Supply | Powered from Series 90-30 backplane |
| Compatible Systems | GE Fanuc Series 90-30 PLC |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 130 × 40 × 125 mm (5.12 × 1.57 × 4.92 in.) |
| Weight | Approx. 0.35 kg (0.77 lb) |
| Hardware Revision | KL |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693CMM321-KL used for?
The IC693CMM321-KL is used to add Ethernet communication capability to Series 90-30 PLC systems. It enables data exchange between PLCs, computers, HMIs, SCADA systems, and industrial Ethernet networks.
Q2: What communication protocols does the IC693CMM321-KL support?
The module supports TCP/IP Ethernet communication, including GE Fanuc SRTP protocol for PLC-to-PLC communication, programming access, and HMI connectivity.
Q3: What Ethernet connection interfaces are available on the IC693CMM321-KL?
The module provides Ethernet connectivity through a 10Base-T RJ-45 interface and an AAUI interface that can be used with an external transceiver.
Q4: Can the IC693CMM321-KL communicate with other PLC systems?
Yes. The module can communicate with other Series 90-30 PLCs and compatible control devices over Ethernet. It supports both client communication initiated by the PLC and server communication responding to external requests.
Q5: How many communication connections can the IC693CMM321-KL handle?
The Ethernet interface supports up to 16 simultaneous server connections, allowing multiple devices such as HMIs, engineering stations, and other controllers to access PLC data.
Q6: Where is the IC693CMM321-KL installed?
The module is installed directly into a Series 90-30 PLC baseplate slot and receives power through the PLC backplane.
Q7: What does the “KL” revision indicate?
The “KL” suffix identifies the hardware revision level of the IC693CMM321 Ethernet Interface module. It belongs to the later revision series of the CMM321 product family, maintaining compatibility with Series 90-30 Ethernet communication applications.
Q8: What should be checked before replacing an IC693CMM321-KL module?
Before replacement, verify the Series 90-30 PLC compatibility, Ethernet network settings, IP configuration, communication protocol parameters, PLC project configuration, and firmware compatibility to ensure proper network operation after installation.
