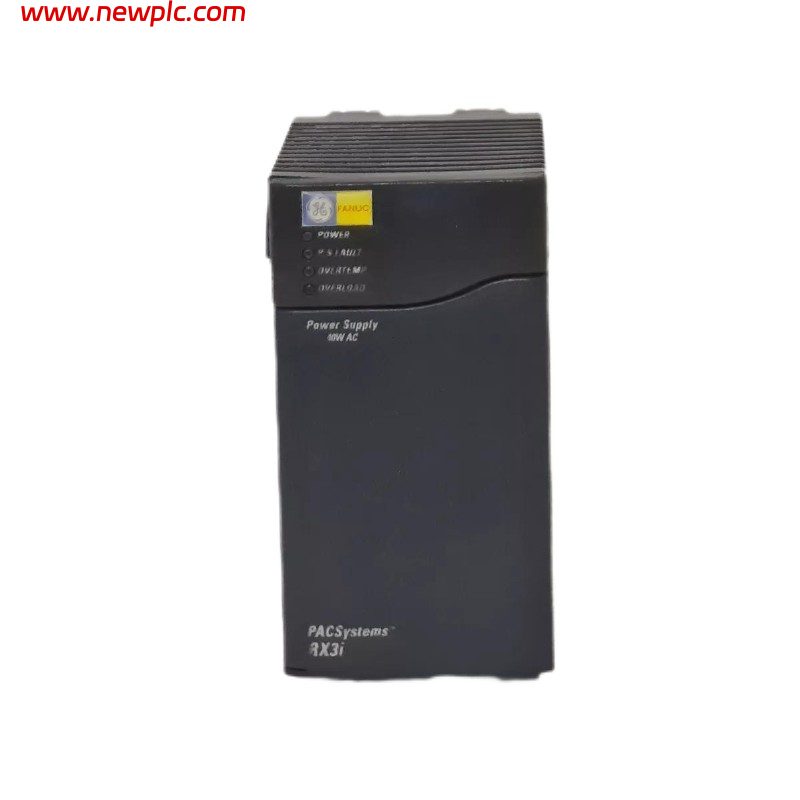

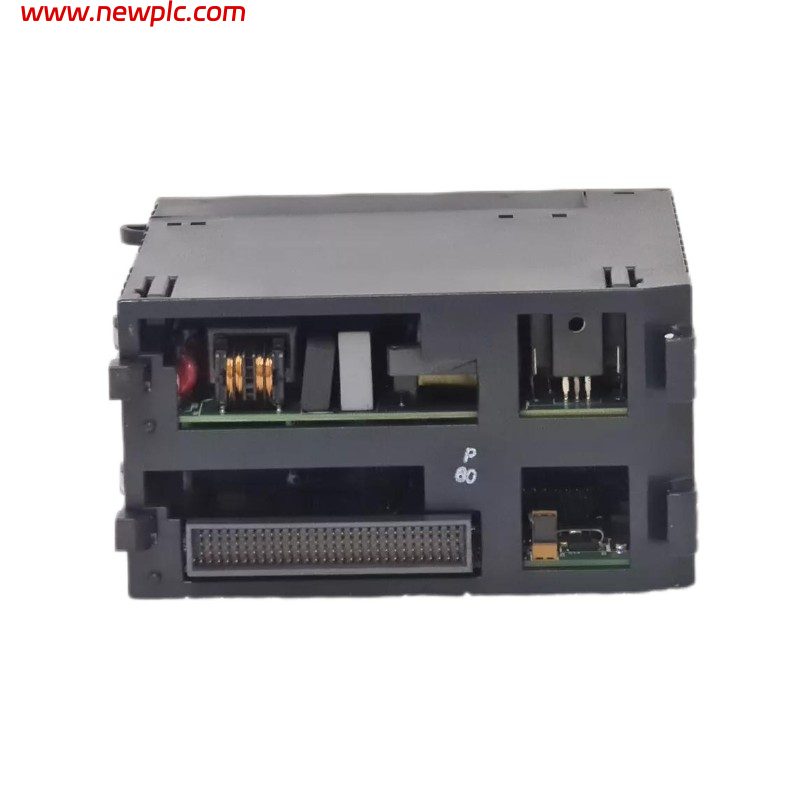

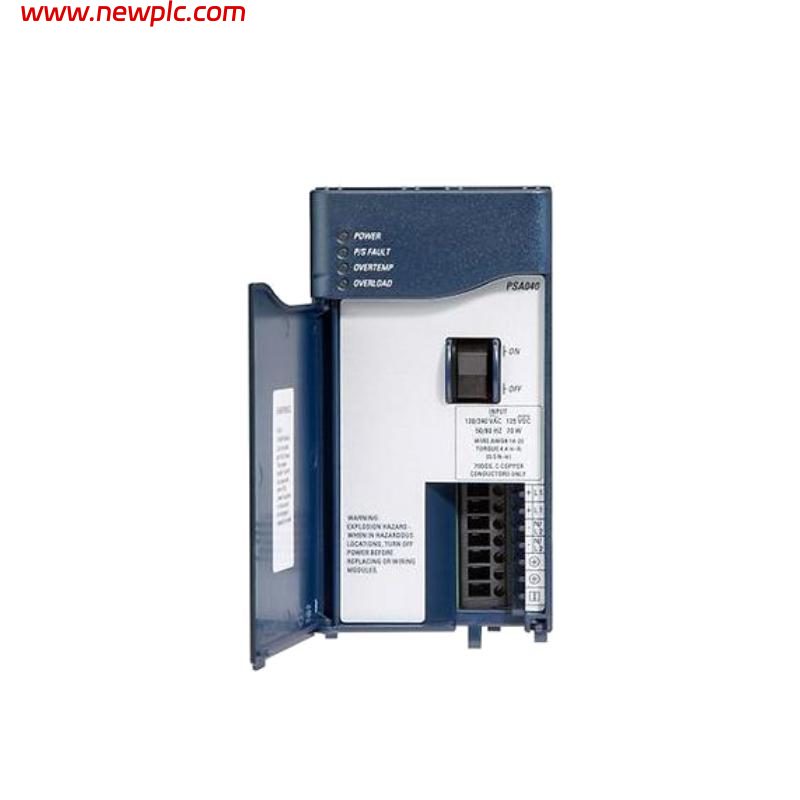

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC695PSA040J |
| Product Type | Universal AC/DC Power Supply Module |
| Series | PACSystems RX3i |
| Function | Provides power for RX3i Universal Backplane modules and external relay circuits |
| Input Voltage | 120/240 VAC or 125 VDC nominal |
| AC Input Range | 85–264 VAC |
| DC Input Range | 100–300 VDC |
| Input Frequency | 47–63 Hz (AC input) |
| Maximum Input Power | 70 W |
| Rated Output Power | 40 W maximum total |
| Output Voltage 1 | +5.1 VDC |
| Output Current 1 | 0–6 A |
| Output Power 1 | 30 W maximum |
| Output Voltage 2 | +3.3 VDC |
| Output Current 2 | 0–9 A |
| Output Power 2 | 30 W maximum |
| Output Voltage 3 | +24 VDC relay output |
| Output Current 3 | 0–1.6 A |
| Ride-Through Time | 20 ms minimum |
| Inrush Current | 4 A maximum for 250 ms |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute (input to backplane) |
| Ripple | 150 mV maximum (all outputs) |
| Noise | 150 mV maximum (all outputs) |
| Protection Features | Overcurrent protection, fuse protection |
| LED Indicators | Power supply status LEDs |
| Terminal Wiring | Accepts 14–22 AWG wire |
| Maximum Terminal Current | 6 A |
| Compatible Systems | GE Fanuc / Emerson PACSystems RX3i |
| Backplane Compatibility | RX3i Universal Backplane only |
| Maximum Power Supplies per Rack | Up to 4 power supplies |
| Mounting Position | RX3i Universal Backplane power supply slot |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 135 × 51 × 120 mm (5.31 × 2.01 × 4.72 in.) |
| Weight | Approx. 0.54 kg (1.19 lb) |
| Hardware Revision | J |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC695PSA040J used for?
The IC695PSA040J is a universal power supply module used in PACSystems RX3i PLC systems. It provides regulated power to RX3i modules installed on the Universal Backplane and supplies 24 VDC relay power for supported output circuits.
Q2: What input voltage does the IC695PSA040J support?
The module supports a wide input range of 85–264 VAC or 100–300 VDC, allowing use in different industrial power environments without changing the power supply module.
Q3: What output voltages are provided by the IC695PSA040J?
The power supply provides three outputs: +5.1 VDC, +3.3 VDC, and +24 VDC relay output. The total rated output power is 40 W maximum.
Q4: Can the IC695PSA040J be used with other RX3i power supplies?
No. The IC695PSA040J is designed for RX3i Universal Backplanes and should not be mixed with incompatible RX3i power supply models on the same backplane.
Q5: How many IC695PSA040J power supplies can be installed in one RX3i rack?
Up to four IC695PSA040J power supplies can be used in an RX3i system when the application requires additional power capacity.
Q6: What protection features does the IC695PSA040J include?
The module includes protection functions such as overcurrent protection and fuse protection to help protect the power supply and connected RX3i modules from abnormal operating conditions.
Q7: What does the “J” revision indicate?
The “J” suffix identifies the hardware revision of the IC695PSA040 power supply module. Revision changes generally represent manufacturing improvements while maintaining compatibility with RX3i systems.
Q8: What should be checked before replacing an IC695PSA040J module?
Before replacement, verify the RX3i Universal Backplane compatibility, input voltage range, terminal wiring, total rack power requirements, module loading, and system configuration to ensure reliable operation after installation.
