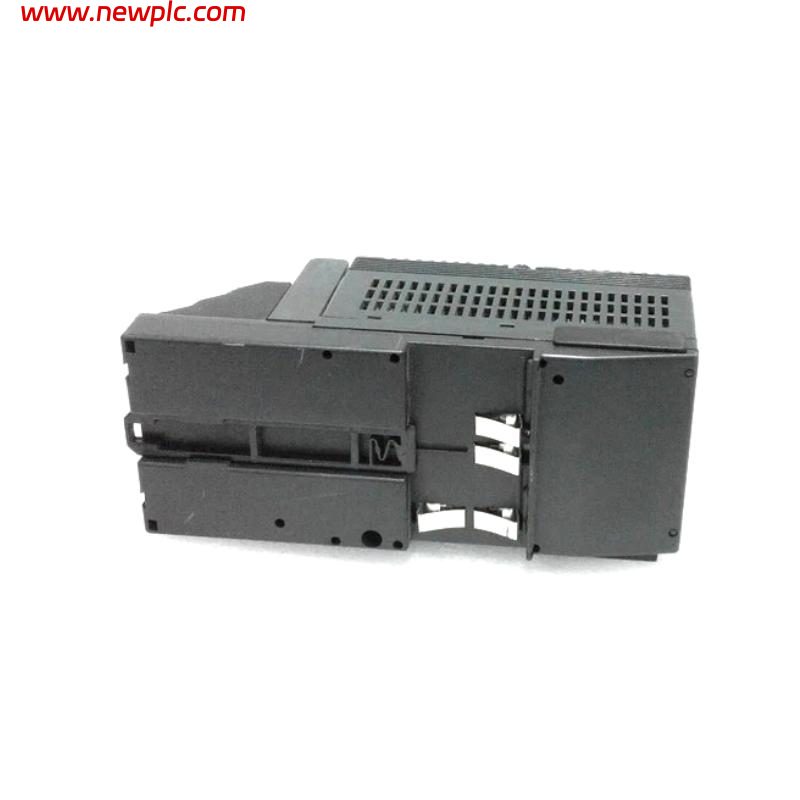

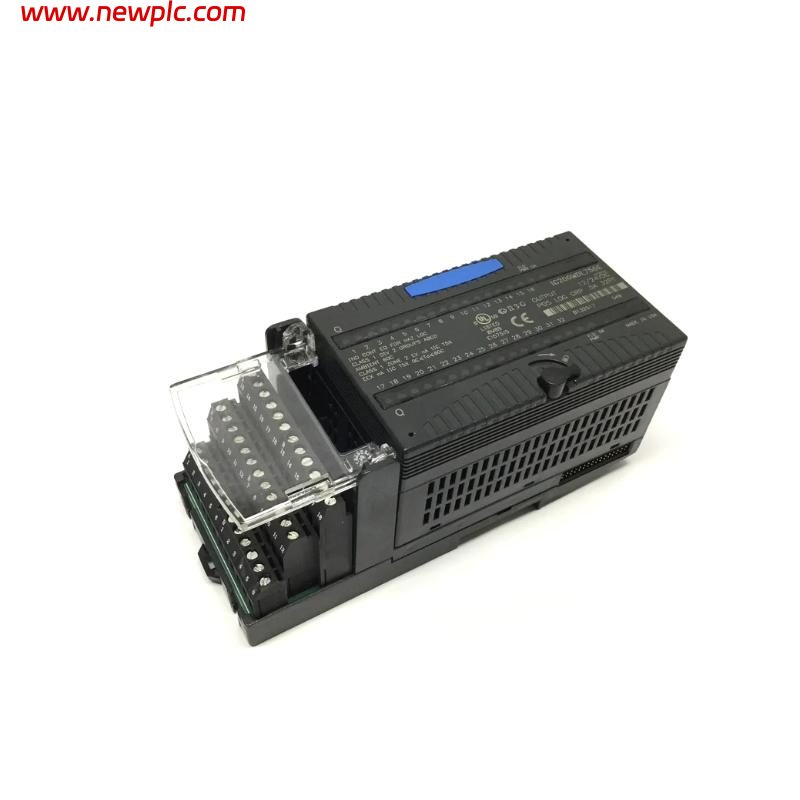

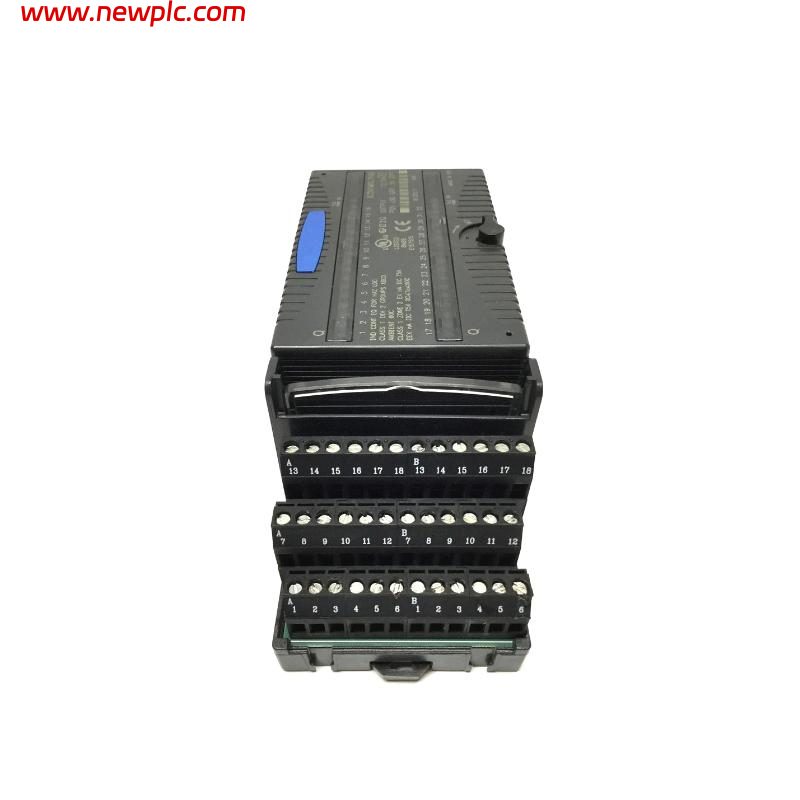

GE IC200MDL750G Discrete DC Output Module

FAQ

Q1: What is the GE Fanuc IC200MDL750G used for?
The IC200MDL750G is a VersaMax discrete output module used to control 12/24 VDC field devices. It converts PLC output commands into electrical signals for actuators, relays, solenoid valves, and other industrial loads.

Q2: How many output channels does the IC200MDL750G provide?
The module provides 32 transistor output points, arranged as two groups of 16 outputs. Each output channel can be independently controlled by the PLC program.

Q3: What voltage and current ratings does the IC200MDL750G support?
The module supports 12/24 VDC operation with an output voltage range of 10.2–30 VDC. Each output point can handle up to 0.5 A of current.

Q4: Does the IC200MDL750G require an external power supply?
Yes. The module receives internal operating power from the VersaMax backplane, while an external 12/24 VDC field power supply is required to drive connected output devices.

Q5: What type of output technology does the IC200MDL750G use?
The IC200MDL750G uses positive logic transistor outputs, also known as sourcing outputs. When activated, the module supplies positive DC voltage to the connected load.

Q6: What diagnostic indicators are available on the IC200MDL750G?
The module includes individual channel LEDs to show output status, an OK LED for module power status, and an FLD PWR LED to indicate the presence of external field power.

Q7: What does the “G” revision indicate?
The “G” suffix identifies the hardware revision of the IC200MDL750 output module. Different revision levels represent production updates while maintaining compatibility with VersaMax systems.

Q8: What should be checked before replacing an IC200MDL750G module?
Before replacement, verify the VersaMax carrier compatibility, 12/24 VDC field power supply, output load current requirements, wiring connections, suppression components for inductive loads, and PLC hardware configuration to ensure proper operation after installation.
