Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

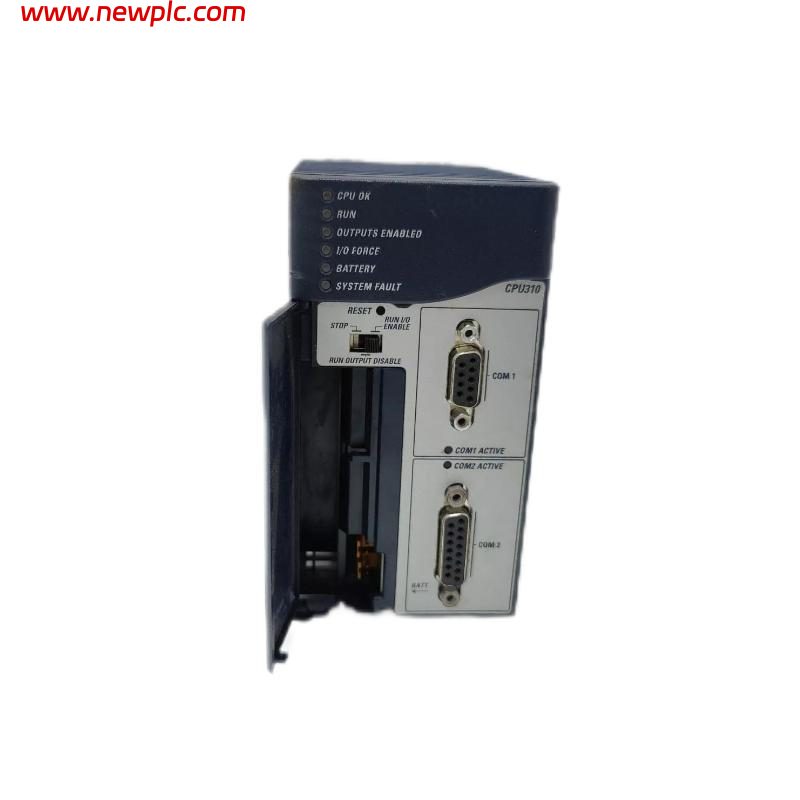

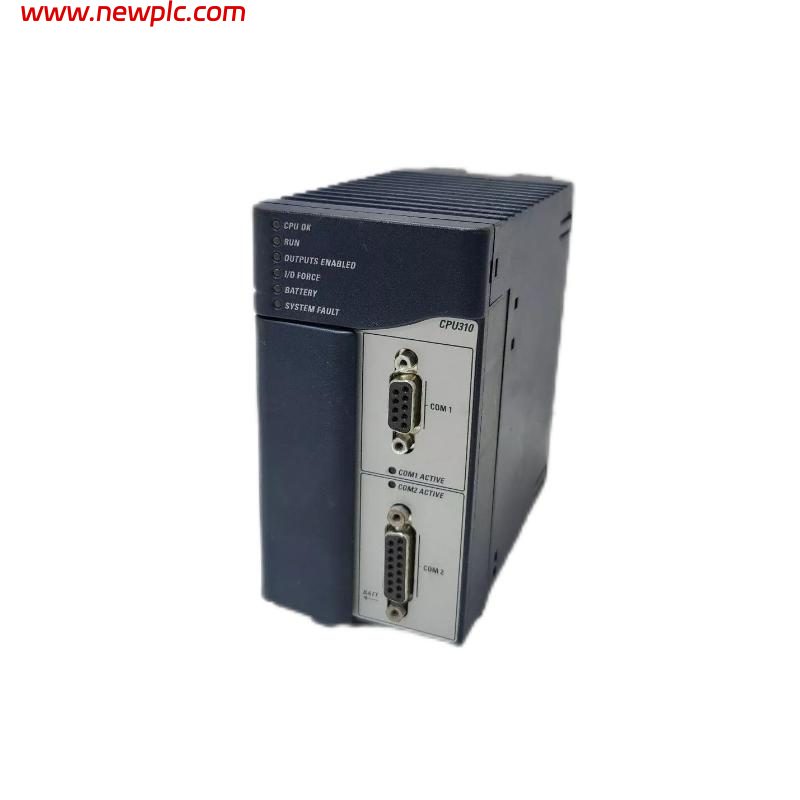

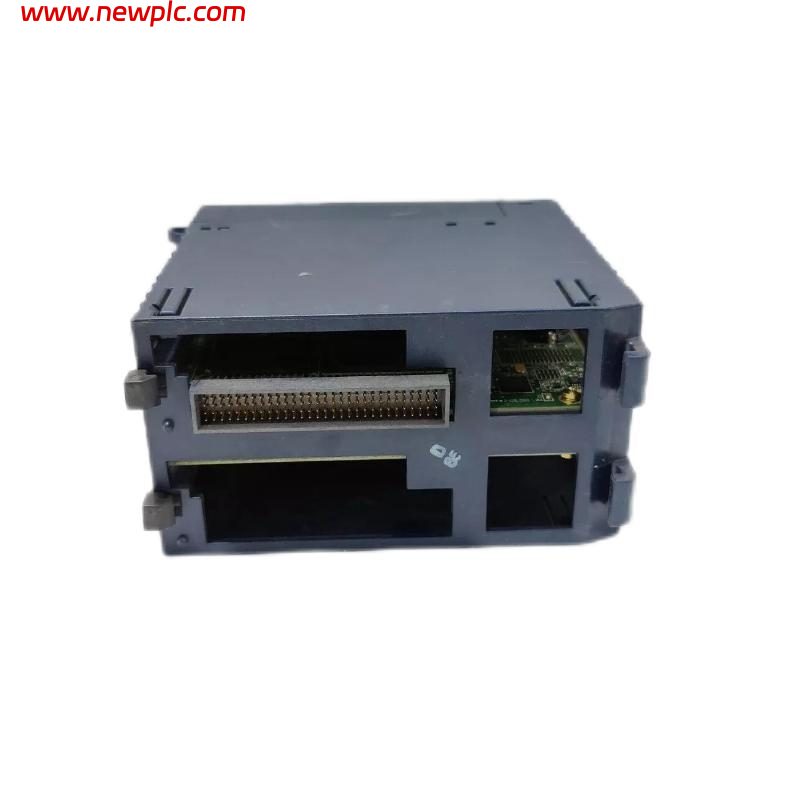

| Product Model | IC695CMU310-CJ |
| Product Type | Max-ON Hot Standby Redundancy CPU Module |
| Series | PACSystems RX3i |
| Function | Provides high-availability CPU redundancy control for critical automation applications using dual RX3i systems |
| CPU Type | Celeron-based PACSystems RX3i CPU |
| Application | Hot standby redundancy, fault-tolerant control systems |
| Firmware Revision | 5.50 |
| Revision Features | Supports Run-mode Store of EGD and adds support for LREAL data type |
| Processor Speed | 300 MHz |
| User Memory | 10 MB battery-backed RAM |
| Non-Volatile Flash Memory | 10 MB flash user memory |
| Program Storage | Up to 10 MB user program storage |
| Floating Point Support | Yes |
| Boolean Execution Speed | Approx. 0.195 ms per 1000 Boolean instructions |
| Maximum Program Blocks | Up to 512 blocks |
| Communication Ports | 2 isolated serial ports |
| Serial Interfaces | RS-232 / RS-485 |
| Supported Protocols | SNP, Serial I/O, Modbus RTU Slave |
| Redundancy Communication | Dedicated Ethernet LAN through PACSystems redundancy configuration |
| Failover Method | Hot standby CPU synchronization and automatic switchover |
| Backplane Compatibility | RX3i Universal Backplane and Series 90-30 expansion backplanes |
| Slot Requirement | 1 slot |
| Power Consumption | 1.0 A @ +5 VDC; 1.25 A @ +3.3 VDC |
| Battery Support | IC695ACC302 Smart Battery, IC693ACC302, IC698ACC701 |
| Programming Software | Proficy Machine Edition |
| Diagnostics | CPU diagnostics, redundancy status monitoring, fault reporting |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 135 × 51 × 120 mm (5.31 × 2.01 × 4.72 in.) |
| Weight | Approx. 0.43 kg (0.94 lb) |
| Hardware Revision | CJ |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC695CMU310-CJ used for?
The IC695CMU310-CJ is a high-availability CPU module used in PACSystems RX3i redundant control systems. It allows two RX3i controllers to operate in a hot standby configuration, providing improved system availability for critical industrial processes.
Q2: What type of applications use the IC695CMU310-CJ?
The module is commonly used in applications requiring continuous operation, such as power generation, process control, fuel handling systems, and other automation systems where controller downtime must be minimized.
Q3: What memory capacity does the IC695CMU310-CJ provide?
The module provides 10 MB battery-backed RAM and 10 MB non-volatile flash memory for storing user programs, configuration data, and application information.
Q4: What communication interfaces are available on the IC695CMU310-CJ?
The CPU includes two isolated serial communication ports supporting RS-232 and RS-485 interfaces. Supported protocols include SNP, Serial I/O, and Modbus RTU Slave communication.
Q5: What is the difference between the IC695CMU310-CJ and earlier revisions?
The CJ revision corresponds to firmware version 5.50. It adds Run-mode Store of Ethernet Global Data (EGD) capability and support for the LREAL floating-point data type compared with previous firmware versions.
Q6: What software is used to configure the IC695CMU310-CJ?
The module is configured and programmed using Proficy Machine Edition, including the Max-ON redundancy configuration tools required for hot standby applications.
Q7: What power supply requirements does the IC695CMU310-CJ have?
The CPU requires approximately 1.0 A at +5 VDC and 1.25 A at +3.3 VDC from the RX3i backplane power supply.
Q8: What should be checked before replacing an IC695CMU310-CJ module?
Before replacement, verify the RX3i backplane compatibility, redundancy configuration, firmware compatibility, battery condition, Ethernet redundancy setup, serial communication settings, and Proficy Machine Edition project configuration to ensure a smooth system recovery.
