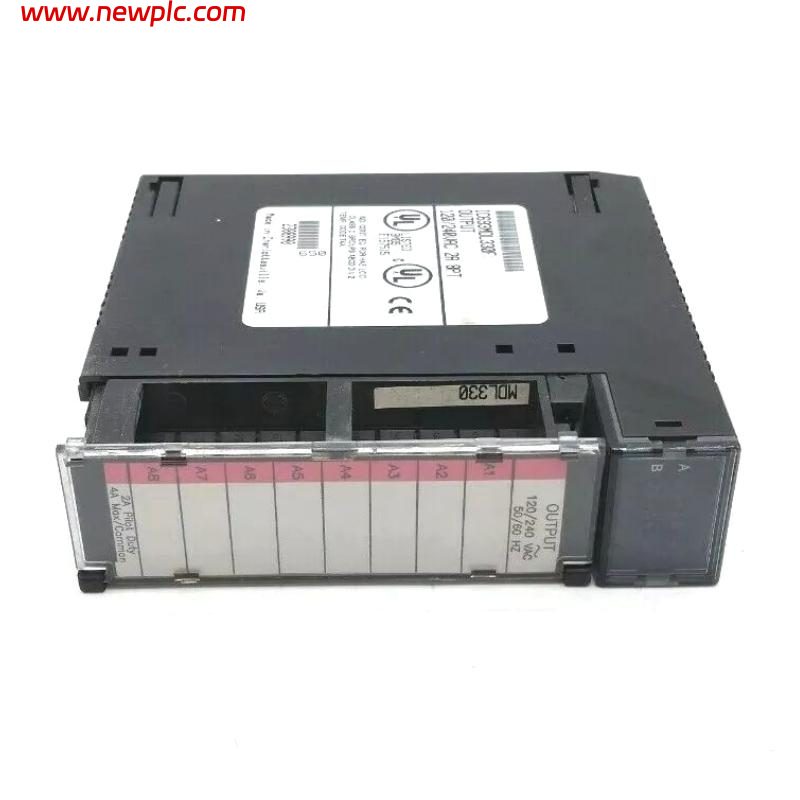

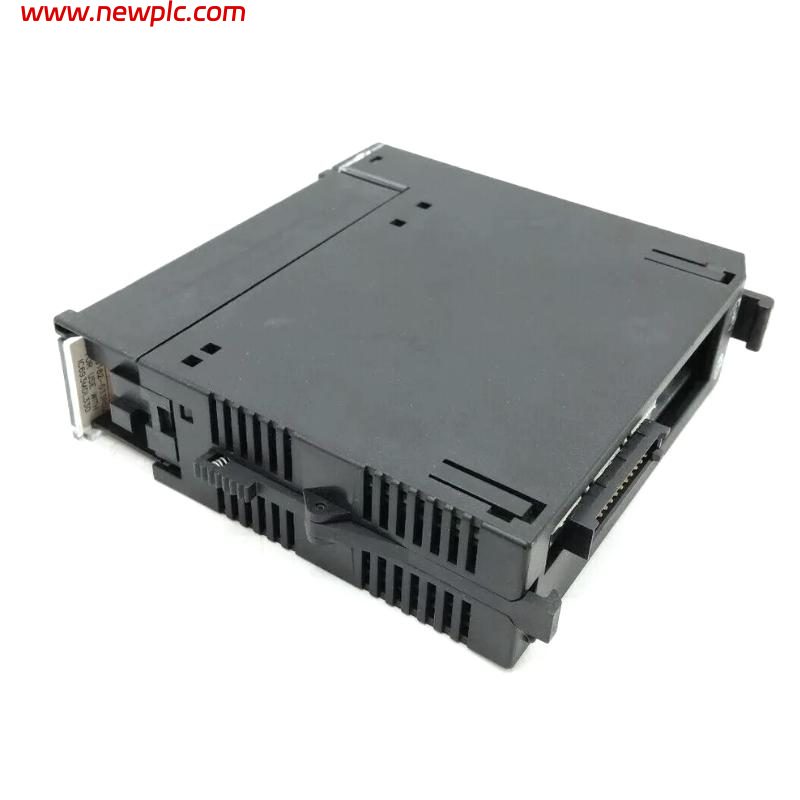

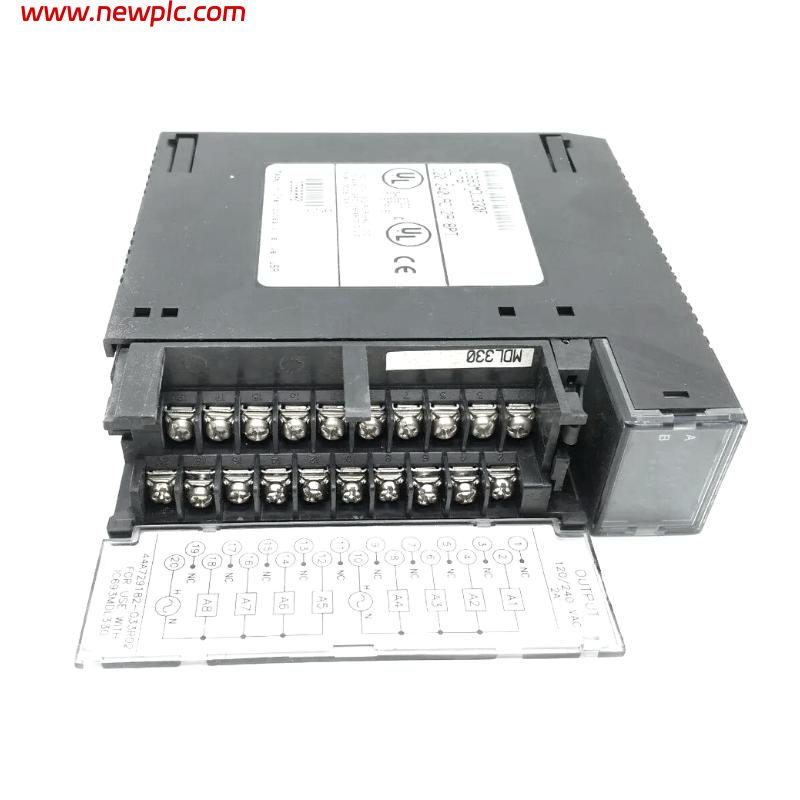

GE IC693MDL330F AC Discrete Output Module

FAQ

Q1: What is the GE Fanuc IC693MDL330F used for?
The IC693MDL330F is an AC output module used in Series 90-30 PLC systems to control external AC-powered devices. Typical applications include switching motors, valves, contactors, relays, and industrial indicators.

Q2: How many output channels does the IC693MDL330F provide?
The module provides 8 AC output points, arranged as two isolated groups of four outputs. Each group can operate independently or share the same AC supply source.

Q3: What voltage range does the IC693MDL330F support?
The module supports 120/240 VAC applications with an operating output voltage range of 85 to 264 VAC at 50/60 Hz.

Q4: What is the maximum output current of the IC693MDL330F?
Each output point can handle up to 2 A, while each group supports up to 4 A maximum at 40°C.

Q5: Does the IC693MDL330F require an external power supply?
Yes. The module receives its internal operating power from the Series 90-30 backplane, but an external AC power source is required to supply the connected field loads.

Q6: What protection features are included in the IC693MDL330F?
The module includes RC snubber circuits for transient suppression and fuse protection on output common connections. These features help protect the module when switching inductive AC loads.

Q7: What does the “F” revision indicate?
The “F” suffix identifies the hardware revision of the IC693MDL330 AC output module. Revision letters indicate manufacturing updates while maintaining compatibility with Series 90-30 PLC systems.

Q8: What should be checked before replacing an IC693MDL330F module?
Before replacement, verify the Series 90-30 rack compatibility, AC voltage level, output load current requirements, field wiring, fuse condition, and PLC hardware configuration to ensure correct operation after installation.
