Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

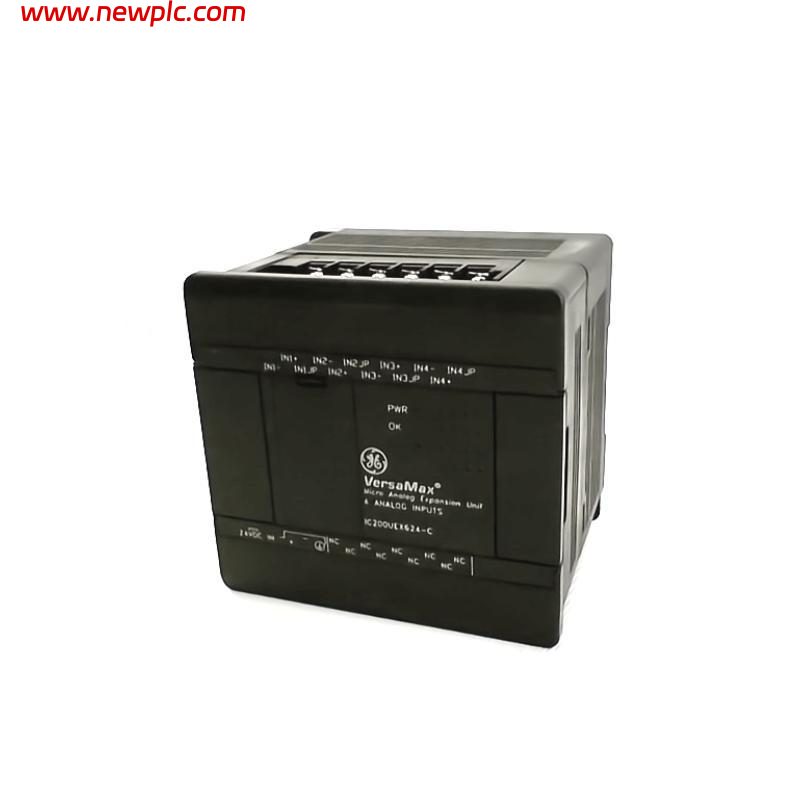

| Product Model | IC200UEX624 |
| Product Type | Analog Expansion Input Module |
| Series | VersaMax Micro PLC |
| Function | Expands VersaMax Micro PLC analog input capability for voltage and current signal measurement |
| Number of Input Channels | 4 analog input channels |
| Input Type | Differential analog input |
| Signal Type | Voltage / Current |
| Voltage Input Range | 0 to 10 VDC |
| Current Input Range | 0 to 20 mA, 4 to 20 mA |
| A/D Resolution | 12-bit |
| Input Accuracy | ±1% of full scale over operating temperature range |
| Voltage Input Impedance | 200 kΩ minimum |
| Current Input Impedance | 249 Ω nominal |
| Common Mode Voltage | ±40 V maximum |
| Input Filter Time | 20 ms typical |
| Isolation | Non-isolated |
| Power Supply Voltage | 24 VDC |
| Power Supply Range | 19.2–30 VDC |
| Power Consumption | 3 W maximum |
| Input Current | 0.1 A at 30 VDC |
| Hold-up Time | 24.5 ms at 19.2 VDC |
| Inrush Current | 2.5 A maximum at 30 VDC (1 ms) |
| Communication Interface | VersaMax Micro expansion bus |
| Expansion Capability | Up to 4 analog expansion units supported by VersaMax Micro PLC |
| LED Indicators | OK LED, Local Power LED |
| Mounting Method | Direct connection to VersaMax Micro PLC expansion interface |
| Compatible Systems | GE Fanuc / Emerson VersaMax Micro PLC |
| Operating Temperature | 0°C to +55°C (32°F to +131°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 90 × 95 × 76 mm (3.54 × 3.74 × 2.99 in.) |
| Weight | Approx. 0.91 kg (2.0 lb) |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200UEX624 used for?
The IC200UEX624 is an analog expansion module designed for VersaMax Micro PLC systems. It adds four analog input channels, allowing the PLC to read signals from devices such as pressure transmitters, flow meters, level sensors, and other process instruments.
Q2: How many analog inputs does the IC200UEX624 provide?
The module provides 4 analog input channels. Each channel can measure voltage or current signals depending on the configured application.
Q3: What input signals are supported by the IC200UEX624?
The module supports 0–10 VDC voltage inputs and 0–20 mA / 4–20 mA current inputs, making it suitable for common industrial analog instrumentation.
Q4: What is the resolution of the IC200UEX624 analog inputs?
The module uses a 12-bit analog-to-digital converter, providing 4096 possible digital measurement values for analog signal conversion.
Q5: Does the IC200UEX624 require an external power supply?
Yes. The module requires a 24 VDC power supply, with an allowable operating range of 19.2–30 VDC. The power supply rating is approximately 3 W.
Q6: Is the IC200UEX624 input electrically isolated?
No. The analog inputs are non-isolated, so proper grounding and signal wiring practices are required to reduce electrical noise and measurement errors.
Q7: What does the IC200UEX624 connect to?
The module connects directly to a GE Fanuc VersaMax Micro PLC expansion interface and is used to increase the PLC’s analog input capacity without adding a separate rack system.
Q8: What should be checked before replacing an IC200UEX624 module?
Before replacement, verify the VersaMax Micro PLC compatibility, 24 VDC power supply condition, analog signal type (voltage or current), channel wiring, scaling parameters, and grounding configuration to ensure accurate analog measurement after installation.
