Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | IC693CPU311 |

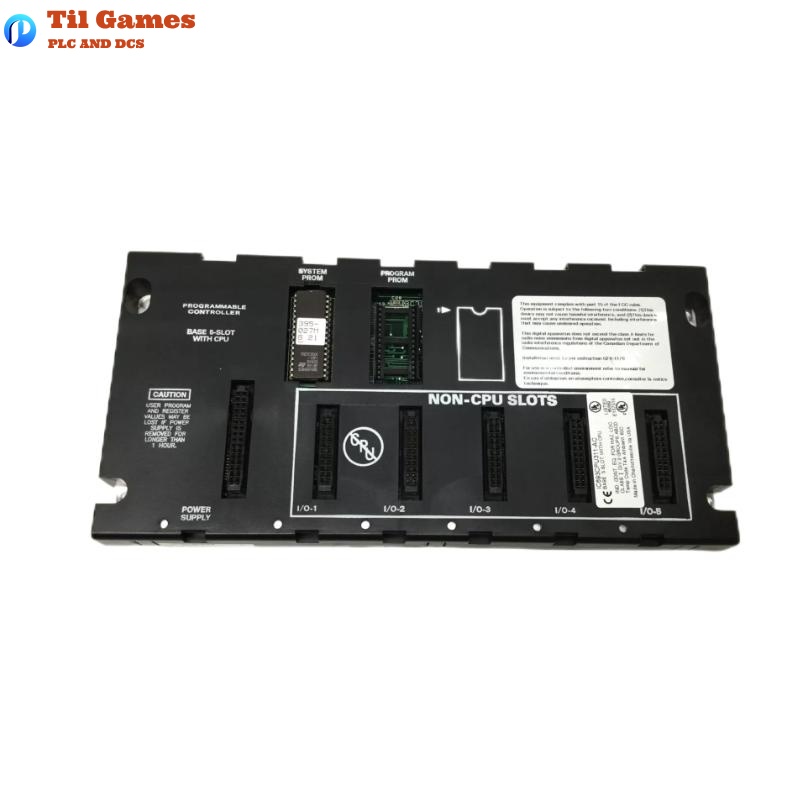

| Base Type | 5-slot baseplate with embedded CPU |
| Max User Program Memory | 6 KB |
| Processor Type | Intel 80188 |
| Processor Speed | 10 MHz |
| Power Supply Requirement | +5V DC, 410 mA |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Typical Scan Rate | ~18 ms per 1K Boolean logic |
| Discrete Inputs (%I) | Up to 160 points (combined I/O) |
| Discrete Outputs (%Q) | Up to 160 points (combined I/O) |
| Global Discrete (%G) | 1280 bits |
| Internal Coils (%M) | 1024 bits |
| Temporary Coils (%T) | 256 bits |
| System Status (%S) | 128 bits (%S, %SA, %SB, %SC – 32 bits each) |
| Register Memory (%R) | 512 words |
| Analog Inputs (%AI) | 64 words |
| Analog Outputs (%AQ) | 32 words |
| System Registers (%SR) | 16 words (view-only) |
| Timers/Counters | 170 units |
| Shift Registers | Supported |
| Serial Port | 1 (SNP & SNP-X slave protocols supported) |
| LAN/Comm Options | Ethernet, FIP, Profibus, GBC, GCM, GCM+ |
| Interrupts, Overrides, RTC | Not supported |
| Memory Type | RAM and optional EPROM/EEPROM |
| PCM/CCM Compatibility | Not supported |
| Dimensions | 156 x 102 x 30 mm |
| Weight | 0.907 kg |
FAQ
FAQ
Q1: What is the maximum user program memory of the IC693CPU311?
A1: It supports up to 6 KB of user program memory.
Q2: What is the operating temperature range for this module?
A2: The operating range is from 0°C to 60°C (32°F to 140°F).
Q3: Does this unit have a battery-backed real-time clock?
A3: No, it does not include a battery-backed clock.
Q4: Does the IC693CPU311 have a built-in serial port?
A4: Yes, it has one built-in serial port supporting SNP and SNP-X slave protocols.
Q5: Are analog inputs and outputs supported?
A5: Yes, it supports 64 words of analog input (%AI) and 32 words of analog output (%AQ).
Q6: Does this module support interrupt handling?
A6: No, interrupt handling is not supported.
Q7: What is the total number of discrete I/O points supported?
A7: Up to 160 points total (combined input and output).
Q8: What communication options are available for this product?
A8: It supports Ethernet, FIP, Profibus, GBC, GCM, and GCM+ modules.
