Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693CPU313 |

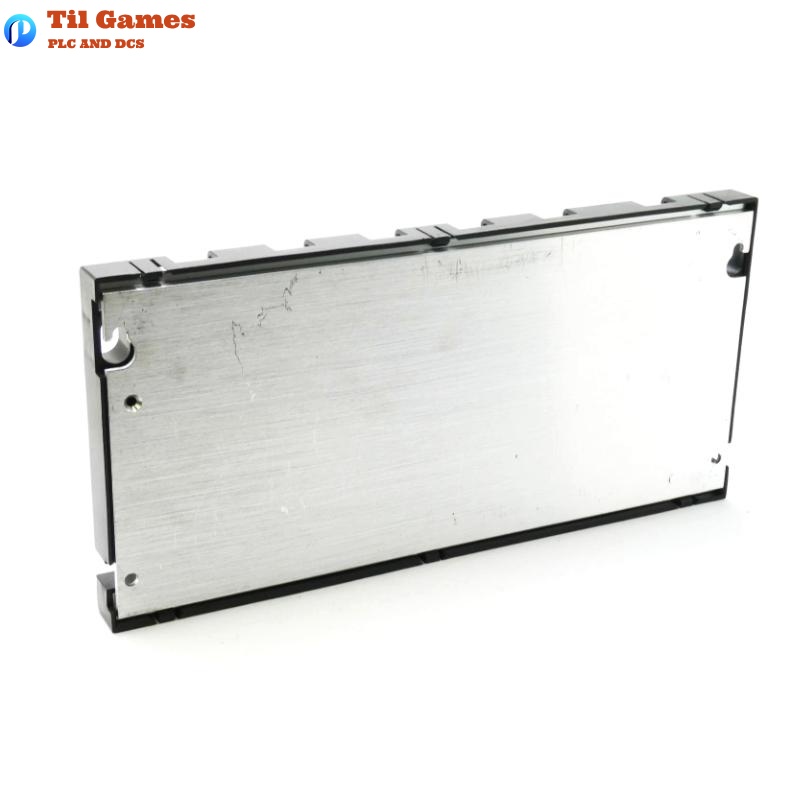

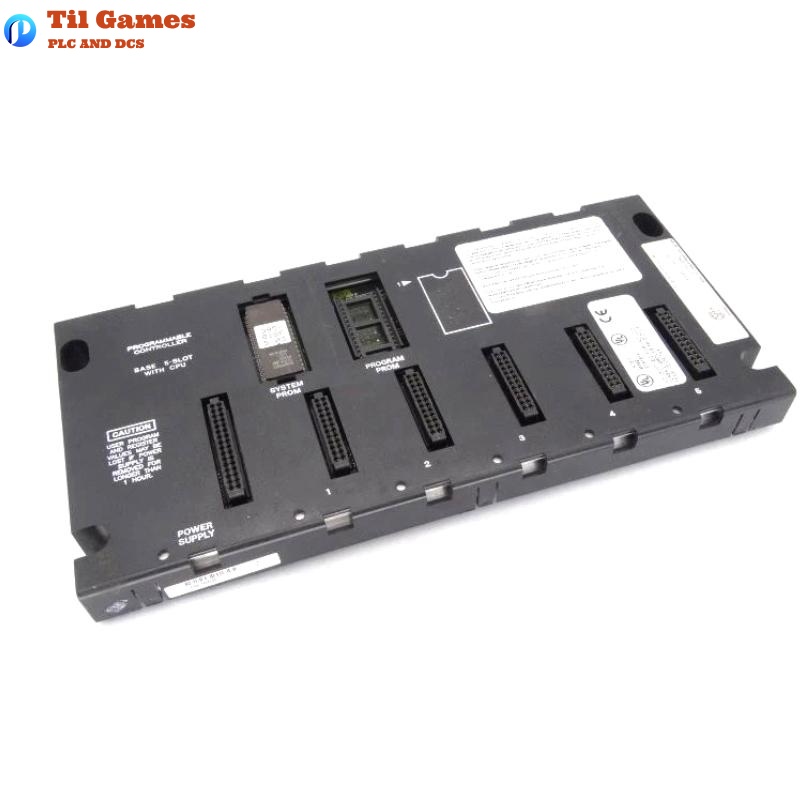

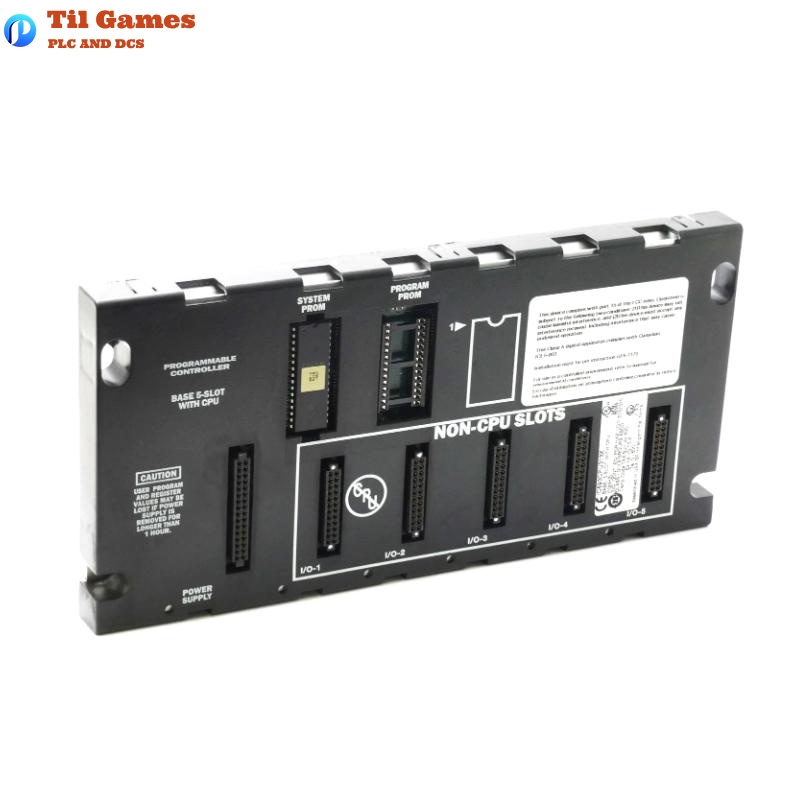

| Total Baseplates | 1 (5-slot baseplate with embedded Turbo CPU) |
| Power Requirement | 430 mA from +5 VDC supply |
| Processor Type | Intel 80188 |
| Processor Speed | 10 MHz |
| Typical Scan Rate | 0.6 ms per 1K Boolean logic |
| User Program Memory | 12 KB max (6 KB before release 7) |
| Discrete Inputs %I | Max 160 points (combined with outputs) |
| Discrete Outputs %Q | Max 160 points (combined with inputs) |
| Global Memory %G | 1280 bits |
| Internal Coils %M | 1024 bits |
| Temporary Coils %T | 256 bits |
| System Status %S | 128 bits (%S, %SA, %SB, %SC – 32 bits each) |
| Register Memory %R | 1024 words |
| Analog Inputs %AI | 64 words |
| Analog Outputs %AQ | 32 words |
| System Registers %SR | 16 words (view-only, not for user logic) |
| Timers / Counters | 170 |
| Shift Registers | Supported |
| Built-in Ports | 1 (via power supply connector), supports SNP/SNP-X |
| Communication LAN | Supports multidrop, Ethernet, FIP, Profibus, etc. |
| Battery Backed Clock | Not supported |
| Interrupts | Not supported |
| Memory Type | RAM and optional EPROM/EEPROM |
| PCM/CCM Compatibility | Not supported |
| Dimensions | 156 x 102 x 30 mm |
| Weight | 0.57 kg |
FAQ
FAQ
Q1: Does the IC693CPU313 include a battery-backed real-time clock?
A1: No, it does not include a battery-backed clock.
Q2: What is the maximum number of discrete points supported?
A2: It supports up to 160 discrete points total (input and output combined).
Q3: Does this CPU support interrupt handling?
A3: No, interrupt support is not available.
Q4: Which communication protocols are supported?
A4: It supports multidrop, Ethernet, FIP, Profibus, GBC, GCM, and GCM+ modules.
Q5: Is the module compatible with PCM or CCM expansion modules?
A5: No, PCM/CCM modules are not supported.
Q6: What is the size of the user program memory?
A6: The user program memory is up to 12 KB.
Q7: Are analog I/O channels supported?
A7: Yes, it supports 64 words of analog input and 32 words of analog output.
Q8: What is the typical logic scan time?
A8: The typical scan time is 0.6 milliseconds per 1K Boolean logic.
