Technical Specifications
| Parameter | Description |
|---|---|

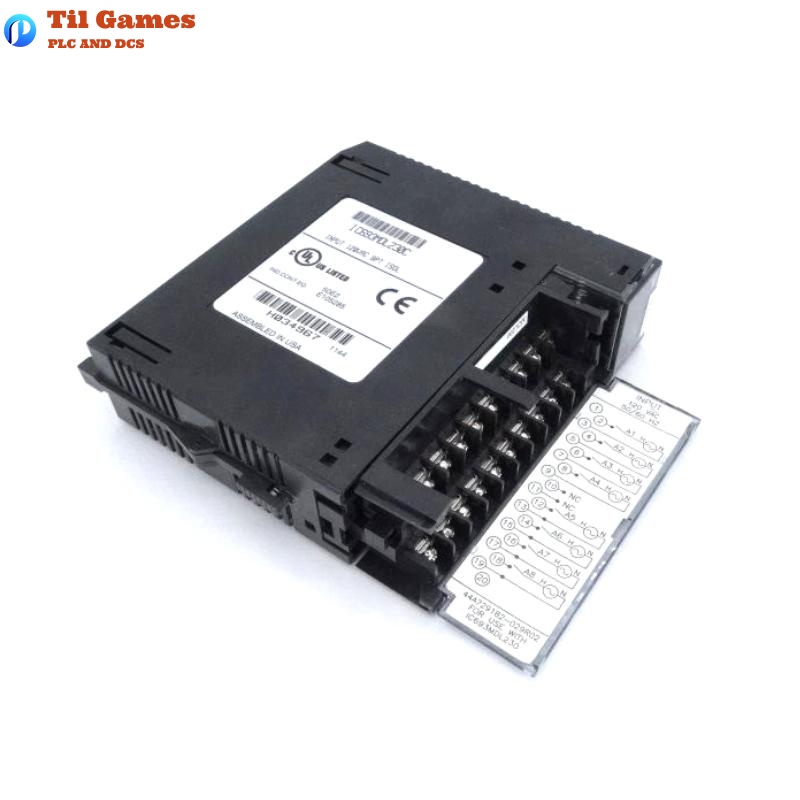

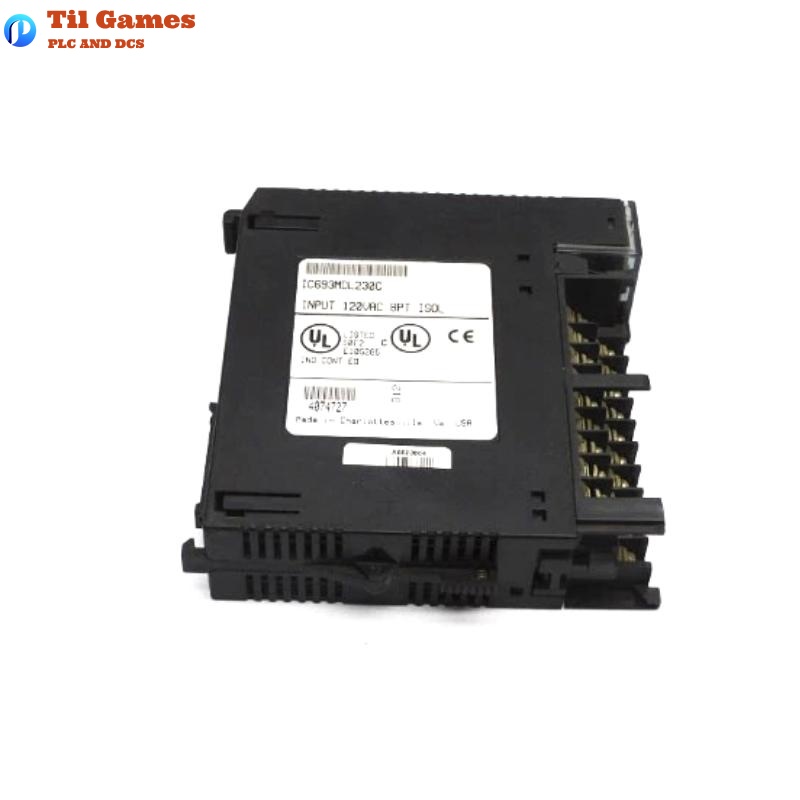

| Model | IC693MDL230 |
| Series | PACSystems RX3i / Series 90-30 |
| Type | AC Isolated Input Module |
| Voltage Range | 90 to 132 VAC |
| Input Points | 16 points, single group common |
| Input Current | 7 mA (typical) @ 120 VAC |
| On Voltage | Minimum 74 VAC |
| Off Voltage | Maximum 20 VAC |
| Input Filtering | Typical 10 ms delay (50Hz) |
| Isolation | Optical isolation per point (1500 V RMS) |
| Module Mounting | Slot mount with LED status indication |
| Power Consumption | 125 mA @ 5VDC (logic side) |
| Dimensions | 142 x 30 x 130 mm |
| Weight | 0.18 kg |
FAQ
FAQ
Q1: How many input points does the IC693MDL230 module support?
A1: The module supports 16 AC input points with a single common terminal.
Q2: What is the input voltage range?
A2: It supports an input voltage range of 90 to 132 VAC for standard industrial signals.
Q3: Are the input points isolated?
A3: Yes, each input point is optically isolated with 1500 V RMS isolation.
Q4: Does the module provide status indication?
A4: Yes, it has LED indicators for each input point to display status.
Q5: What control systems is this module compatible with?
A5: The IC693MDL230 is compatible with GE PACSystems RX3i and 90-30 series PLCs.
Q6: What is the typical input response time?
A6: The module has a typical input delay of 10 milliseconds, suitable for noise-prone environments.
Q7: How much logic side current does it consume?
A7: It consumes approximately 125 mA @ 5VDC on the logic side.
Q8: What are the physical dimensions and weight of the module?
A8: The dimensions are 142 x 30 x 130 mm and the weight is approximately 0.18 kg.
