Technical Specifications
| Parameter | Specification |
|---|---|

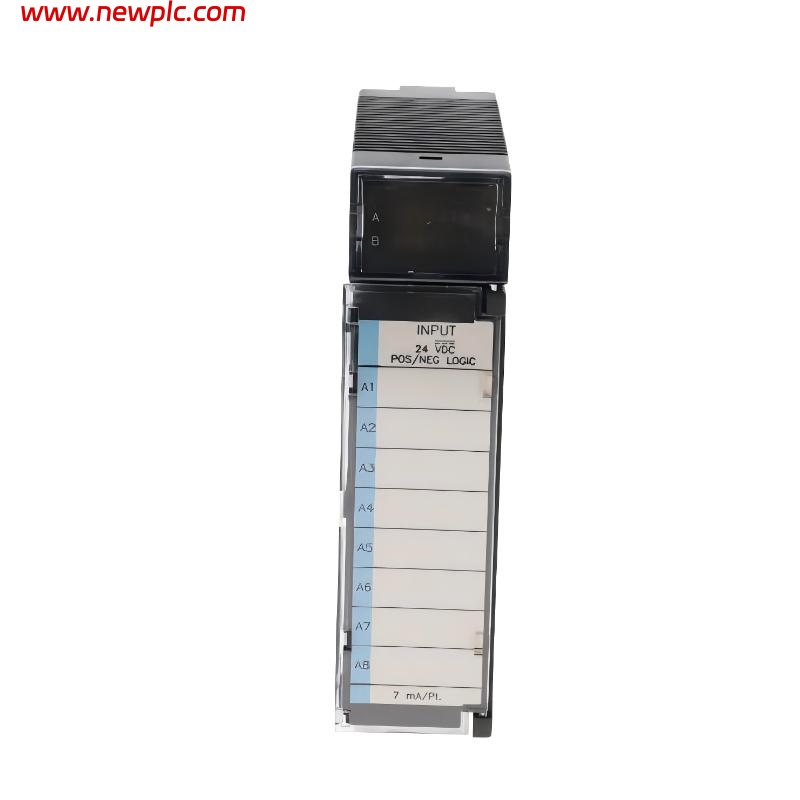

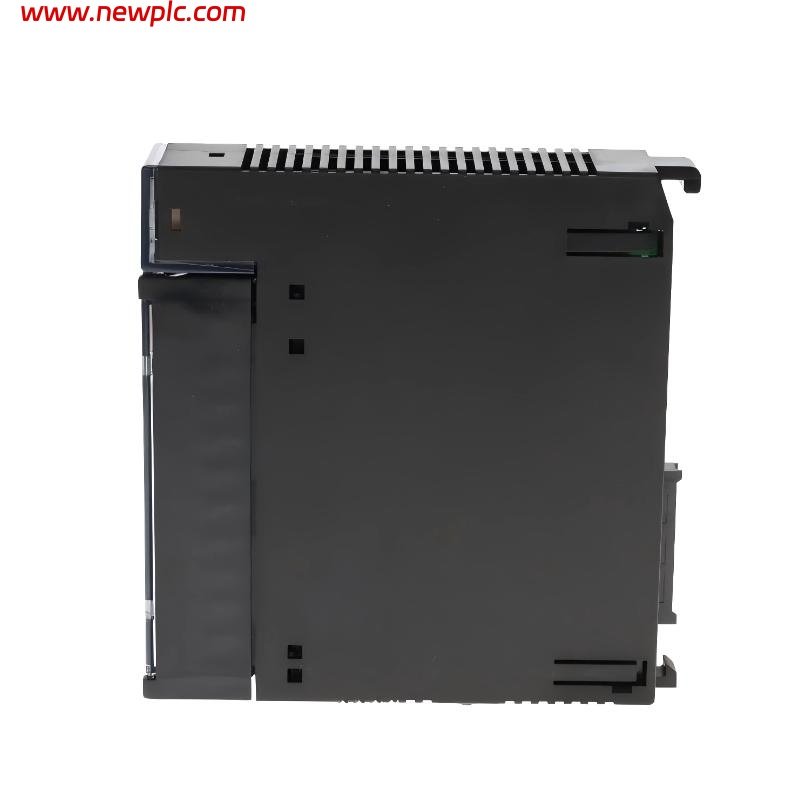

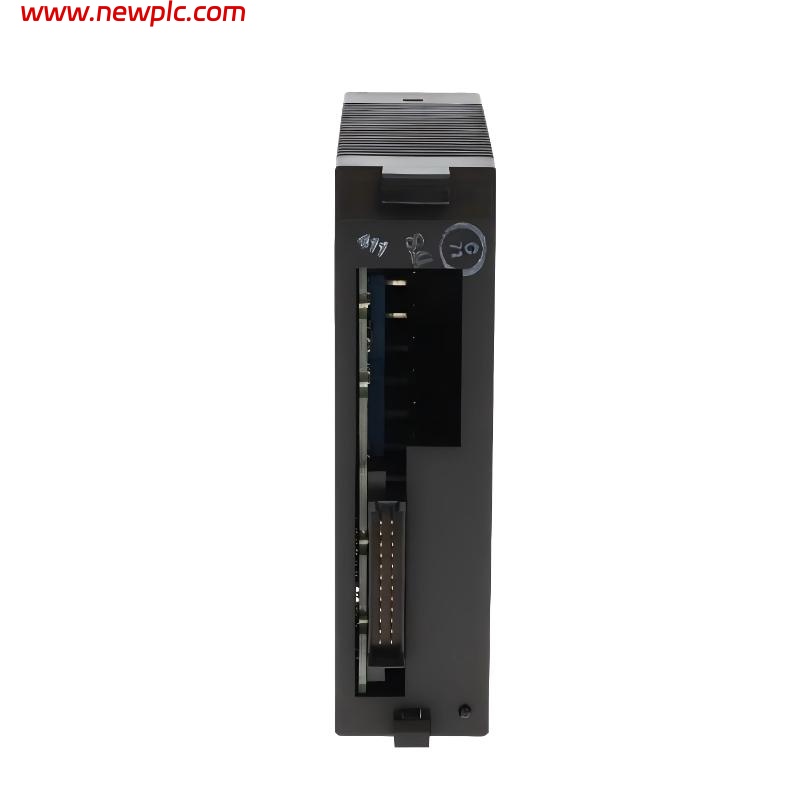

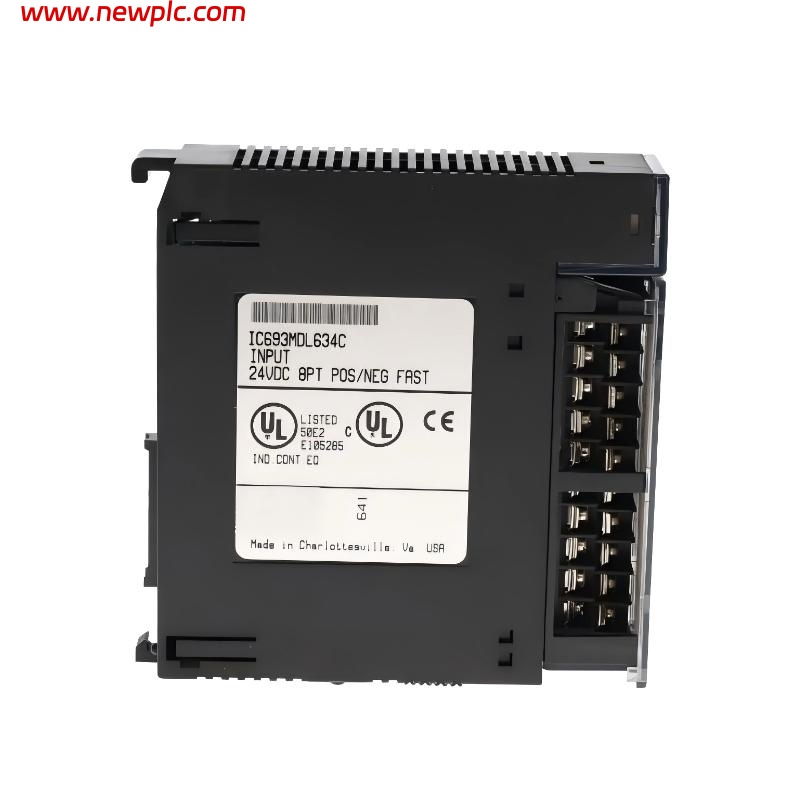

| Model Number | GE IC693MDL634 |
| Product Type | Positive/Negative Logic Input Module |
| Function | Accepts digital input signals using positive or negative logic for PLC systems |
| Number of Channels | 16 discrete inputs |
| Logic Type | Supports both sourcing and sinking inputs |
| Input Signal Type | Industrial digital signals |
| Electrical Isolation | Channel-to-channel and channel-to-system isolation |
| Signal Filtering | Built-in debounce and noise suppression |
| Fault Detection | Open-circuit and abnormal signal detection |
| Data Interface | PLC backplane communication |
| Power Supply | Supplied from PLC backplane |
| Mounting Type | PLC rack / base mounting |
| Operating Environment | Industrial temperature range |
| Typical Applications | Automation control, equipment monitoring |
| Dimensions | 130 x 40 x 100 mm |
| Weight | 0.272 kg |
FAQ
FAQ
Q1: What is the primary purpose of the IC693MDL634 module?
A1: It receives discrete input signals from field devices and transfers their status to the PLC system for logic processing.
Q2: What does positive and negative logic mean?
A2: It supports both sourcing and sinking input wiring methods, allowing compatibility with different types of field devices.
Q3: How many input channels are available?
A3: The module provides 16 independent digital input channels in one PLC slot.
Q4: Does the module provide electrical isolation?
A4: Yes, electrical isolation protects the control system from noise and voltage disturbances from the field side.
Q5: Can it filter unstable signals?
A5: Yes, built-in filtering reduces the impact of electrical noise and signal fluctuations.
Q6: What type of devices can be connected?
A6: It connects to switches, sensors, relays, and standard digital signal sources.
Q7: Does it support fault detection?
A7: It can identify unreliable or abnormal input conditions caused by wiring issues.
Q8: Is it designed for continuous industrial operation?
A8: Yes, it is suitable for long-term operation in automation environments.
