Technical Specifications
| Parameter | Specification |
|---|---|

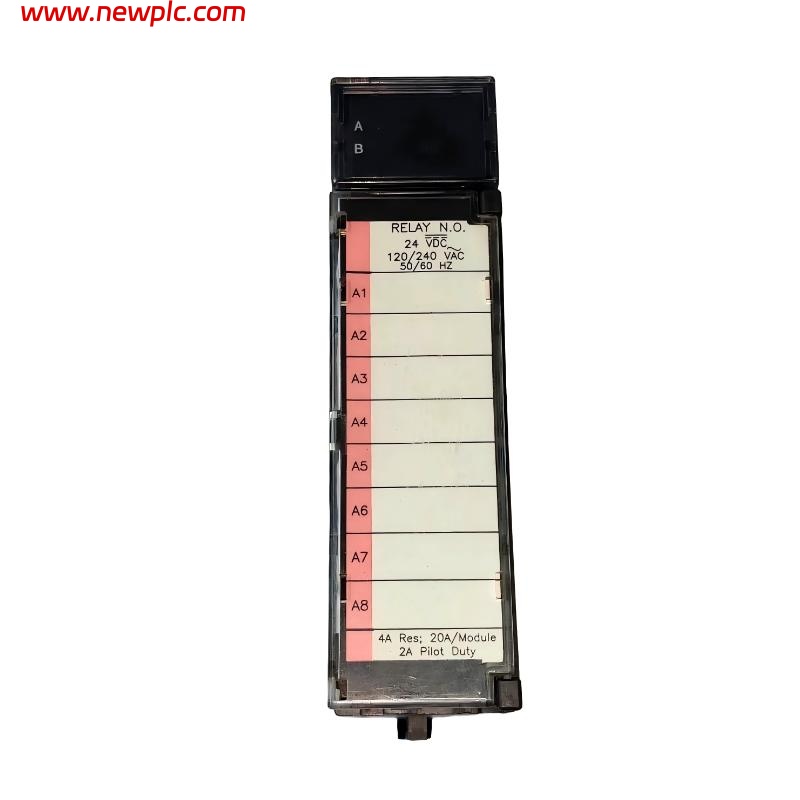

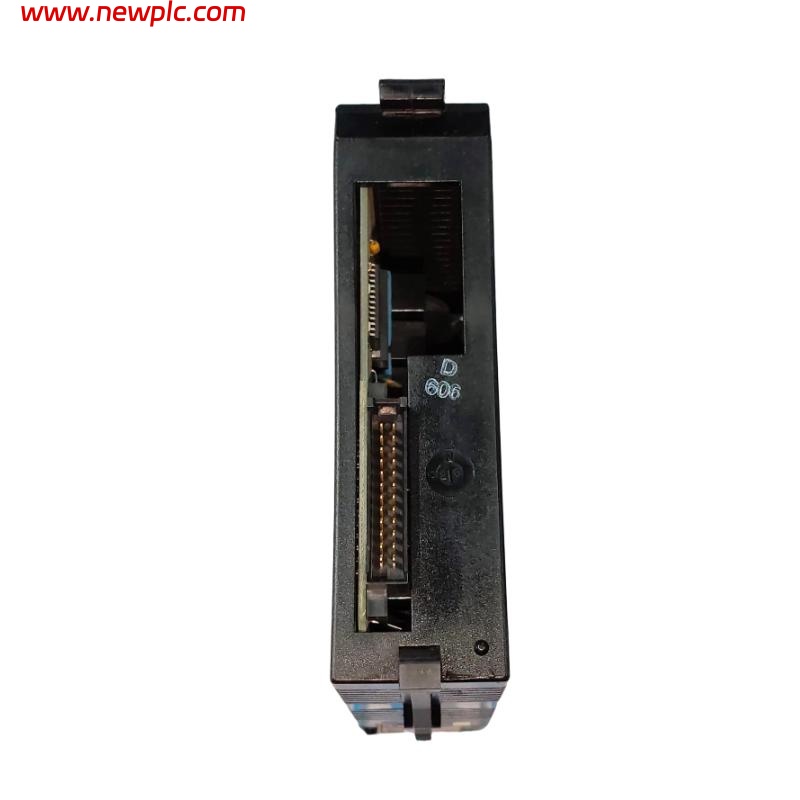

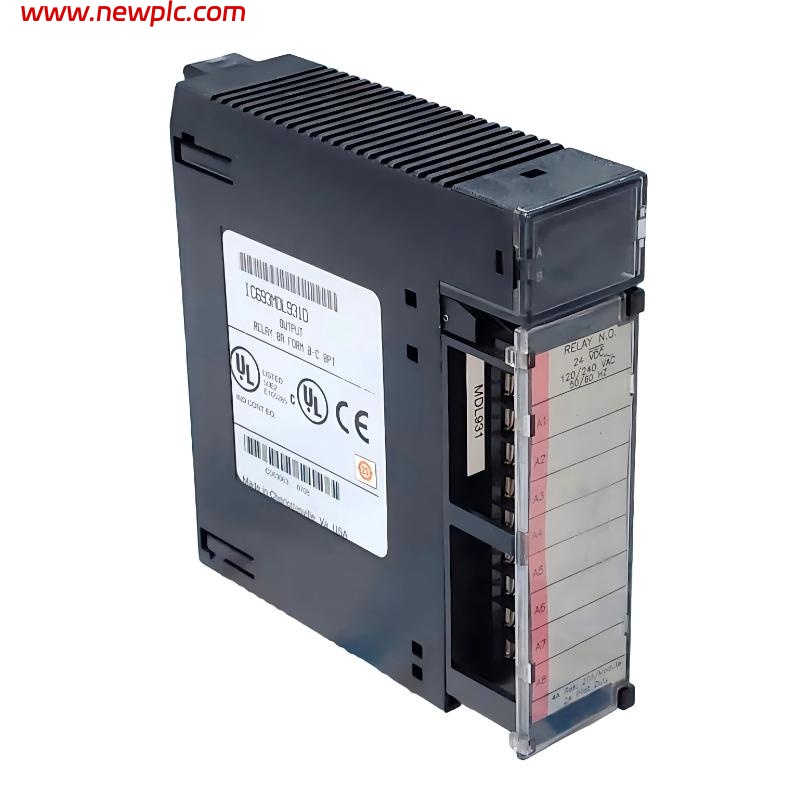

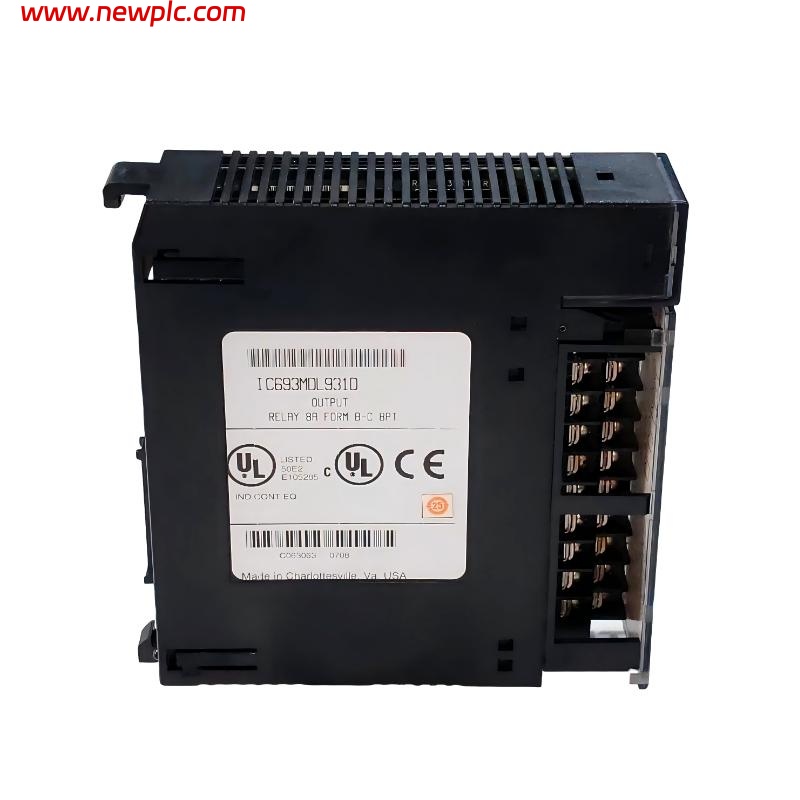

| Model Number | GE IC693MDL931 |
| Product Type | Isolation Relay Output Module |
| Number of Channels | 8 |
| Output Type | Relay (dry contact) outputs |
| Contact Function | Normally open relay contacts |
| Output Isolation | Electrical isolation between field and control circuit |
| Switching Capability | Designed for industrial load switching |
| Control Interface | PLC backplane communication |
| Response Time | Suitable for standard industrial control timing |
| Contact Protection | Arc suppression and relay isolation design |
| Wiring Method | Industrial terminal connection |
| Application Area | Equipment control, alarms, and interlocking |
| Dimensions | 89 × 107 × 188 mm |
| Weight | 0.52 kg |
FAQ
FAQ
Q1: What is the main function of the IC693MDL931 module?
A1: It provides relay outputs to control external devices from the PLC.
Q2: How many relay outputs are available?
A2: The module has 8 independent relay channels.
Q3: Are the relay outputs electrically isolated?
A3: Yes, isolation is provided between the PLC and field wiring.
Q4: What type of loads can be controlled?
A4: It can switch common industrial loads such as contactors and indicators.
Q5: Does this module require an external power supply?
A5: Relays are driven internally by the PLC system power.
Q6: Is it suitable for continuous operation?
A6: Yes, it is designed for long-term industrial use.
Q7: Can it be used in safety circuits?
A7: It is suitable for interlock and signaling functions where relay isolation is required.
Q8: How is it installed in the PLC system?
