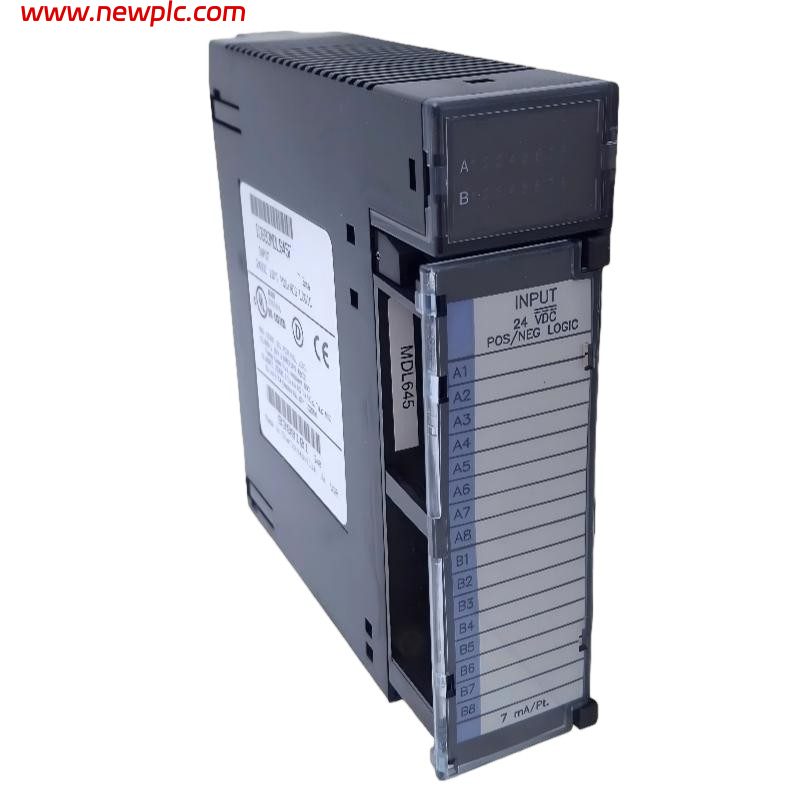

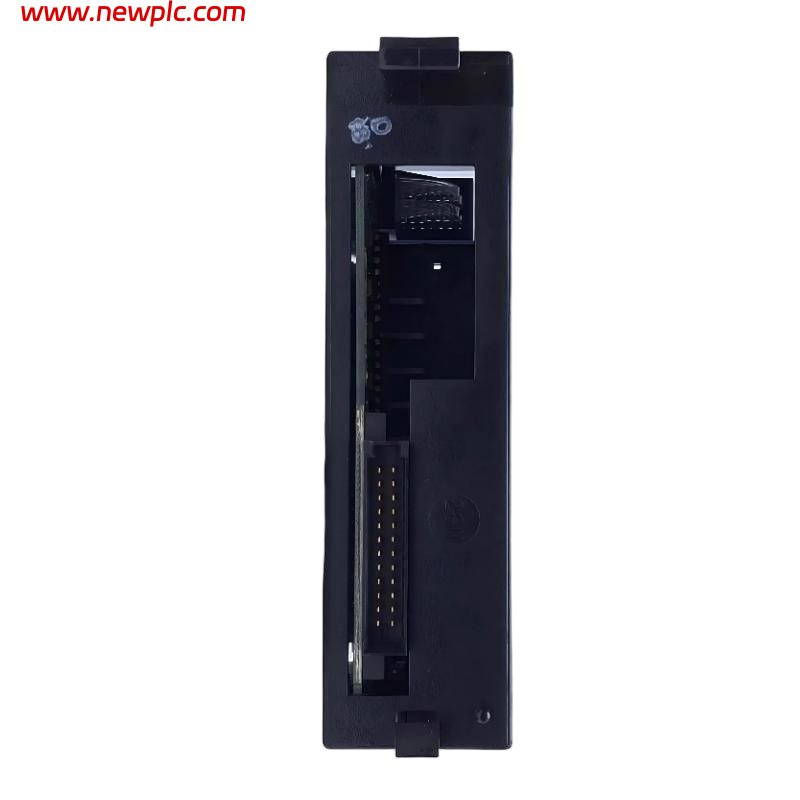

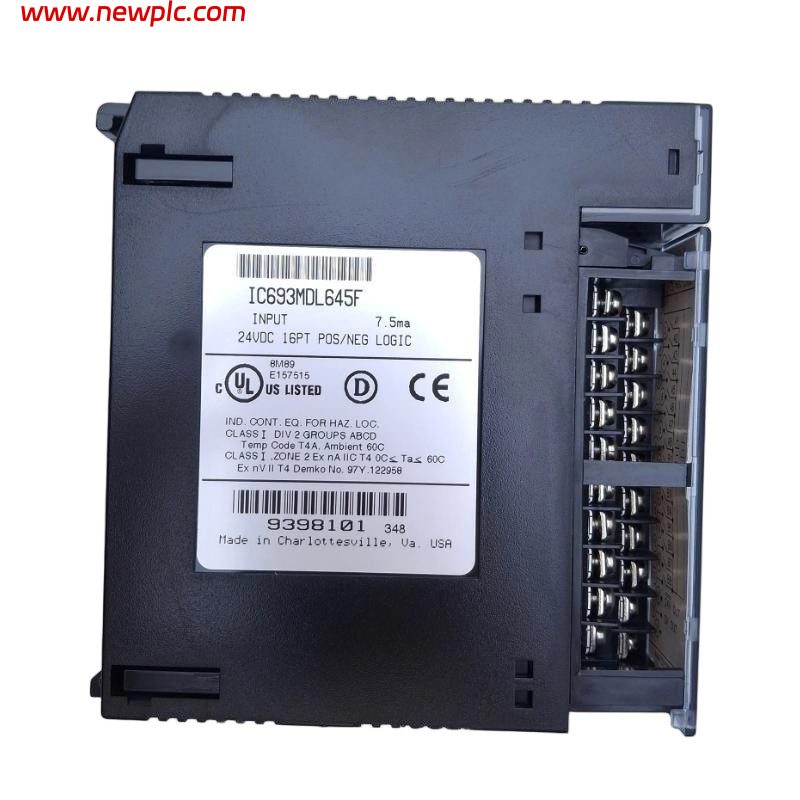

Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation Solutions) |
| Product Model | IC693MDL645F |
| Product Type | Discrete Input Module |
| Series | Series 90-30 PLC |
| Input Type | Positive/Negative Logic DC Input |
| Number of Input Points | 16 |
| Input Groups | 1 group with common power terminal |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 0–30 VDC |
| Input Current | 7 mA per point (typical) |
| On-State Voltage | 11.5–30 VDC |
| Off-State Voltage | 0–5 VDC |
| On-State Current | 3.2 mA minimum |
| Off-State Current | 1.1 mA maximum |
| Logic Type | Positive Logic / Negative Logic |
| Response Time | 7 ms ON / 7 ms OFF |
| Isolation | 1500 VAC between field side and logic side |
| Backplane Current Consumption | 80 mA @ 5 VDC (all inputs ON) |
| 24 VDC Bus Consumption | 125 mA (isolated 24 VDC bus or user-supplied power) |
| LED Indicators | 16 individual green input status LEDs |
| Connector Type | 20-screw terminal block |
| Compatible Baseplate | Series 90-30 5-slot or 10-slot baseplate |
| Mounting Type | Series 90-30 PLC Rack |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W × H × D) | 37 × 128 × 140 mm |
| Weight | 0.31 kg |
| Application | Digital signal acquisition for pushbuttons, limit switches, proximity sensors, auxiliary contacts, and industrial automation systems |
| Condition | New and Original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the GE IC693MDL645F used for?
The IC693MDL645F is used to receive 24 VDC digital signals from field devices such as pushbuttons, limit switches, proximity switches, and auxiliary contacts in GE Series 90-30 PLC systems.
Q2: How many input channels does the IC693MDL645F provide?
The module provides 16 digital input channels arranged as one input group with a common power terminal.
Q3: What input voltage does the IC693MDL645F support?
It supports a 24 VDC nominal input with an operating range of 0–30 VDC, allowing compatibility with standard industrial DC control circuits.
Q4: What are the dimensions and weight of the IC693MDL645F?
The module measures approximately 37 × 128 × 140 mm and weighs approximately 0.31 kg.
Q5: Does the IC693MDL645F support both positive and negative logic?
Yes. The module supports both positive logic (sourcing) and negative logic (sinking) input configurations, providing flexible wiring options for various field devices.
Q6: Does the module provide input isolation?
Yes. The IC693MDL645F provides 1500 VAC isolation between the field wiring and PLC logic circuitry, improving system reliability and electrical protection.
Q7: What diagnostic features are included?
The module includes 16 green LED indicators, one for each input channel, allowing operators to monitor the status of every input signal in real time.
Q8: What are the advantages of the GE IC693MDL645F?
The IC693MDL645F offers 16 high-density digital inputs, support for both positive and negative logic, 1500 VAC electrical isolation, individual channel diagnostics, compatibility with the Series 90-30 PLC platform, and dependable performance in industrial automation applications.
