Technical Specifications
| Parameter | Description |
|---|---|

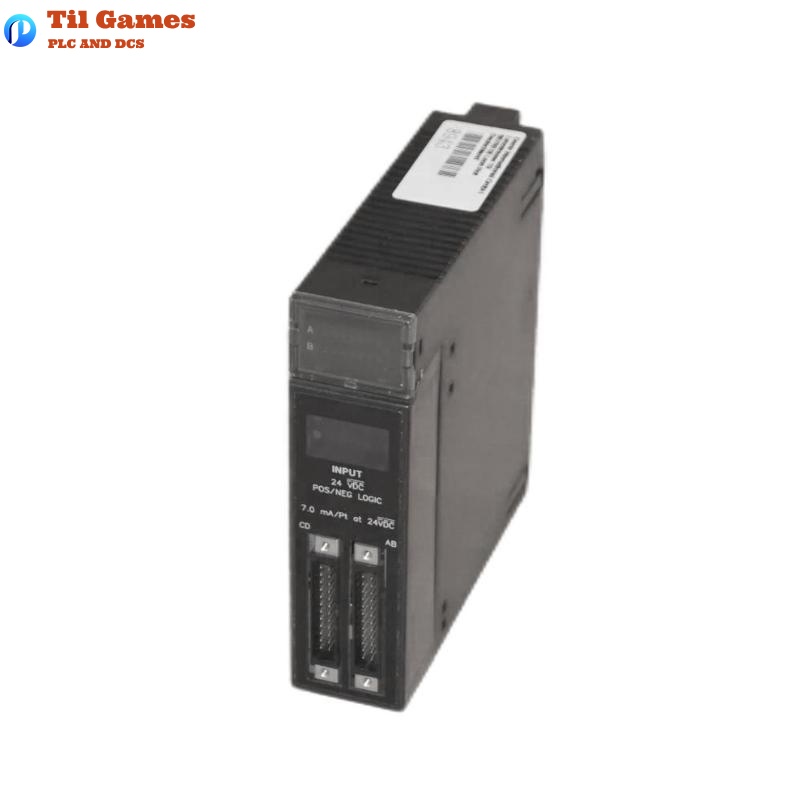

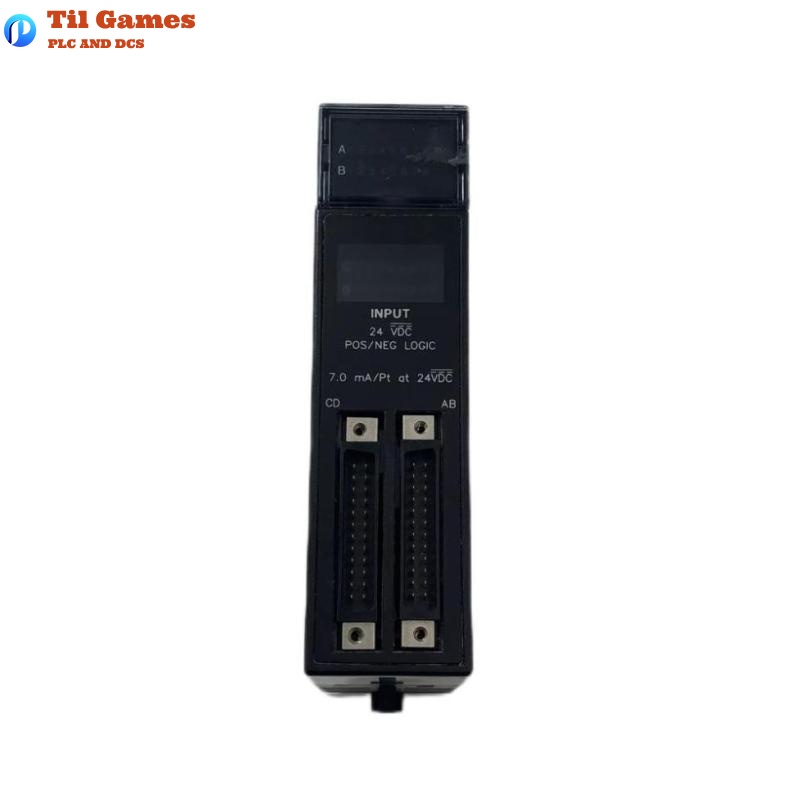

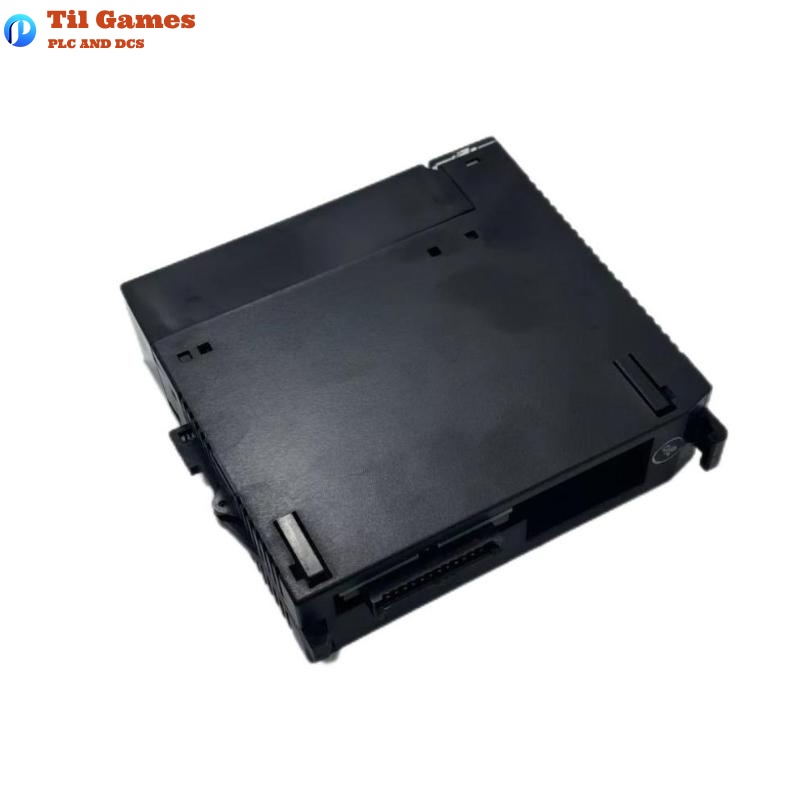

| Product Model | IC693MDL655 |
| Input Type | DC Voltage Input |
| Number of Input Points | 32 (grouped into four isolated groups of 8) |
| Input Voltage Range | 0 to +30 VDC |
| On-State Voltage | +13.5 to +30 VDC |
| Off-State Voltage | 0 to +5 VDC |
| On-State Current | 6 mA minimum |
| Off-State Current | 2 mA maximum |
| Input Impedance | 4.3 kΩ |
| Isolation (Field to Backplane) | 1500 V RMS |
| Isolation (Between Groups) | 500 V RMS |
| Response Time (Typical) | 1 ms or 10 ms (software configurable) |
| LED Indicators | One per input point |
| Module Current Draw (5V Bus) | 0.3 A |
| Dimensions | 128 x 55 x 105 mm |
| Weight | 0.281 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range for the IC693MDL655?
A1: The module supports a DC input voltage range from 0 to +30 VDC.
Q2: How many input channels does the IC693MDL655 module provide?
A2: It provides 32 discrete input points grouped into four isolated groups of 8.
Q3: What are the on-state and off-state voltage thresholds?
A3: On-state is +13.5 to +30 VDC; off-state is 0 to +5 VDC.
Q4: Is the input filtering configurable?
A4: Yes, input filter delay time can be configured to 1 ms or 10 ms through software.
Q5: What is the isolation rating between field and backplane?
A5: The module offers 1500 V RMS isolation between field side and backplane.
Q6: What is the typical input current draw from the backplane?
A6: The typical current draw from the 5V bus is 0.3 A.
Q7: Is this module compatible with proximity switches?
A7: Yes, it is compatible with DC proximity switches that meet the input criteria.
Q8: Does each input point have an individual LED indicator?
A8: Yes, each input point has a corresponding LED for visual status indication.
