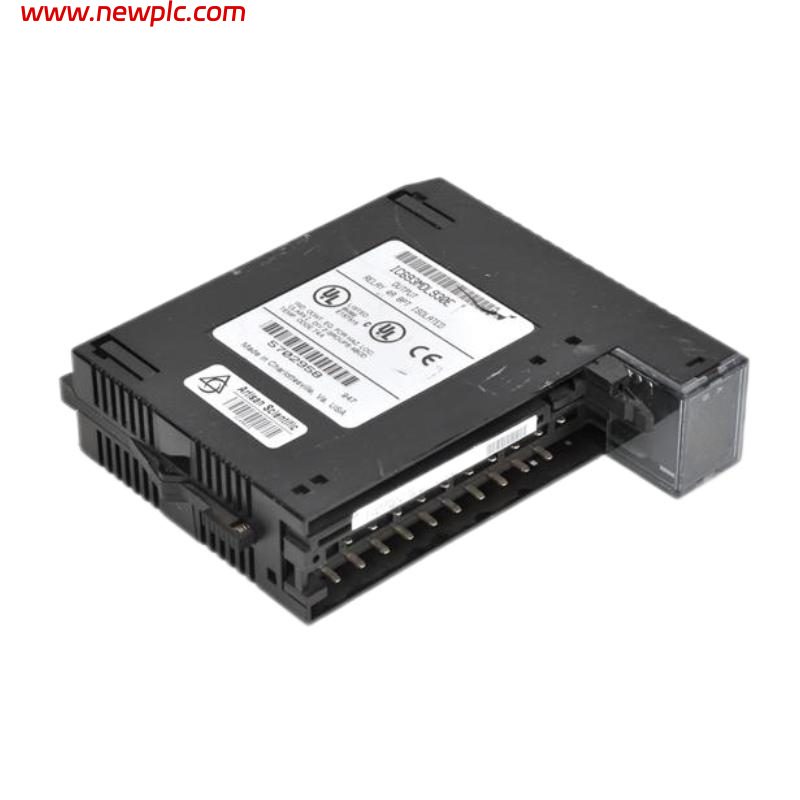

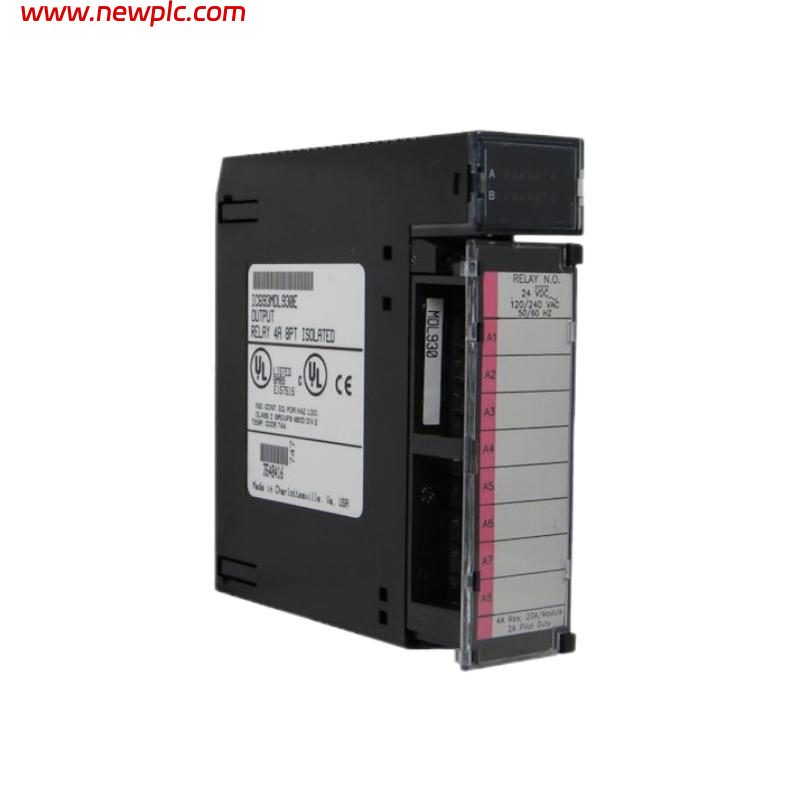

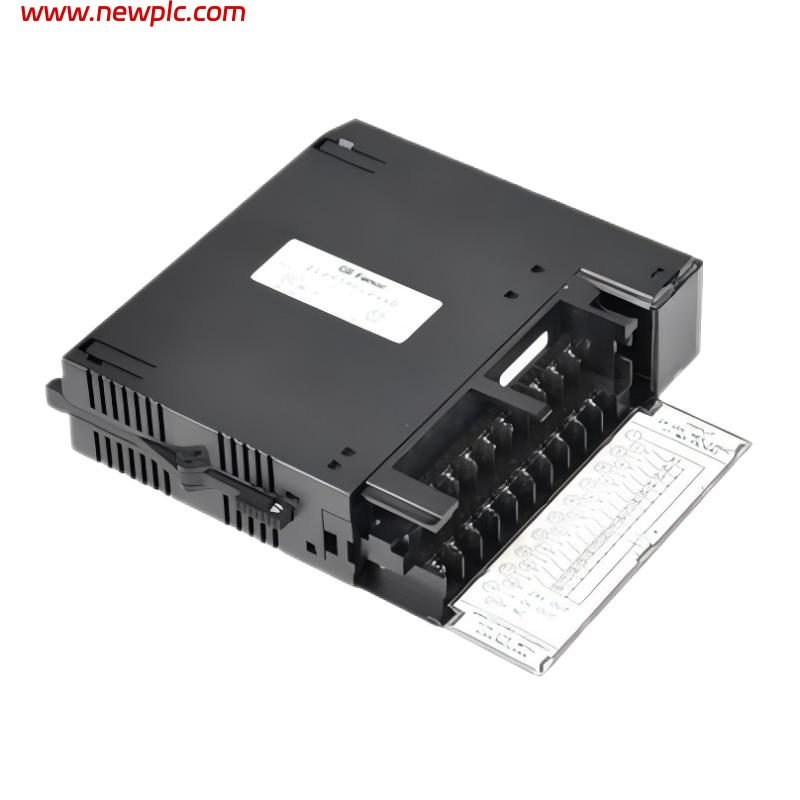

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc / Emerson |
| Product Series | Series 90-30 |
| Part Number | IC693MDL930E |
| Product Type | Isolated Relay Output Module |
| Output Type | Normally Open (N.O.) Relay |
| Number of Outputs | 8 |
| Output Isolation | Individually isolated |
| Rated Voltage | 24 VDC / 120 or 240 VAC |
| Operating Voltage | 5–30 VDC / 5–250 VAC, 50/60 Hz |
| Maximum Load | 4 A resistive per output |
| Pilot Duty | 2 A per output |
| Maximum Inrush Current | 5 A |
| Minimum Load | 10 mA |
| Maximum Module Load | 20 A for UL installations |
| Field-to-Logic Isolation | 1500 VAC |
| Point-to-Point Isolation | 1500 VAC |
| ON Response Time | 15 ms max. |
| OFF Response Time | 15 ms max. |
| Internal Power Consumption | 6 mA from 5 VDC bus; 70 mA from 24 V relay bus |
| Status Indicators | 8 LED indicators |
| Terminal Connection | 20-position screw terminal block |
| Compatible PLC | GE Series 90-30 |
| Installation | 5-slot or 10-slot Series 90-30 baseplate |
| Operating Temperature | 0°C to 60°C* |
| Dimensions | Approx. 50 × 140 × 150 mm |
| Weight | Approx. 0.35 kg |
| Application | Solenoids, motor starters, indicator lamps and other AC/DC loads |
| Product Status | Legacy industrial automation component |
FAQ
FAQ
Q1: What is GE Fanuc IC693MDL930E?
A: IC693MDL930E is an 8-point isolated relay output module designed for the GE Fanuc Series 90-30 PLC system.
Q2: How many outputs does IC693MDL930E have?
A: It has 8 individually isolated relay outputs. Each output uses a normally-open relay contact.
Q3: What voltage can IC693MDL930E switch?
A: The module supports 5–30 VDC and 5–250 VAC at 50/60 Hz. Its nominal rated voltages include 24 VDC and 120/240 VAC.
Q4: What is the maximum output current?
A: Each relay output can handle up to 4 A resistive load. For pilot-duty applications, the rating is 2 A per point. The maximum total module load is 20 A for UL installations.
Q5: Are the eight outputs electrically isolated?
A: Yes. The eight relay outputs are individually isolated, allowing different AC or DC load voltages to be used on different output points. Field-to-logic isolation is specified at 1500 VAC.
Q6: What PLC is IC693MDL930E compatible with?
A: It is designed for the GE Fanuc Series 90-30 PLC and can be installed in an available I/O slot of either a 5-slot or 10-slot baseplate.
Q7: What are the dimensions and weight of IC693MDL930E?
A: The approximate dimensions are 50 × 140 × 150 mm, and the listed weight is approximately 0.35 kg. Actual packed shipping dimensions and weight will be higher.
Q8: What is IC693MDL930E commonly used for?
A: It is suitable for switching industrial loads such as solenoids, motor starters, indicator lamps and other AC/DC devices. The relay design makes it useful where electrical isolation and flexible load voltage are required.
