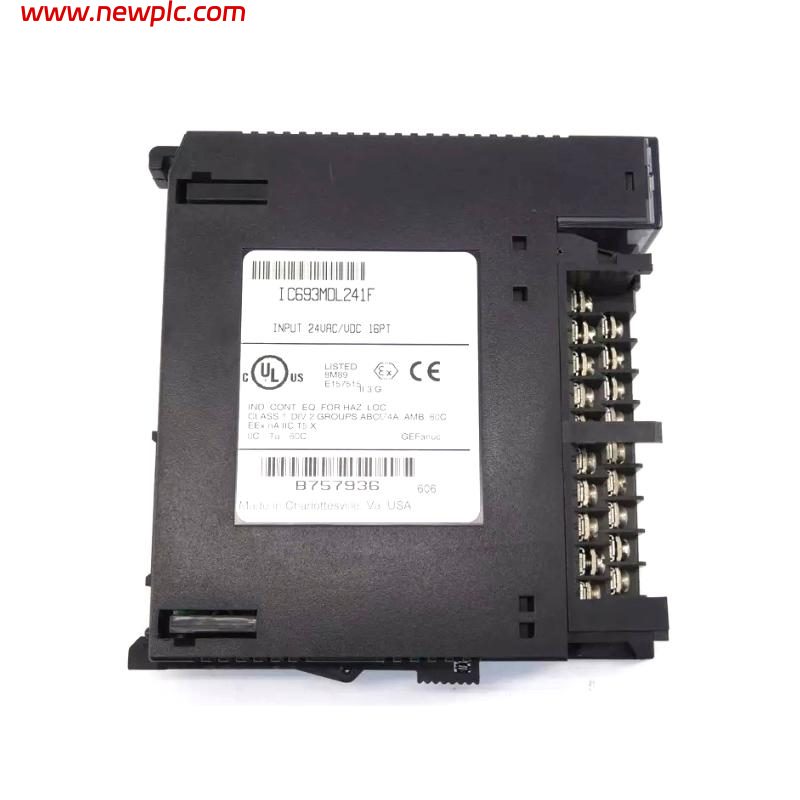

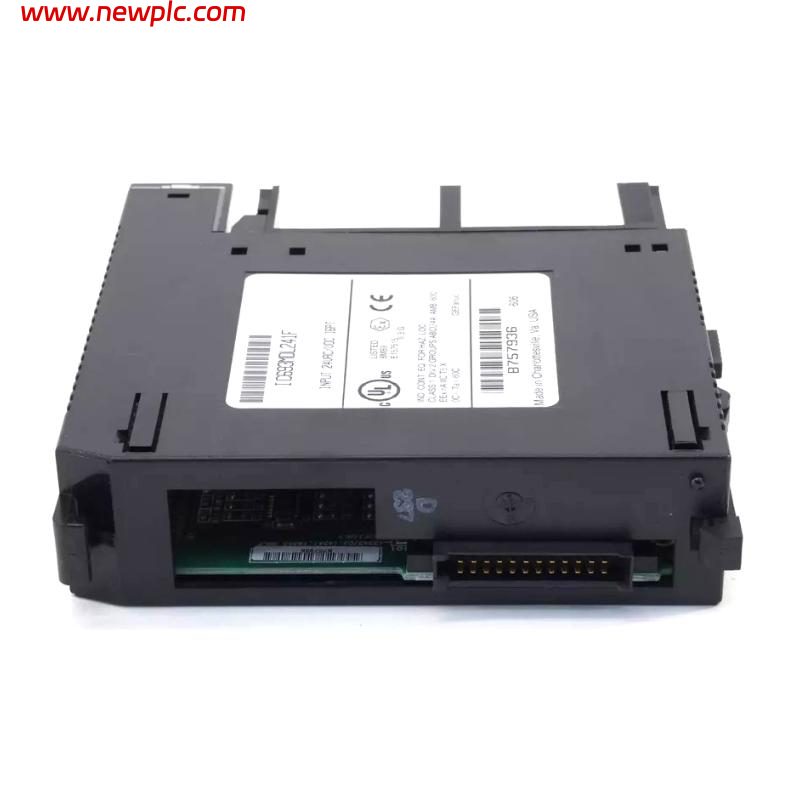

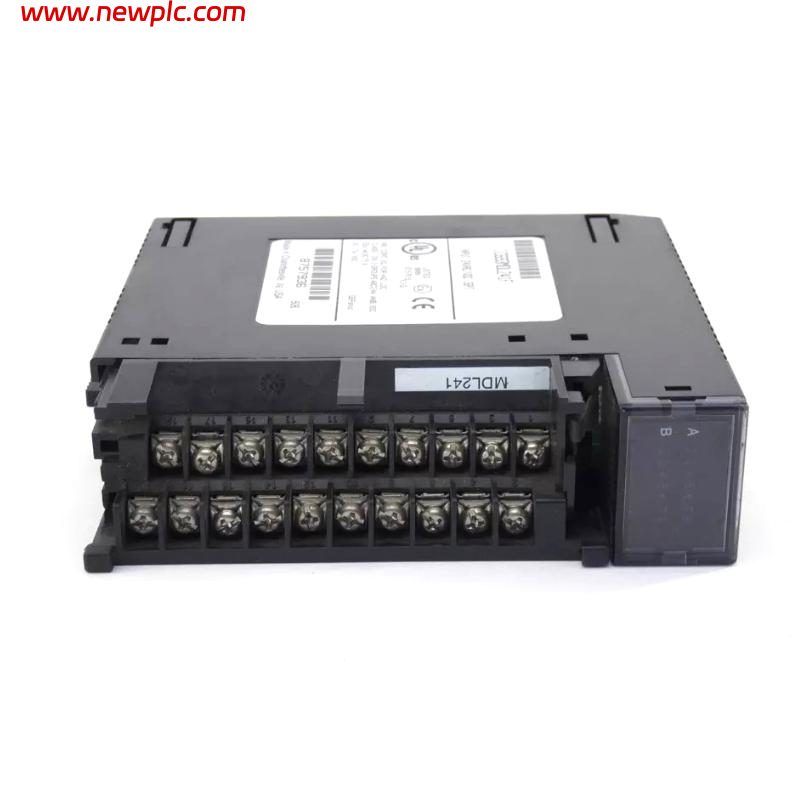

GE IC693MDL241D Discrete Input Module

FAQ

Q1: What is GE Fanuc IC693MDL241D?
A: IC693MDL241D is a 16-point discrete input module for the GE Fanuc Series 90-30 PLC. It accepts both 24 VAC and 24 VDC input signals.

Q2: How many inputs does IC693MDL241D have?
A: It has 16 input points arranged as one group with a single common power-input terminal.

Q3: What input voltage does IC693MDL241D support?
A: The rated input voltage is 24 VAC or 24 VDC, with an overall input range of 0 to 30 VAC/DC. For AC signals, the supported frequency is 50/60 Hz.

Q4: Can IC693MDL241D work with positive and negative DC logic?
A: Yes. The module is designed to support either positive or negative logic in DC input mode, which gives it flexibility when connecting different field devices.

Q5: What is the response time of IC693MDL241D?
A: The typical ON response time is 12 ms, while the typical OFF response time is 28 ms.

Q6: Is each input electrically isolated?
A: The module provides 1500 VAC isolation between the field side and the logic side. The 16 inputs share one common input group rather than being individually isolated.

Q7: What are the dimensions and weight of IC693MDL241D?
A: A commonly referenced physical size is approximately 50 × 150 × 150 mm, while supplier records list the weight around 0.30–0.50 kg. For shipping purposes, the packed dimensions and weight should be confirmed separately.

Q8: Is IC693MDL241D compatible with the Series 90-30 PLC?
A: Yes. It is specifically designed for the GE Fanuc Series 90-30 platform and can be installed in an available I/O slot of a 5-slot or 10-slot baseplate. Emerson documentation also lists IC693MDL241 as a supported 16-circuit 24 VAC/VDC input module.
