Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc / Emerson |
| Product Series | Series 90-30 |
| Part Number | IC693CPU311Z |

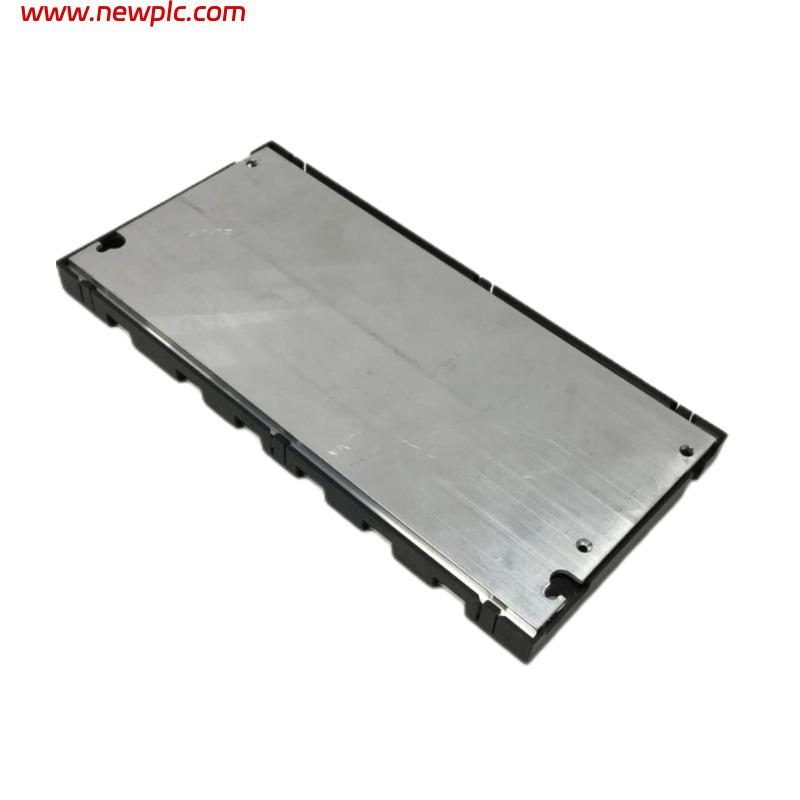

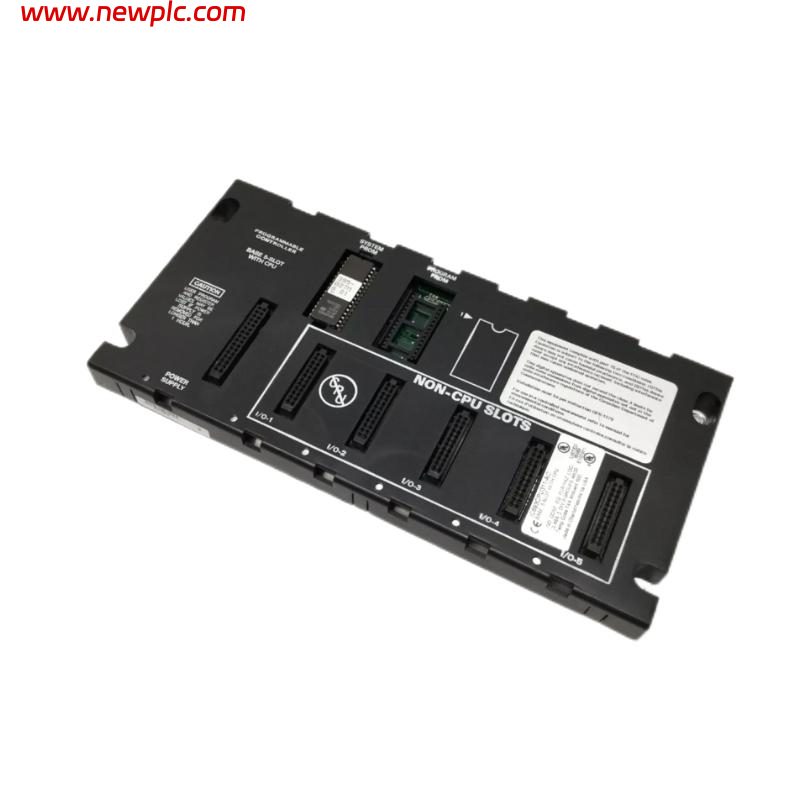

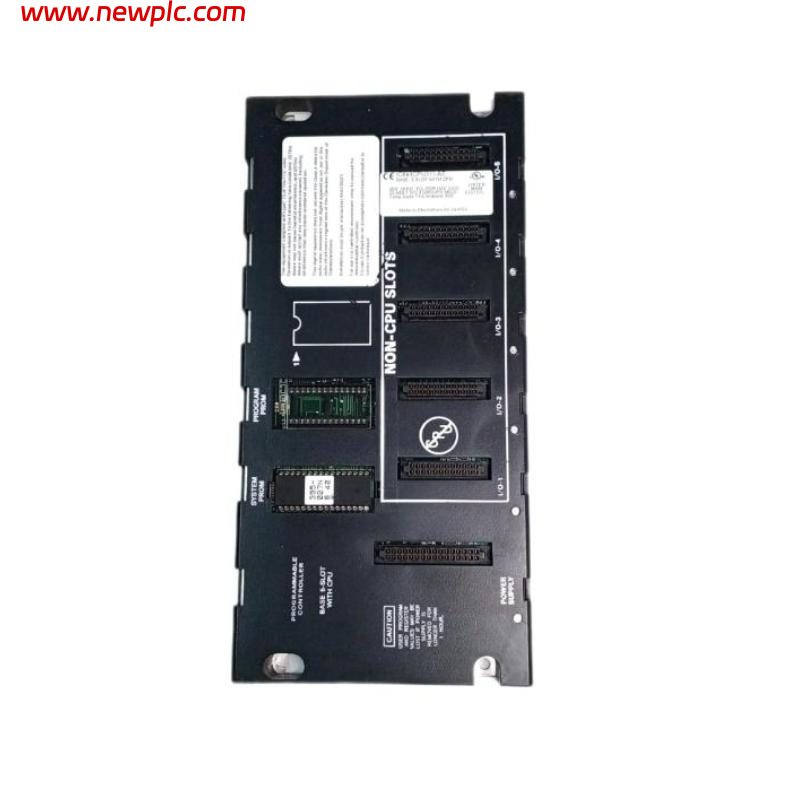

| Product Type | Embedded CPU Baseplate |
| CPU Type | 5-slot baseplate with embedded CPU |
| Processor | Intel 80188 |
| Processor Speed | 10 MHz |
| User Program Memory | 6 KB |
| Register Memory | 1 KB |
| Discrete I/O Capacity | Up to 160 inputs / 160 outputs* |
| Analog Input Capacity | 64 words |
| Analog Output Capacity | 32 words |
| Timers / Counters | 170 |
| Serial Communication | 1 × SNP / SNP-X slave interface |
| Communication Options | Ethernet, Profibus, FIP, GBC, GCM and GCM+ via compatible modules |
| Floating-Point Math | Not supported |
| Interrupts | Not supported |
| Expansion Baseplates | Not supported |
| Power Supply Requirement | 410 mA from +5 VDC |
| Typical Scan Rate | 18 ms per 1K of Boolean logic |
| Operating Temperature | 0°C to 60°C |
| Mounting | GE Series 90-30 rack / baseplate |
| Approx. Dimensions | 280 × 140 × 75 mm* |
| Approx. Weight | 0.9 kg |
FAQ
FAQ
Q1: What is GE Fanuc IC693CPU311Z?
A: IC693CPU311Z is a Series 90-30 embedded CPU baseplate with a built-in CPU311 processor. It provides the PLC processing function and five available module slots.
Q2: What processor does IC693CPU311Z use?
A: It uses an Intel 80188 processor running at 10 MHz.
Q3: How much program memory does IC693CPU311Z have?
A: The CPU311 provides up to 6 KB of user program memory and 1 KB of register memory.
Q4: How many I/O points can the CPU311 handle?
A: The CPU311 supports up to 160 discrete input points and 160 discrete output points, along with 64 words of analog inputs and 32 words of analog outputs.
Q5: Does IC693CPU311Z support Ethernet communication?
A: The CPU itself provides an SNP/SNP-X serial interface through the power-supply connector. Ethernet, Profibus, FIP, GBC, GCM and GCM+ communications can be added through compatible option modules.
Q6: Can IC693CPU311Z be expanded with additional racks?
A: No. Because the CPU311 is an embedded CPU, the system is limited to its single 5-slot baseplate and does not support expansion or remote racks.
Q7: What are the dimensions and weight of IC693CPU311Z?
A: The complete embedded CPU baseplate is approximately 280 × 140 × 75 mm, with a reference weight of about 0.9 kg. The actual weight can vary depending on the installed power supply and accessories.
Q8: Is IC693CPU311Z still available?
A: It is a legacy/discontinued GE Fanuc Series 90-30 component. Replacement units are generally sourced from industrial automation spare-parts suppliers, surplus inventory and refurbished-equipment channels. The Z revision should be specified when matching an existing installation.
