Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Multilin |
| Product Series | MMII / Motor Manager II |

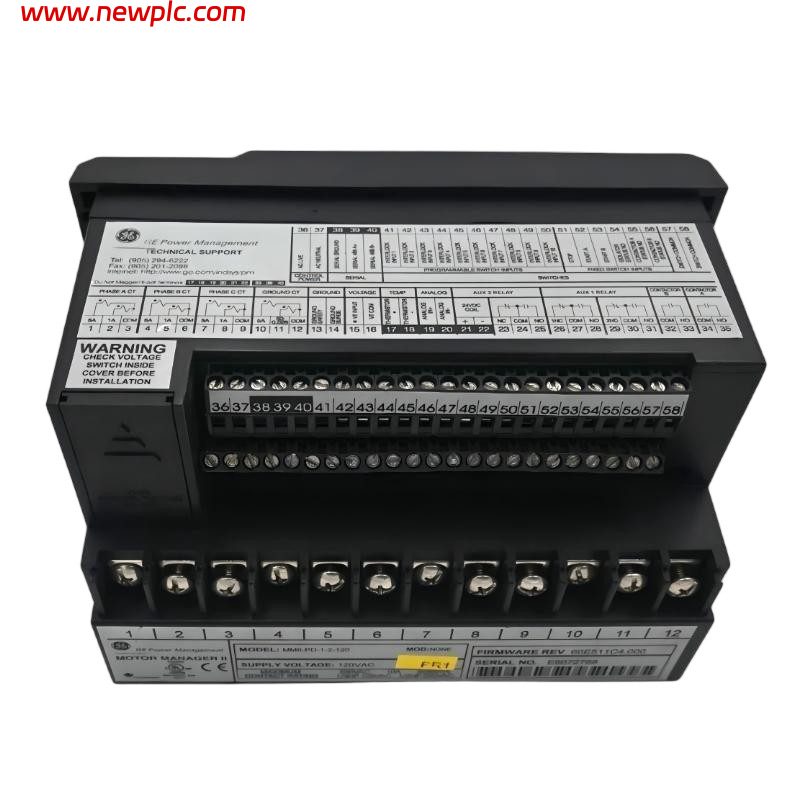

| Part Number | MMII-PD-1-2-120 |
| Alternative Part Number | MM2-PD-1-2-120 |
| Product Type | Motor Management / Protection Relay |
| Mounting | Panel mount with display |
| Control Voltage | 120 VAC |
| Option 1 | Process control, 10 process inputs, undervoltage autorestart and diagnostics |
| Option 2 | Enhanced motor protection, power measurement, thermistor, second contactor control and 2 process inputs |
| Display | 20 × 2-character LCD |
| User Interface | LCD, keypad and status LEDs |
| Analog Input | 4–20 mA |
| Communication | RS-485 / Modbus RTU |
| Communication Baud Rate | 1,200–19,200 bps |
| Protection Functions | Thermal overload, phase loss, phase imbalance, ground fault, stall/jam and voltage protection |
| Motor Control | Start/stop control, contactor control and undervoltage auto-restart |
| Diagnostics | Pre-trip data, event history and diagnostic information |
| Configuration Software | EnerVista MMII |
| Operating Temperature | 0°C to 60°C |
| Approx. Dimensions | 188 × 112 × 127 mm |
| Approx. Weight | 1.36 kg |
| Typical Applications | Motors, pumps, compressors, fans and MCC systems |
FAQ
FAQ
Q1: What is GE Multilin MMII-PD-1-2-120?
A: It is a Motor Manager II motor management and protection relay designed for industrial motor control and protection applications.
Q2: What does the “PD” in MMII-PD-1-2-120 mean?

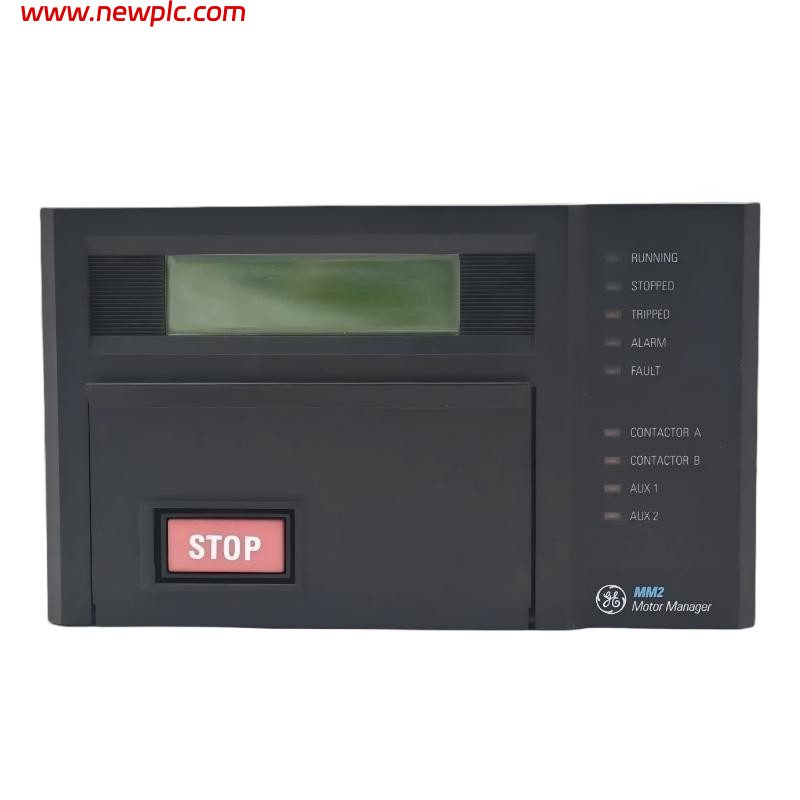

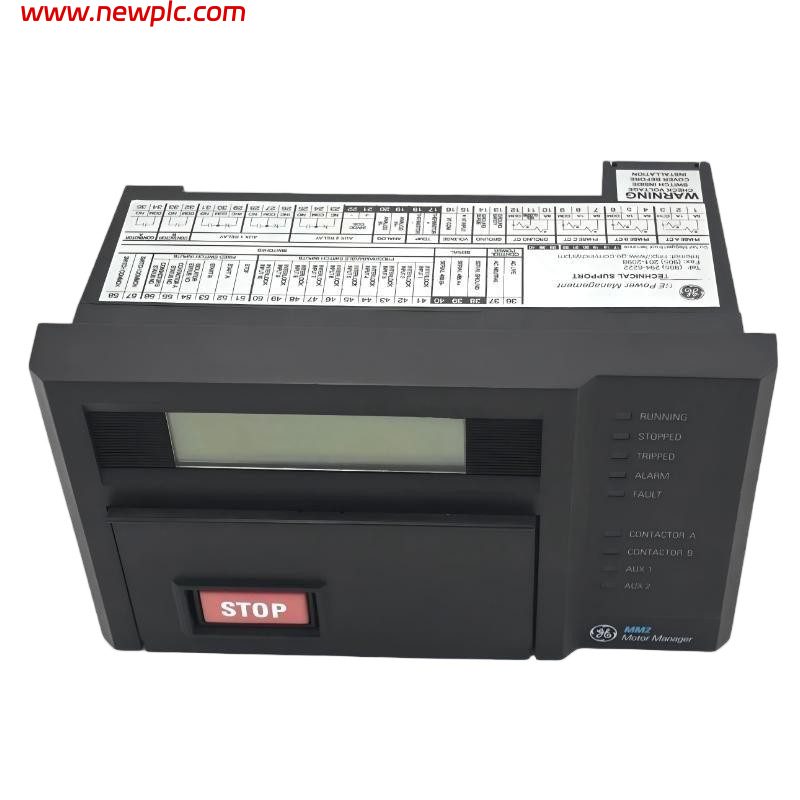

A: PD indicates the panel-mount version with a local display. The front panel provides an LCD, keypad and status indicators for local operation and monitoring.
Q3: What does the “1-2” configuration mean?
A: The 1 represents the process-control option, including process inputs, undervoltage autorestart and diagnostics. The 2 represents the enhanced protection option, including additional motor protection and control functions.
Q4: What power supply does MMII-PD-1-2-120 use?
A: The model is configured for 120 VAC control power. The “120” at the end of the part number identifies this control-voltage configuration.
Q5: What protection functions does the MMII-PD-1-2-120 provide?
A: It can provide protection against conditions such as thermal overload, phase loss, phase imbalance, ground fault, stalled/locked rotor, overvoltage and undervoltage. The exact functions available depend on the installed option configuration.
Q6: Does MMII-PD-1-2-120 support communication with a control system?
A: Yes. The MMII platform supports RS-485 communication and Modbus RTU, with commonly specified baud rates from 1,200 to 19,200 bps. This allows connection to supervisory control systems such as SCADA or DCS.
Q7: What are the dimensions and weight of MMII-PD-1-2-120?
A: The approximate dimensions are 188 × 112 × 127 mm, and the unit weighs approximately 1.36 kg (3 lb).
Q8: What is the MMII-PD-1-2-120 commonly used for?
A: It is used for motor protection, control, monitoring and diagnostics in applications such as pumps, compressors, fans and motor control centers. Its integrated functions can reduce the need for separate motor-protection and monitoring devices.
