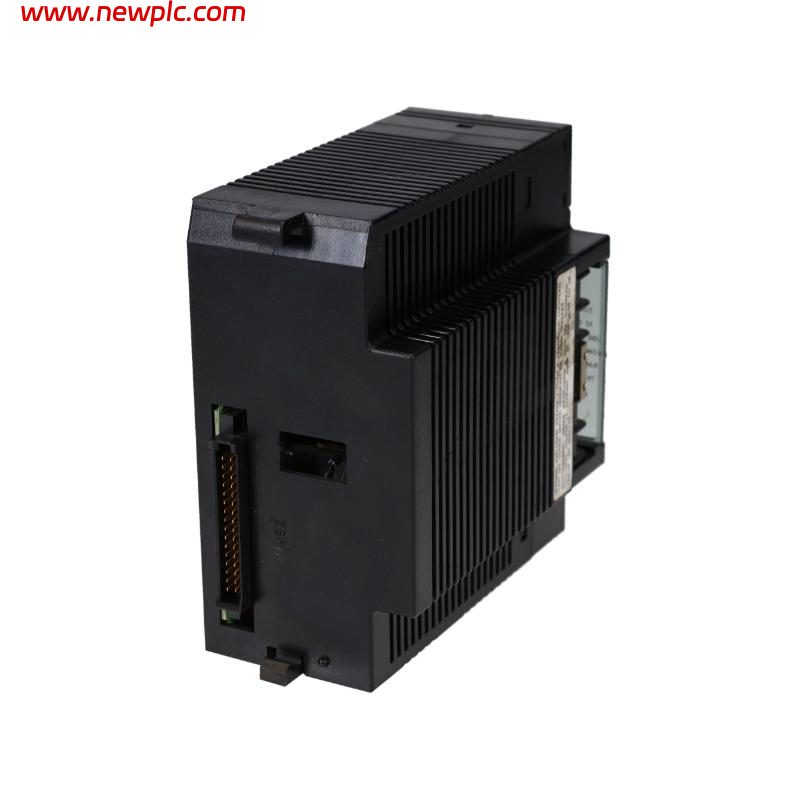

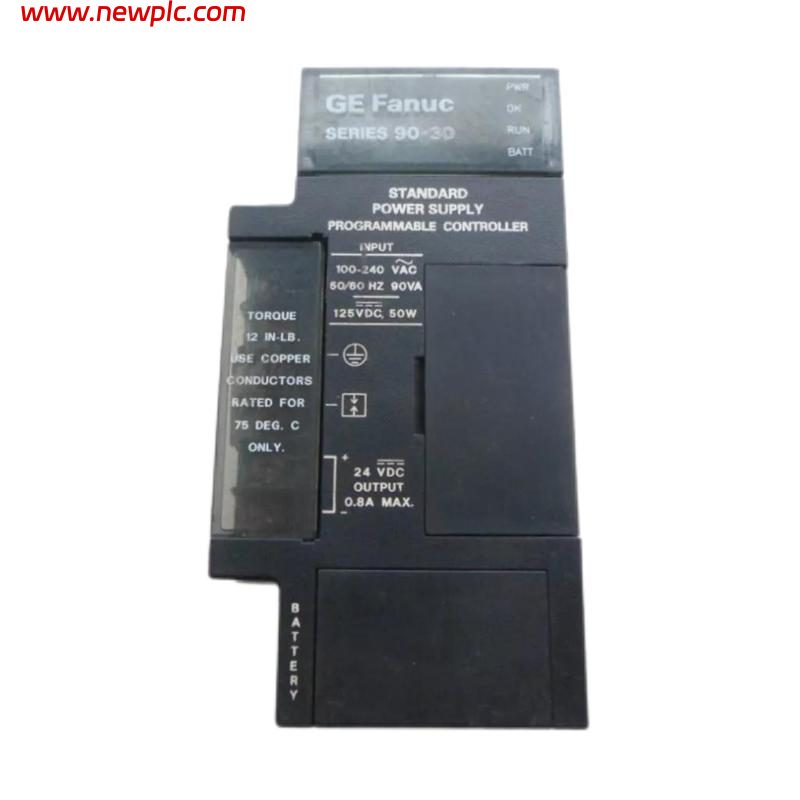

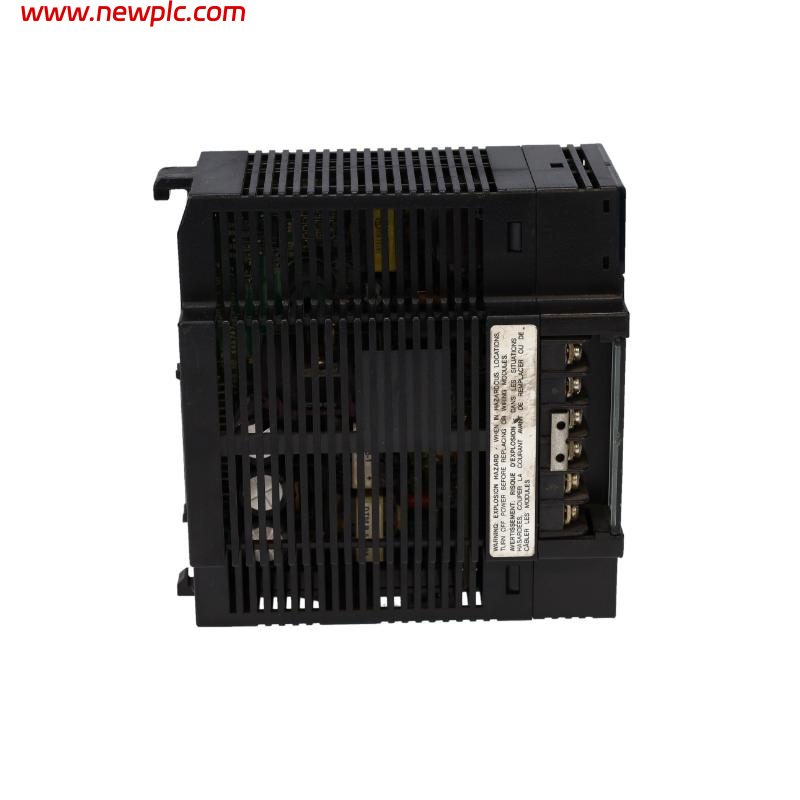

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC693PWR321S |
| Product Type | Standard Power Supply Module |
| Series | Series 90-30 |
| Function | Provides regulated DC power for Series 90-30 PLC CPUs, I/O modules, and external 24 VDC devices |
| Input Voltage Rating | 120/240 VAC or 125 VDC |
| AC Input Voltage Range | 85–264 VAC |
| DC Input Voltage Range | 100–300 VDC |
| Input Frequency | 47–63 Hz |
| Input Power | 90 VA maximum (AC input) |
| Input Power (DC) | 50 W maximum (DC input) |
| Inrush Current | 4 A peak maximum for 250 ms |
| Total Output Power | 30 W maximum |
| Output Channels | 3 outputs |
| 5 VDC Output | 5.0–5.2 VDC (5.1 VDC nominal), 15 W maximum |
| +24 VDC Relay Output | 24–28 VDC, 15 W maximum |
| Isolated +24 VDC Output | 21.5–28 VDC, 20 W maximum |
| Overvoltage Protection | 5 VDC output protection at approximately 6.4–7 VDC |
| Overcurrent Protection | 5 VDC output limited to approximately 4 A maximum |
| Hold-up Time | 20 ms minimum |
| Communication Port | RS-485 serial port |
| Battery Backup | Supports Series 90-30 CPU battery connection |
| Installation Position | Leftmost slot of Series 90-30 baseplate |
| Compatible Systems | GE Fanuc Series 90-30 PLC |
| LED Indicators | Power supply status LEDs (PWR, OK, SYSTEM, BATT depending on CPU configuration) |
| Mounting Method | Rack-mounted module |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 120 × 70 × 130 mm (4.72 × 2.76 × 5.12 in.) |
| Weight | Approx. 0.50 kg (1.10 lb) |
| Hardware Revision | S |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693PWR321S used for?
The IC693PWR321S is used to supply regulated DC power to GE Fanuc Series 90-30 PLC systems, including CPUs, I/O modules, and external 24 VDC devices requiring isolated power.
Q2: What input voltage does the IC693PWR321S support?
The module supports 120/240 VAC or 125 VDC input, with an AC operating range of 85–264 VAC and a DC operating range of 100–300 VDC.
Q3: How much power can the IC693PWR321S provide?
The IC693PWR321S provides a total maximum output power of 30 watts, distributed among its 5 VDC, +24 VDC relay, and isolated +24 VDC outputs.
Q4: What outputs are available on the IC693PWR321S?
The module provides three outputs: 5 VDC at 15 W, 24 VDC relay power at 15 W, and isolated 24 VDC output at 20 W maximum.
Q5: Where should the IC693PWR321S be installed in a Series 90-30 rack?
The IC693PWR321S must be installed in the leftmost slot of the Series 90-30 baseplate to provide power to the PLC rack.
Q6: Does the IC693PWR321S include protection features?
Yes. The power supply includes overvoltage protection, overcurrent protection, and a minimum 20 ms hold-up time to help maintain stable PLC operation during short power interruptions.
Q7: Is the IC693PWR321S compatible with other GE Fanuc PLC families?
The IC693PWR321S is specifically designed for the GE Fanuc Series 90-30 PLC platform and should not be used as a direct replacement for power supplies from other PLC series without compatibility verification.
Q8: What should be checked before replacing an IC693PWR321S module?
Before replacement, check the input voltage type, Series 90-30 rack compatibility, total power requirements, wiring connections, grounding conditions, and connected module load to ensure the new power supply operates correctly.
