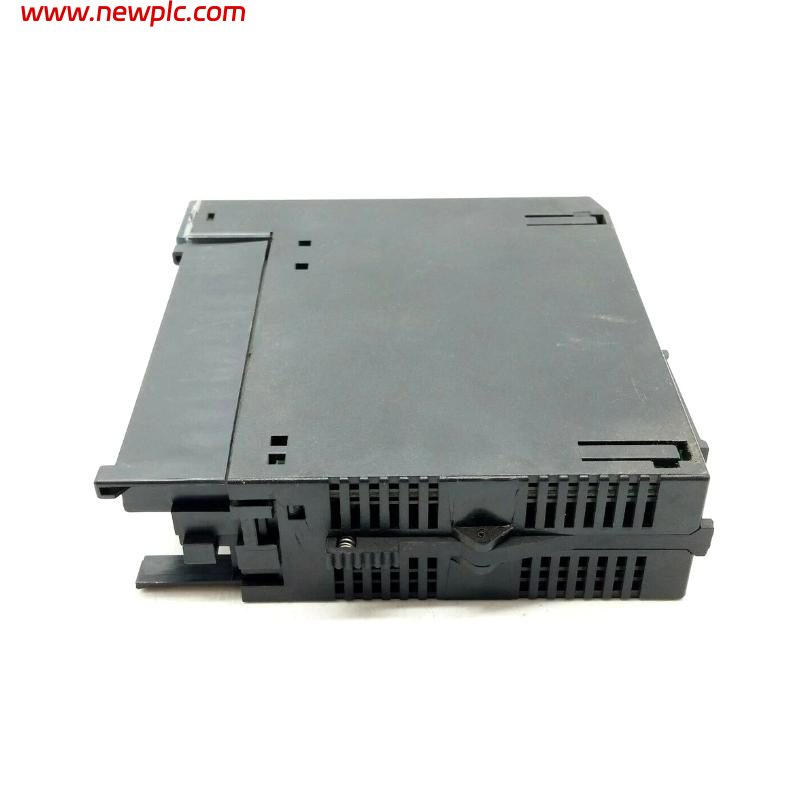

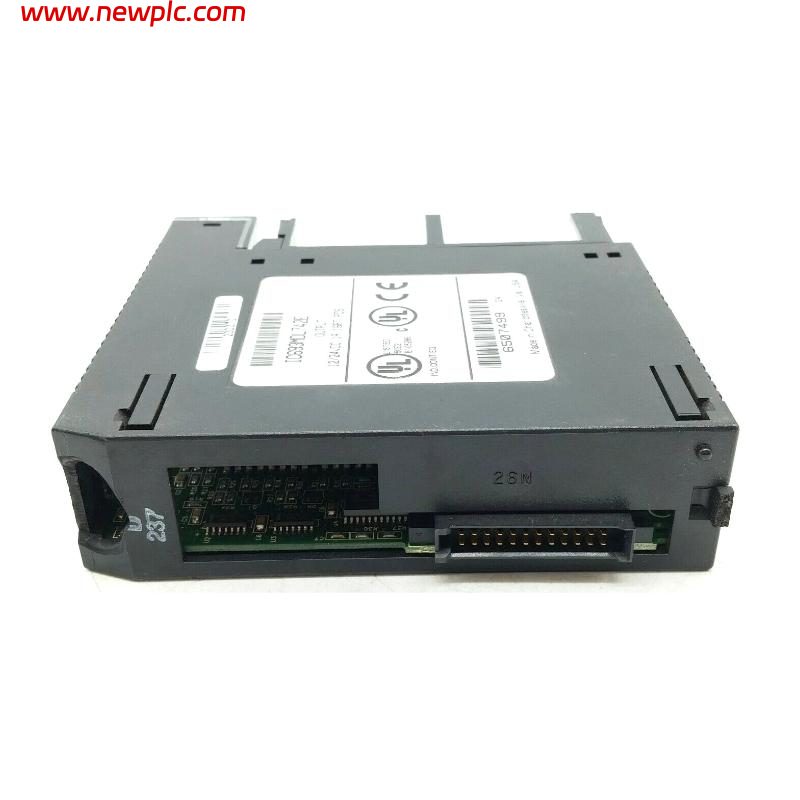

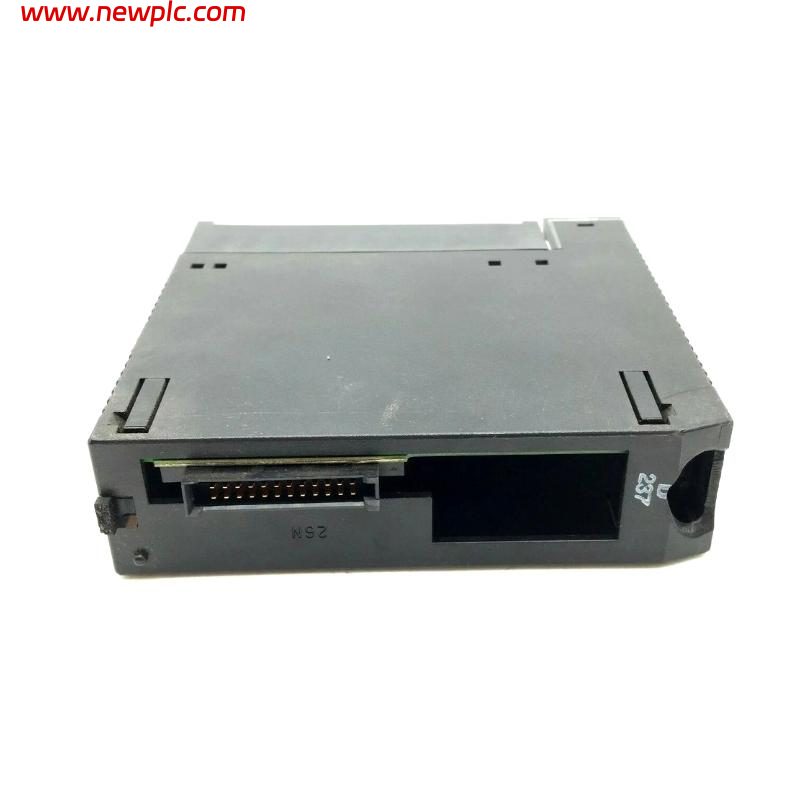

GE IC693MDL742E Discrete DC Output Module

FAQ

Q1: What is the GE Fanuc IC693MDL742E used for?
The IC693MDL742E is used in Series 90-30 PLC systems to control 12/24 VDC field devices such as solenoid valves, relays, contactors, motor starters, and indicator lamps.

Q2: How many output channels does the IC693MDL742E provide?
The module provides 16 discrete output points, arranged as two groups of eight outputs with separate common power terminals for each group.

Q3: What type of outputs does the IC693MDL742E support?
The module uses positive logic (sourcing) transistor outputs, meaning it supplies current from the positive power bus to connected field loads.

Q4: What is the maximum output current of the IC693MDL742E?
Each output point can handle up to 1 A maximum current. The maximum current per group is 4 A at 50°C and 3 A at 60°C.

Q5: Does the IC693MDL742E have short circuit protection?
Yes. The module includes Electronic Short Circuit Protection (ESCP), which monitors output groups, protects the module from damage, and provides fault indication when a short circuit occurs.

Q6: Does the IC693MDL742E require an external power supply?
Yes. The module requires a user-provided 12/24 VDC field power supply to energize connected output devices. The PLC backplane supplies power only for the module electronics.

Q7: What devices can be connected to the IC693MDL742E outputs?
The module can drive industrial DC loads including motor starters, solenoids, relay coils, valves, and status indicators commonly used in automation systems.

Q8: What should be checked before replacing an IC693MDL742E module?
Before replacement, verify the Series 90-30 rack compatibility, 12/24 VDC field supply, output wiring, load current requirements, terminal connections, and PLC hardware configuration to ensure correct operation after installation.
