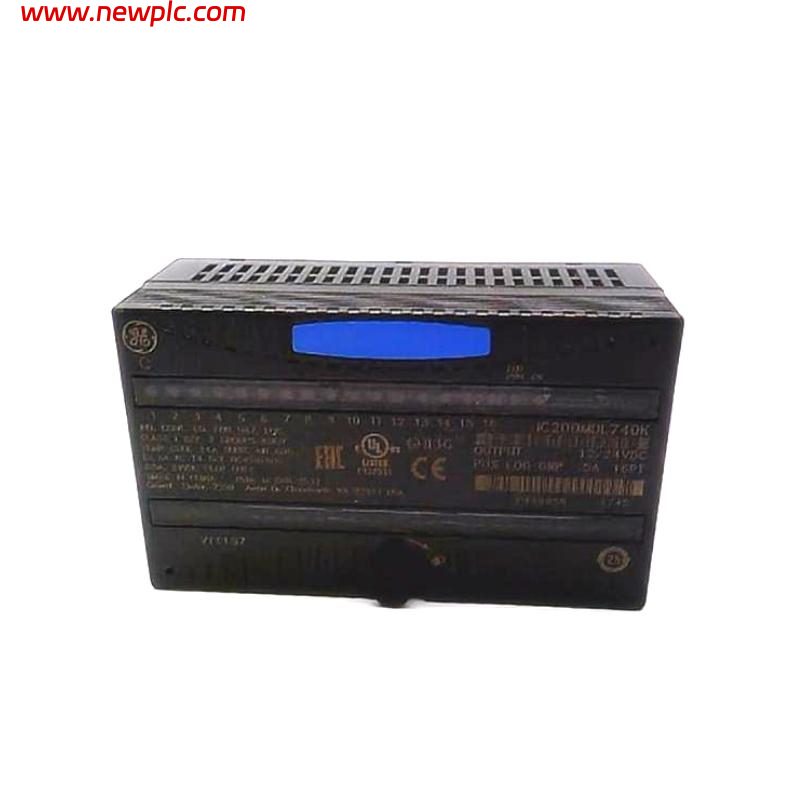

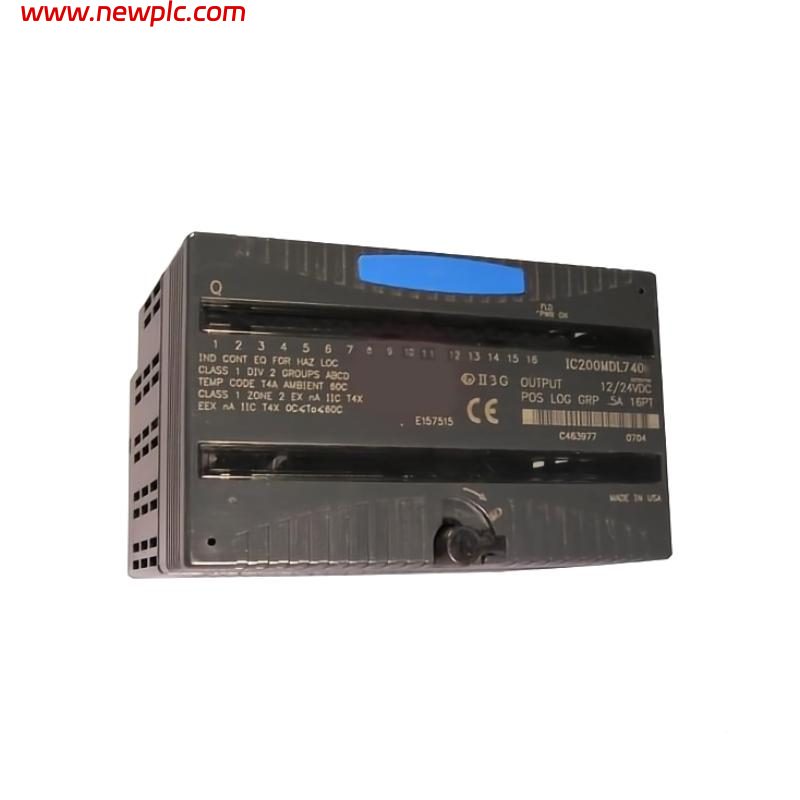

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC200MDL740B |
| Product Type | Discrete DC Output Module |
| Series | VersaMax I/O |
| Function | Provides digital DC output signals for controlling external field devices |
| Output Type | Positive Logic (Sourcing) Transistor Output |
| Number of Output Points | 16 points |
| Output Groups | 1 group of 16 outputs |
| Nominal Output Voltage | 12/24 VDC |
| Output Voltage Range | 10.2–30 VDC |
| Output Current | 0.5 A maximum per point |
| Maximum Inrush Current | 2 A maximum for 100 ms |
| Output Voltage Drop | 0.3 V maximum |
| Output Leakage Current | 0.5 mA maximum at 30 VDC |
| Output Response Time | 0.2 ms ON / 1.0 ms OFF maximum |
| Isolation | No channel-to-channel isolation |
| Protection | No internal output fuses |
| External Power Supply | 10.2–30 VDC field supply required |
| Backplane Current Consumption | 45 mA maximum @ 5 VDC |
| LED Indicators | Individual output status LEDs, OK LED, FLD PWR LED |
| Module ID | FFFF8080 |
| Special Feature | Supports 12 VDC operation from revision B and later |
| Compatible Carrier Bases | IC200CHS series VersaMax carriers |
| Mounting Method | DIN rail mounting |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC and VersaMax Distributed I/O |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 110 × 66.8 × 50 mm (4.33 × 2.63 × 1.97 in.) |
| Weight | Approx. 0.26 kg (0.56 lb) |
| Hardware Revision | B |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200MDL740B used for?
The IC200MDL740B is used in VersaMax PLC systems to control external DC field devices by providing 12/24 VDC digital output signals. Typical applications include controlling relays, valves, actuators, and indicator lights.
Q2: How many output channels does the IC200MDL740B provide?
The module provides 16 discrete output points arranged in one group of 16 outputs. Each output point has an individual LED indicator for status monitoring.
Q3: What type of outputs does the IC200MDL740B support?
The module uses positive logic (sourcing) transistor outputs, meaning the output supplies current from the positive side of the DC power supply to the connected load.
Q4: What voltage and current ratings does the IC200MDL740B support?
The module operates with 10.2–30 VDC input power, with a nominal rating of 12/24 VDC. Each output point can handle up to 0.5 A continuous current.
Q5: Does the IC200MDL740B require an external power supply?
Yes. The module requires an external 10.2–30 VDC field power supply to provide power for switching connected loads. The VersaMax backplane only supplies logic power for the module itself.

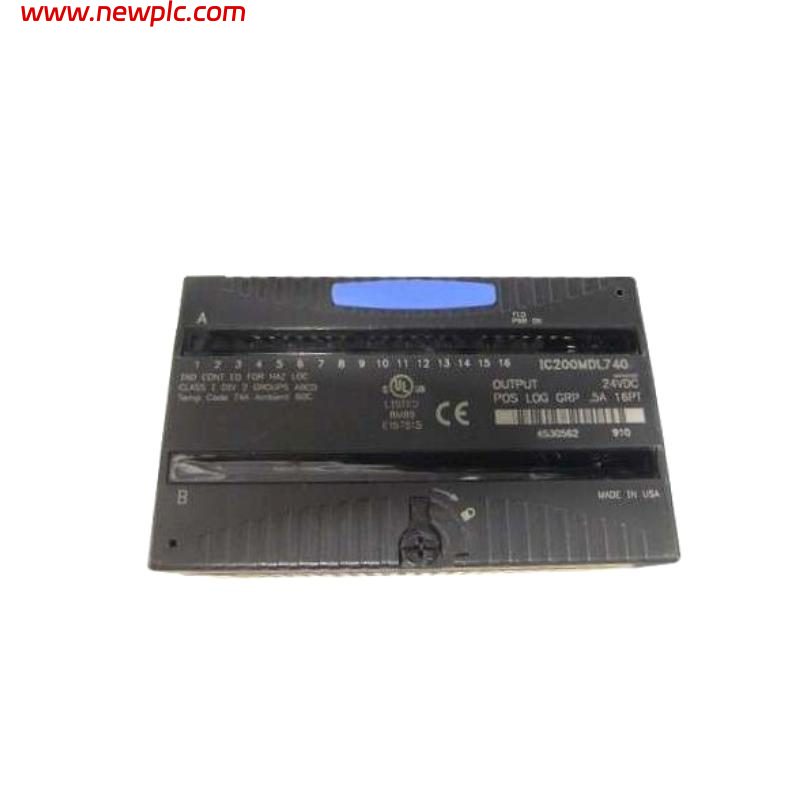

Q6: What is the difference between IC200MDL740 and IC200MDL740B?
The main difference is that the IC200MDL740B and later revisions support 12 VDC output operation. Earlier versions were primarily intended for 24 VDC applications.
Q7: Does the IC200MDL740B provide output protection?
The module does not include internal output fuses or individual output protection mechanisms. External protection should be considered when connecting loads that may generate high current or inductive spikes.
Q8: What should be checked before replacing an IC200MDL740B module?
Before replacement, verify the VersaMax carrier compatibility, field power supply voltage, output wiring, connected load current, module configuration, and PLC hardware settings to ensure proper operation after installation.
