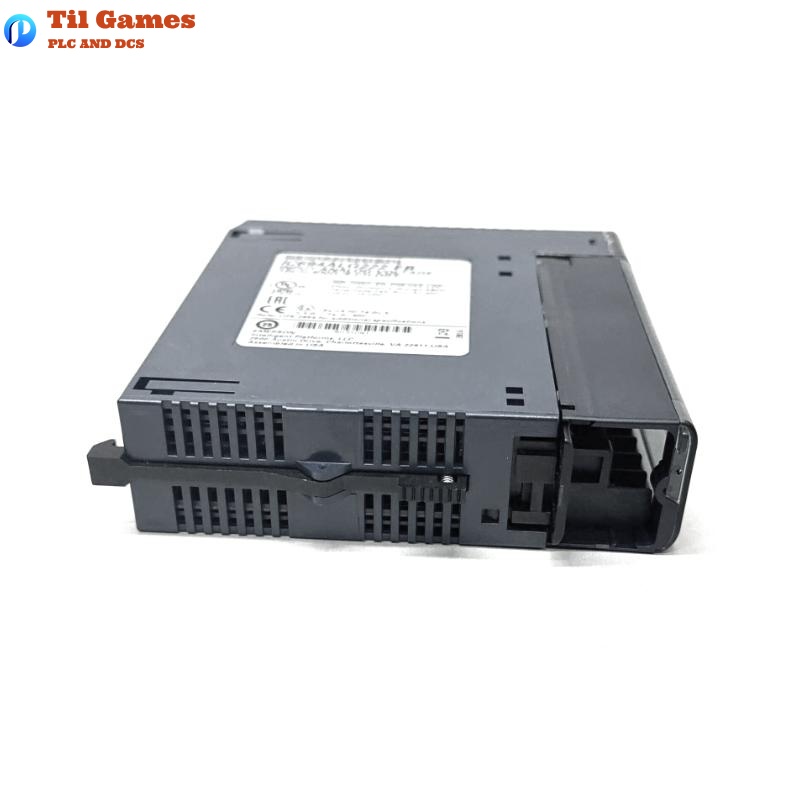

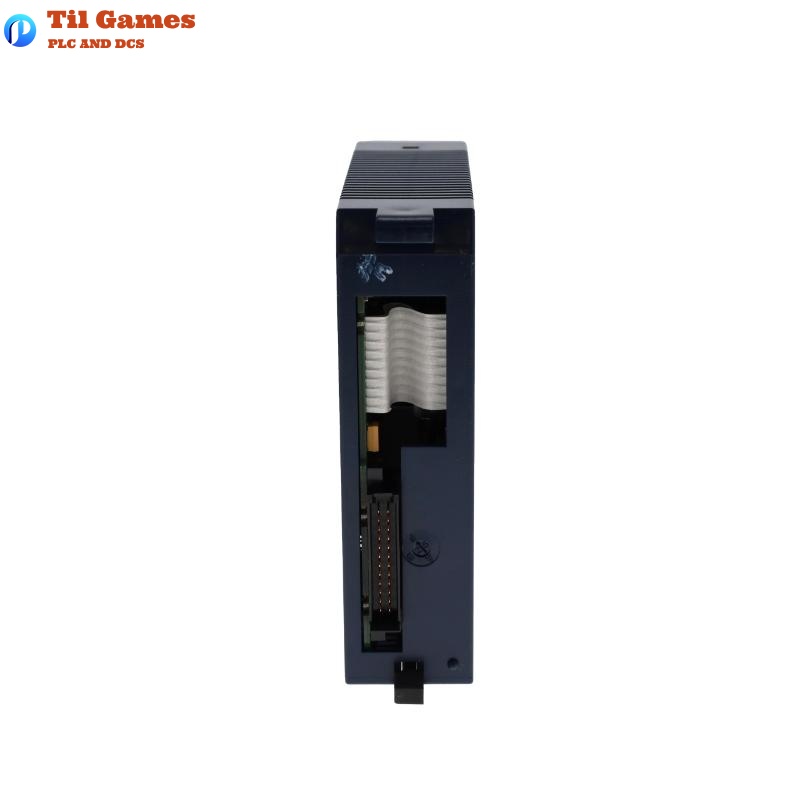

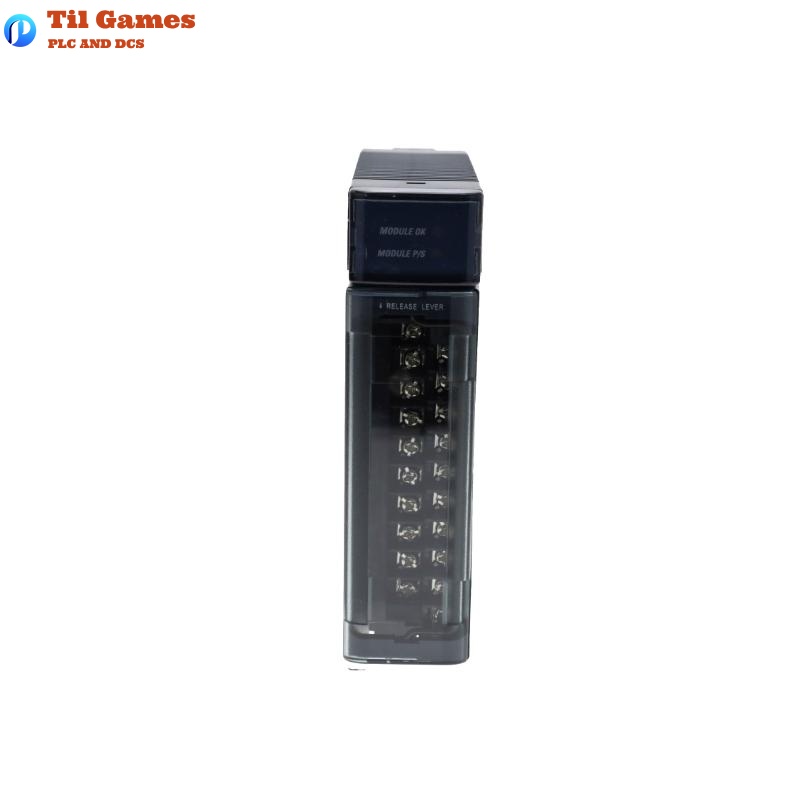

Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Analog Input Module |
| Number of Channels | 16 Single-ended or 8 Differential |
| Input Voltage Ranges | 0 to 10 V (unipolar), -10 to +10 V (bipolar), configurable per channel |
| Resolution | 2.5 mV (unipolar), 5 mV (bipolar) |
| Accuracy at 25°C | ±0.25% of full scale |
| Accuracy over temperature range | ±0.5% of full scale |
| Linearity | <1 LSB |
| Input Impedance | >500 kΩ (single-ended), >1 MΩ (differential) |
| Input Filter Frequency | 41 Hz (single-ended), 82 Hz (differential) |
| Update Rate | 6 ms (16 single-ended channels), 3 ms (8 differential channels) |
| Isolation | 250 VAC continuous, 1500 VAC for 1 minute |
| Common Mode Voltage | ±11 V (differential) |
| Cross-Channel Rejection | >80 dB (DC to 1 kHz) |
| Internal Power Consumption | 112 mA @ 5 VDC, 41 mA @ 24 VDC isolated |
| Alarm Limit Support | High/Low alarm configurable per channel |
| Data Format | 16-bit signed integer (2’s complement) |
| Mounting | RX3i Universal or Expansion Backplane |
| Dimensions | 34 x 145 x 140 mm |
| Weight | 0.29 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What input modes are supported by IC694ALG222?
A1: The module supports single-ended and differential input modes. It provides 16 channels in single-ended mode or 8 channels in differential mode.
Q2: Can each channel be configured individually?
A2: Yes, each channel can be independently configured for unipolar (0 to 10 V) or bipolar (-10 to +10 V) input ranges.
Q3: What is the resolution of this module?
A3: The resolution is 2.5 mV per count in unipolar mode and 5 mV per count in bipolar mode.
Q4: Does the module support alarm limits?
A4: Yes, high and low alarm limits can be set for each channel based on the configured voltage range.
Q5: What type of electrical isolation is provided?
A5: Optical isolation is provided with 250 VAC continuous and 1500 VAC for 1-minute withstand voltage.
Q6: What happens if the configuration is not received from the CPU?
A6: The MODULE OK LED will flash rapidly to indicate that configuration data has not been received.
Q7: Can this module be installed in any slot of the RX3i backplane?
A7: Yes, it can be installed in any I/O slot of an RX3i Universal or Expansion backplane.
Q8: What is the default voltage range for the module?
A8: The default configuration is unipolar, with an input voltage range of 0 to 10 V.
