Technical Specifications
| Parameter | Description |
|---|---|

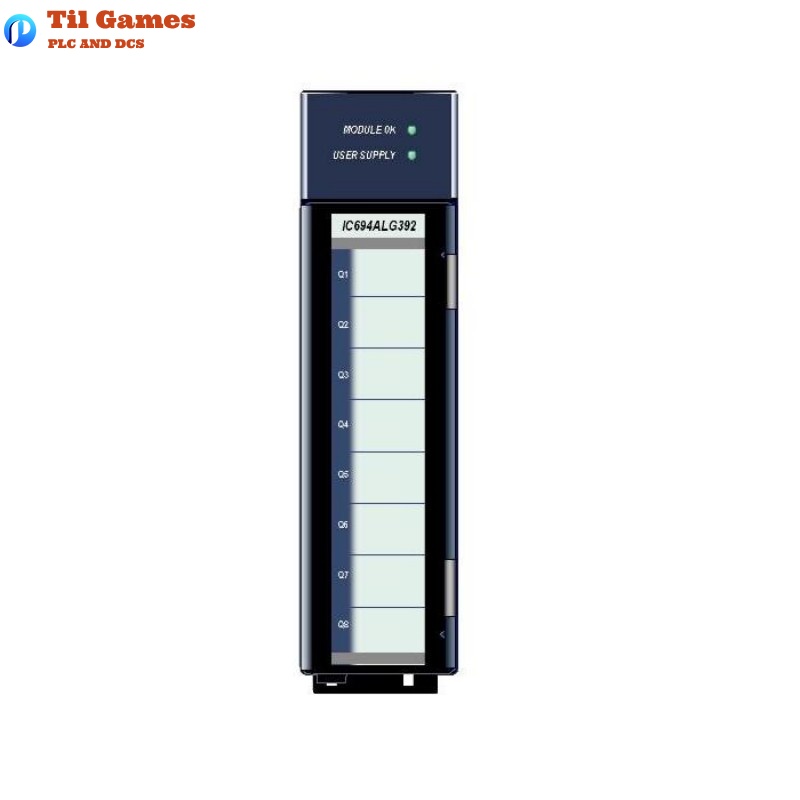

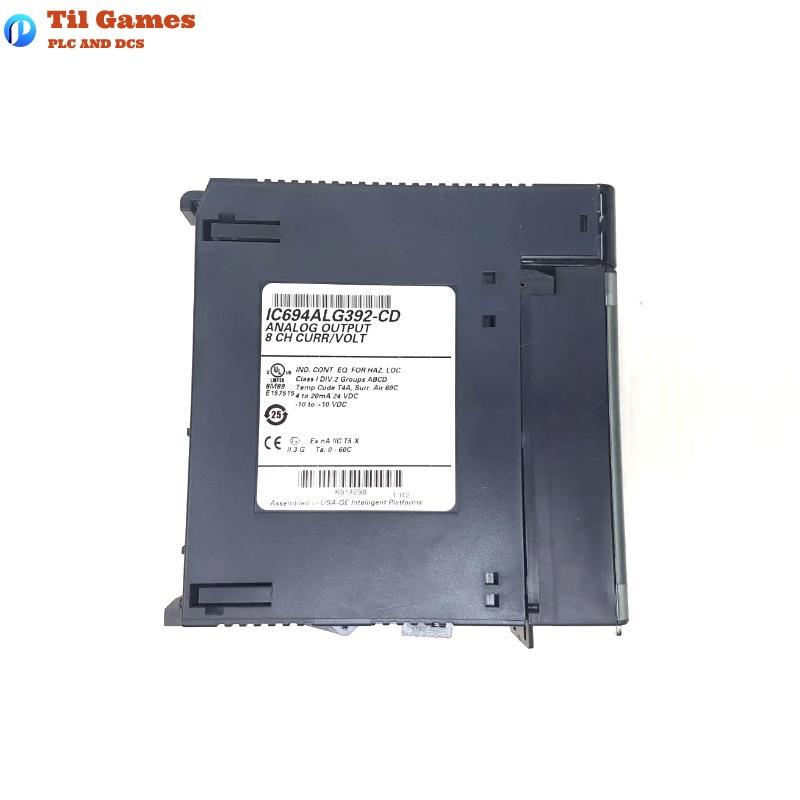

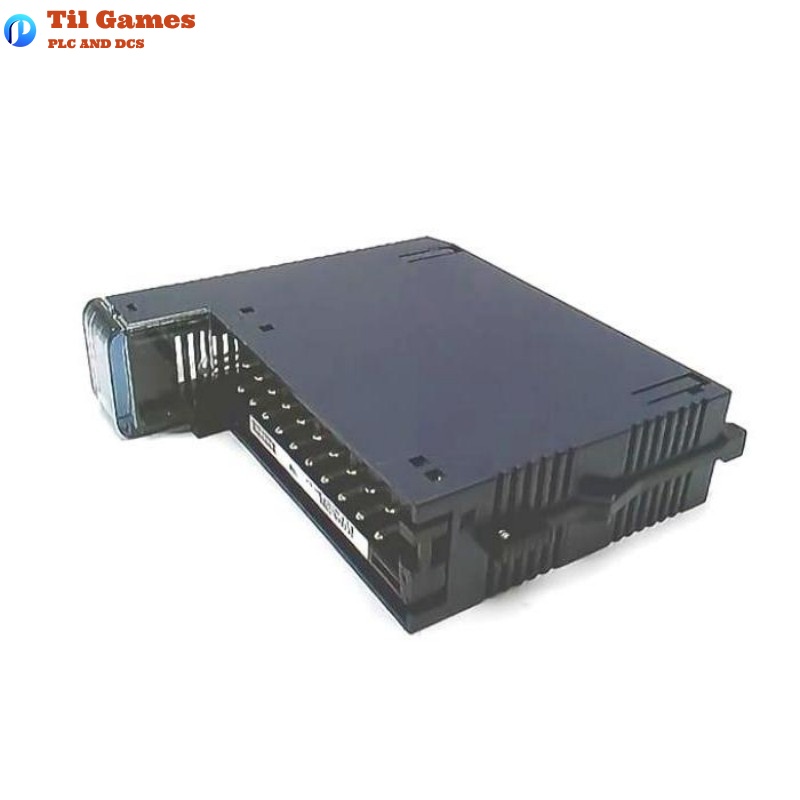

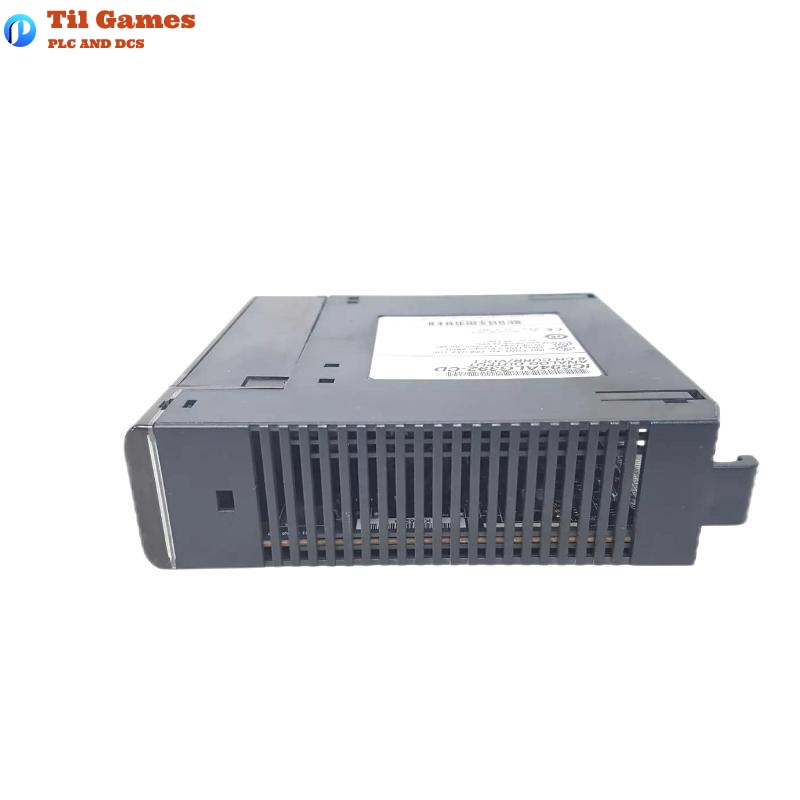

| Model | IC694ALG392 |
| Number of Channels | 8 single-ended channels |
| Output Types | Voltage: 0–10V, -10–+10V; Current: 0–20mA, 4–20mA |
| Resolution | Voltage: 0.3125mV/bit; Current: 0.5–0.625μA/bit |
| Update Rate | 8 ms for all 8 channels (approx.) |
| Calibration Accuracy | Voltage: ±0.25% FS @ 25°C; Current: ±0.1% FS @ 25°C |
| Operating Voltage (User Supply) | 24 VDC nominal (range 20–30 VDC) |
| Power Consumption | 110 mA @ +5 VDC (backplane), 315 mA @ 24 VDC (user supply) |
| Load (Voltage Mode) | ≥2 kΩ, ≤1 µF |
| Load (Current Mode) | 0–1350 Ω (depending on VUSER) |
| Isolation | 250 VAC continuous, 1500 VAC for 1 minute |
| Field Wiring | Screw terminals, voltage/current per channel separately |
| LED Indicators | OK (module status), USER OK (user supply status) |
| Voltage Ripple Tolerance (External PSU) | ≤10% |
| PSRR | Current: 5–10 μA/V; Voltage: 25–50 mV/V |
| Output Fault Detection | Open wire detection for current channels |
| Dimensions (W x H x D) | 34 x 145 x 140 mm |
| Weight | 0.299 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the IC694ALG392 support?
A1: It supports up to 8 single-ended analog output channels.
Q2: Can each channel be configured independently?
A2: Yes, each channel can be individually configured for voltage or current output.
Q3: What is the resolution of output signals?
A3: For voltage, the resolution is 0.3125 mV/bit. For current, it is 0.5 μA/bit (4–20mA) and 0.625 μA/bit (0–20mA).
Q4: Does the module support output holding in STOP mode?
A4: Yes, it can either hold the last state or default to zero based on configuration.
Q5: What power supply is required?
A5: A user-supplied 24 VDC external power supply (20–30 VDC range) is needed.
Q6: How is output accuracy affected by temperature?
A6: Typical accuracy at 25°C is ±0.1% (current) and ±0.25% (voltage). It may degrade slightly at temperature extremes.
Q7: Is the module isolated from the backplane?
A7: Yes, it provides 250 VAC continuous isolation and 1500 VAC for 1 minute.
Q8: Does the module detect wiring issues?
A8: Yes, it includes broken wire detection for each current output channel.
