Technical Specifications
| Parameter | Description |
|---|---|

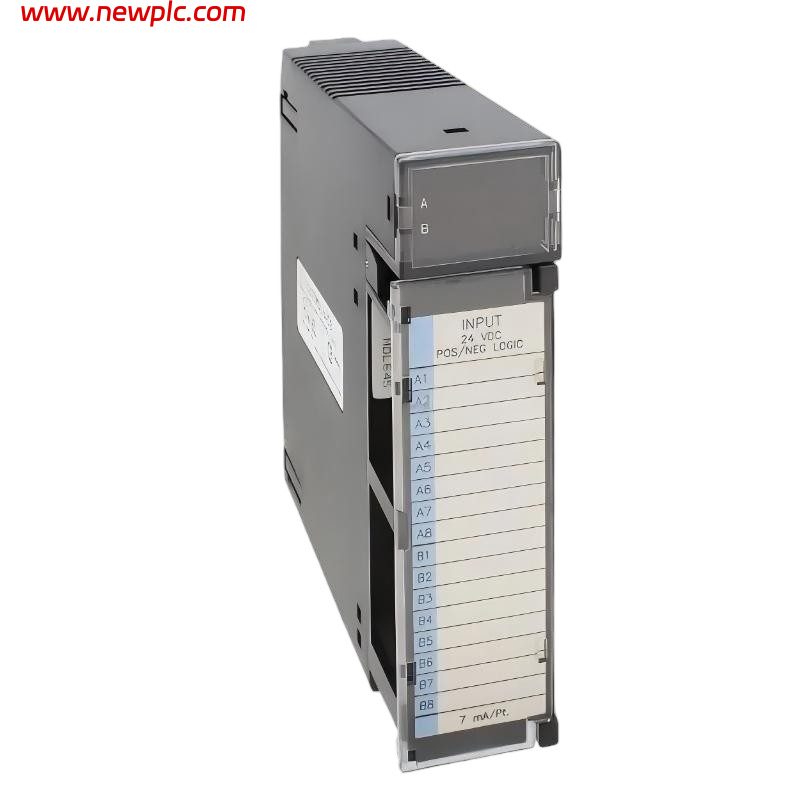

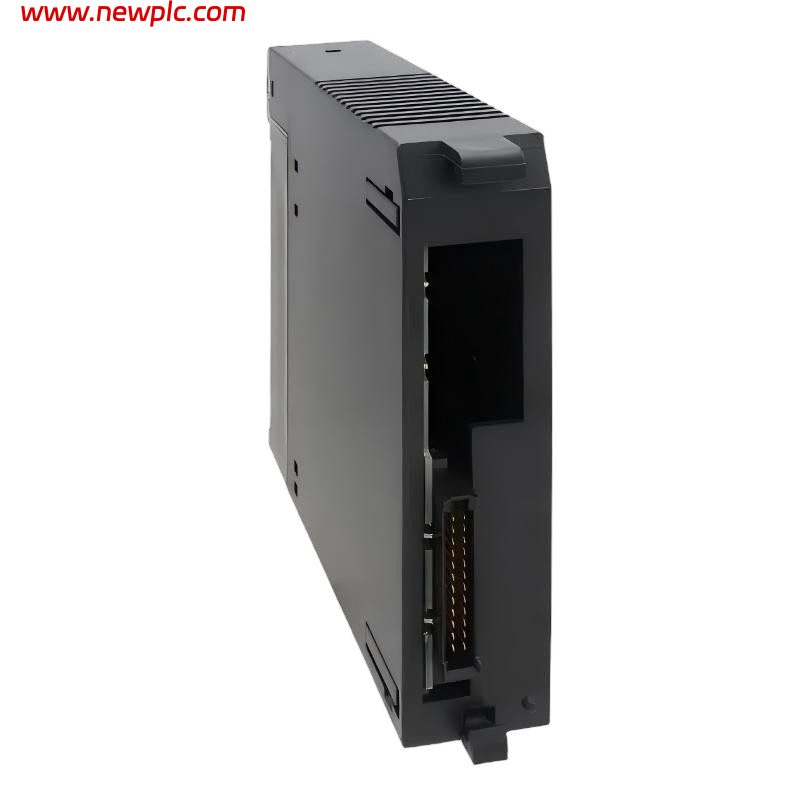

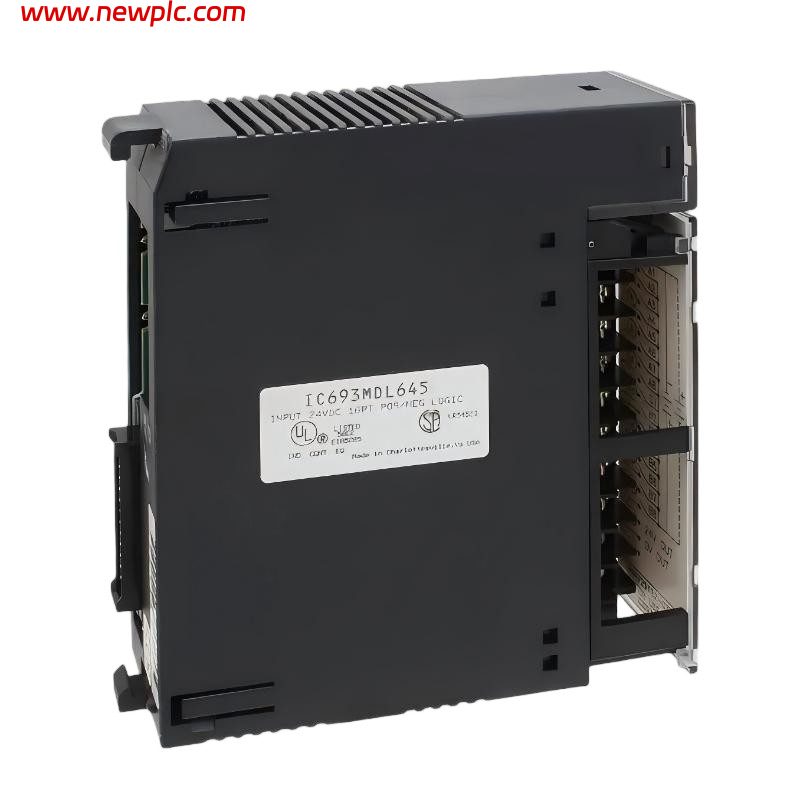

| Product Name | GE Fanuc / Emerson IC694MDL645 |
| Part Number | IC694MDL645 |
| Product Type | Discrete Input Module (PACSystems RX3i I/O Module) |
| Manufacturer | Emerson Automation (formerly GE Fanuc) |
| Series | PACSystems RX3i |
| Function | Receives 24 VDC digital signals from field devices and converts them into PLC input data |
| Application | Industrial automation / RX3i PLC systems / distributed control systems |
| Input Type | DC discrete input |
| Input Voltage Range | 0 – 30 VDC |
| Nominal Input Voltage | 24 VDC |
| Number of Channels | 16 inputs |
| Channel Grouping | 1 group (common return) |
| Input Current | ~7 mA per channel |
| ON-State Voltage | 11.5 – 30 VDC |
| OFF-State Voltage | 0 – 5 VDC |
| Response Time | ~7 ms typical |
| Isolation | 1500–2500 VAC field-to-backplane isolation (model dependent) |
| Status Indicators | 16 LED channel indicators |
| Backplane Power Consumption | ~80 mA @ 5 VDC |
| External Power Consumption | ~125 mA @ 24 VDC |
| Mounting Type | RX3i rack-mounted module |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH non-condensing |
| Dimensions (W × H × D) | Approx. 130 × 130 × 30 mm |
| Weight | Approx. 0.16 – 0.38 kg (varies by revision) |
FAQ
FAQ
Q1: What is IC694MDL645 used for?
A1: It is used to receive 24 VDC digital signals from field devices such as sensors, switches, and pushbuttons in RX3i PLC systems.
Q2: Is IC694MDL645 a module or a cable?
A2: It is a discrete input module, not a cable.
Q3: How many inputs does it have?
A3: It provides 16 input channels.
Q4: What voltage does it support?
A4: It supports 0–30 VDC input signals with a nominal 24 VDC rating.
Q5: What PLC system is it compatible with?
A5: It is used in Emerson GE Fanuc PACSystems RX3i platforms.
Q6: What is its response time?
A6: Approximately 7 ms typical.
Q7: What are its physical dimensions?
A7: Approximately 130 × 130 × 30 mm.
Q8: What is its weight?
A8: Approximately 0.16–0.38 kg depending on revision.
