Technical Specifications
| Parameter | Description |
|---|---|

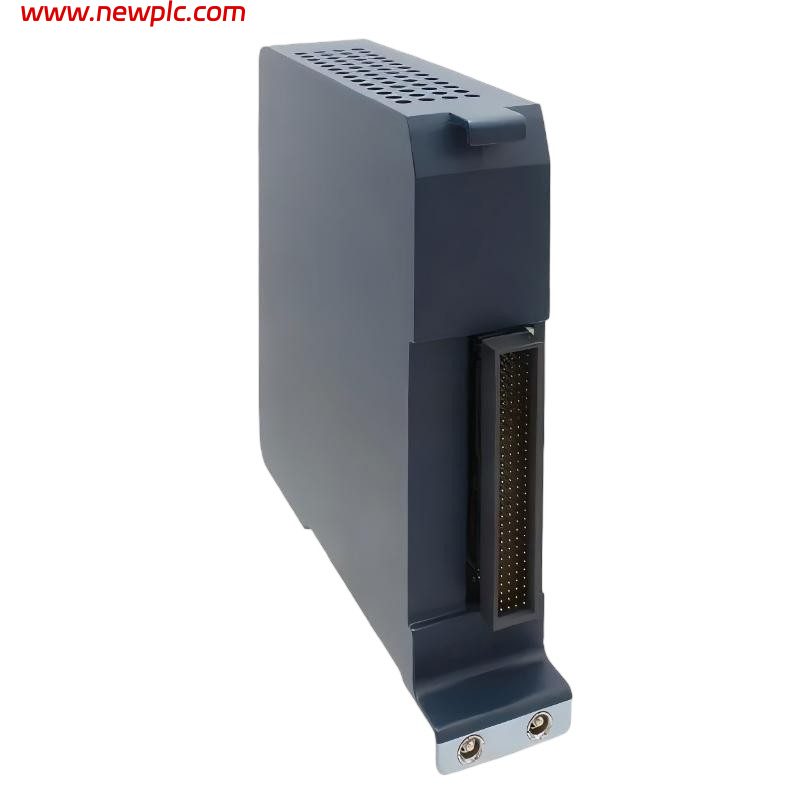

| Product Name | Emerson / GE Fanuc IC695PNC001CA |
| Part Number | IC695PNC001CA |
| Product Type | PROFINET Controller Module (RX3i PACSystems Network Module) |
| Manufacturer | Emerson Automation (formerly GE Intelligent Platforms) |
| Series | PACSystems RX3i |
| Function | Acts as a PROFINET IO Controller to connect RX3i PLC system to PROFINET field devices |
| Application | Industrial automation / distributed I/O / PROFINET network control systems |
| Communication Protocol | PROFINET IO (Version 2.2 / V2.3 compatible systems) |
| Ethernet Speed | 10/100/1000 Mbps |
| Network Ports | 2 × RJ45 Ethernet ports + optional SFP fiber slots (depending on configuration) |
| Max I/O Devices | Up to 64–128 IO devices per controller (system dependent) |
| Redundancy | Supports system redundancy configurations (RX3i redundant architecture dependent) |
| Configuration Software | PAC Machine Edition (PME) |
| Diagnostic Functions | Device status, network diagnostics, PROFINET acyclic diagnostics |
| Backplane Power | 5 VDC via RX3i rack |
| Power Consumption | ~0.5 A @ 3.3 VDC + ~1.5 A @ 5 VDC (module dependent) |
| Mounting Type | RX3i single-slot rack module |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH non-condensing |
| Dimensions (W × H × D) | Approx. 88.9 × 130 × 38.1 mm |
| Weight | Approx. 0.4–0.8 kg (varies by revision) |
FAQ
FAQ
Q1: What is IC695PNC001CA used for?
A1: It is used as a PROFINET Controller module that connects an RX3i PLC system to a PROFINET industrial Ethernet network.
Q2: Is IC695PNC001CA a module or a cable?
A2: It is a communication module, not a cable.
Q3: What PLC system does it belong to?
A3: It belongs to the Emerson GE Fanuc PACSystems RX3i platform.
Q4: What is its main function?
A4: It manages communication between the RX3i controller and PROFINET IO field devices.
Q5: What communication speed does it support?
A5: It supports 10/100/1000 Mbps Ethernet communication.
Q6: How many devices can it support?
A6: Typically up to 64–128 PROFINET IO devices depending on configuration.
Q7: What are its physical dimensions?
A7: Approximately 88.9 × 130 × 38.1 mm.
Q8: What is its weight?
A8: Approximately 0.4–0.8 kg depending on revision and configuration.
