Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Emerson / GE Fanuc IC695CMM004CA |
| Part Number | IC695CMM004CA |
| Product Type | Serial Communication Module (RX3i PACSystems, Conformal Coated) |
| Manufacturer | Emerson Automation (formerly GE Intelligent Platforms / GE Fanuc) |
| Series | PACSystems RX3i |
| Function | Provides serial communication between RX3i PLC system and external devices or networks |
| Application | Industrial automation / Modbus / DNP3 / serial device integration |

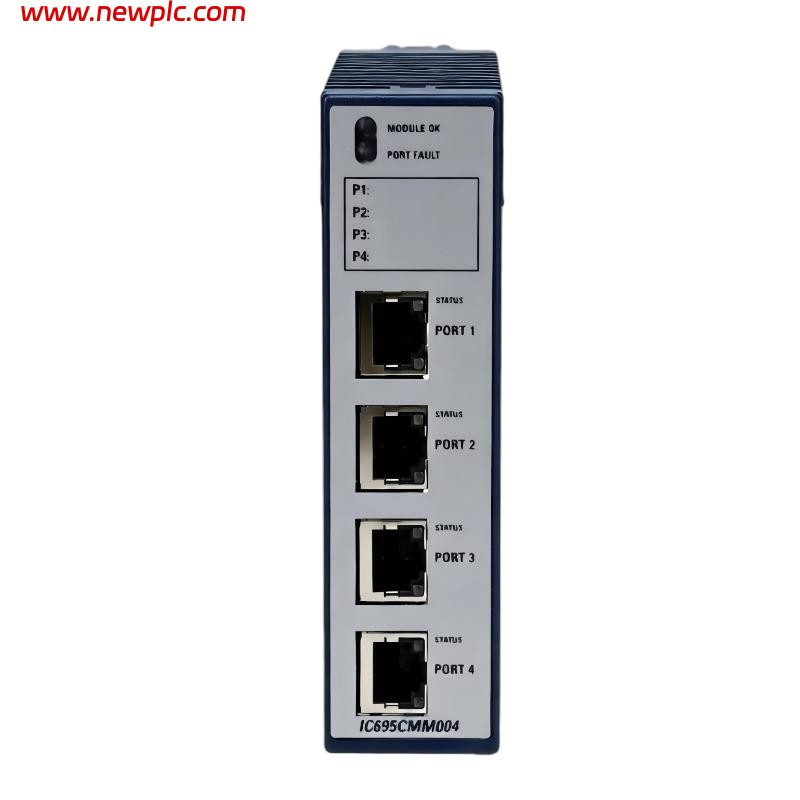

| Communication Ports | 4 × independent serial ports |
| Supported Interfaces | RS-232 / RS-485 / RS-422 (software configurable) |
| Supported Protocols | Modbus Master/Slave, DNP3 Master/Slave, CCM Slave, Serial I/O |
| Baud Rate Range | 1200 bps to 115.2 kbps |
| Isolation | Port-to-port and port-to-backplane isolation |
| Connector Type | RJ45 serial ports |
| Configuration Software | PAC Machine Edition |
| Diagnostics | Per-port status, fault reporting, protocol diagnostics |
| Power Supply | Backplane powered (RX3i rack) |
| Power Consumption | ~0.7 A @ 3.3 VDC / ~0.15 A @ 5 VDC |
| Mounting Type | RX3i rack-mounted single-slot module |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH non-condensing |
| Protection | Conformal coated version (industrial environment resistance) |
| Parameter | Description |
|---|---|
| Dimensions (W × H × D) | Approx. 88.9 × 130 × 38.1 mm |
| Weight | Approx. 0.3–0.7 kg (depending on revision) |
FAQ
FAQ
Q1: What is IC695CMM004CA used for?
A1: It is used to provide serial communication capabilities for RX3i PLC systems, enabling connection to Modbus, DNP3, and other serial devices.
Q2: Is IC695CMM004CA a module or a cable?
A2: It is a serial communication module, not a cable.
Q3: How many ports does it have?
A3: It has 4 independent serial communication ports.
Q4: What protocols does it support?
A4: It supports Modbus Master/Slave, DNP3, CCM Slave, and generic serial I/O.
Q5: What interfaces are supported?
A5: RS-232, RS-485, and RS-422 (configurable per port).
Q6: What PLC system is it used in?
A6: It is used in Emerson GE Fanuc PACSystems RX3i platforms.
Q7: What are its physical dimensions?
A7: Approximately 88.9 × 130 × 38.1 mm.
Q8: What is its weight?
A8: Approximately 0.3–0.7 kg depending on revision.
