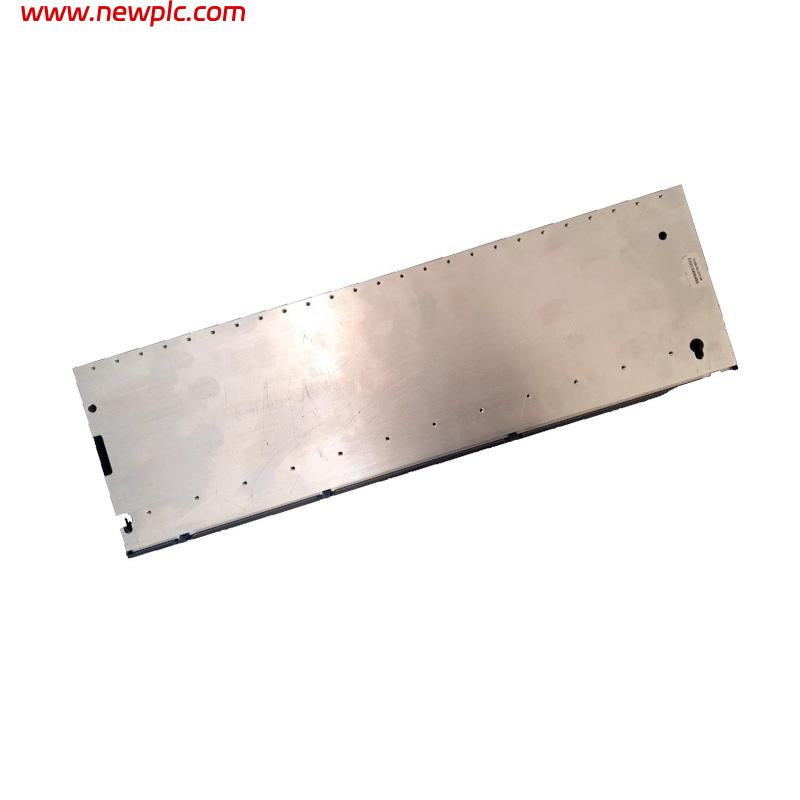

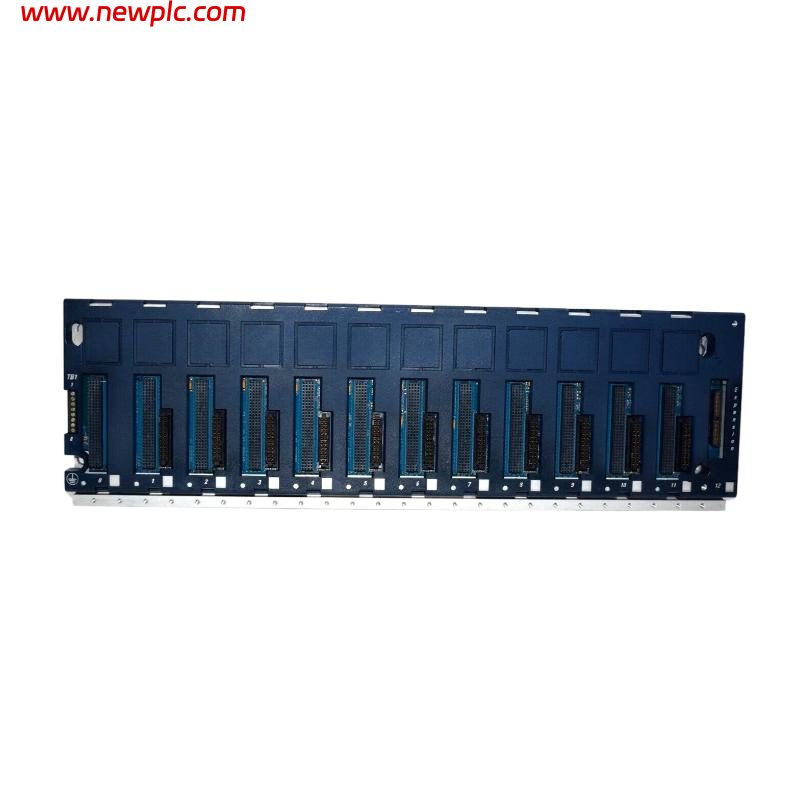

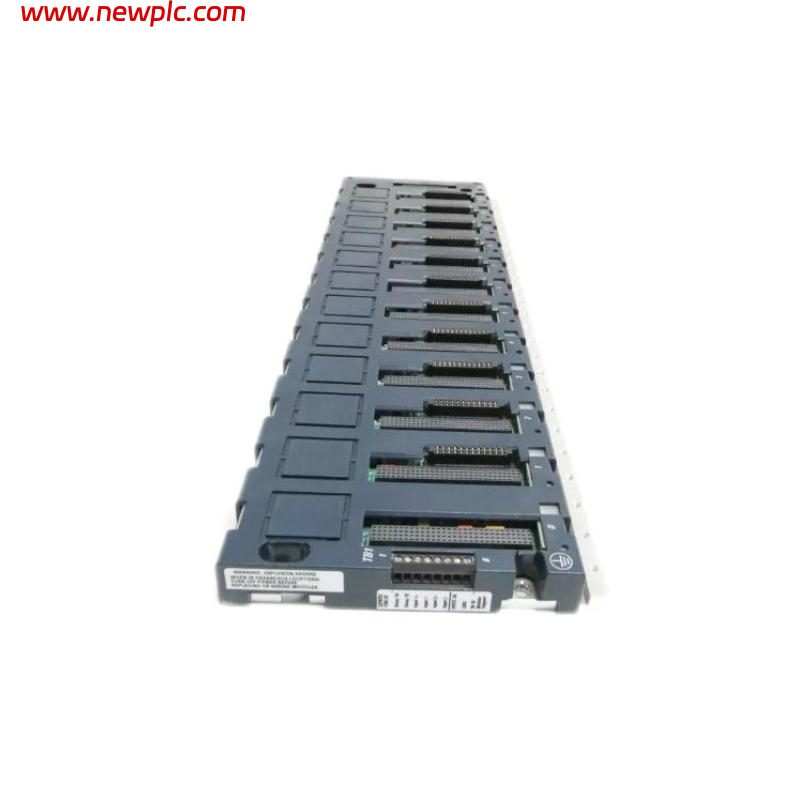

GE IC695CHS012-CA Universal Backplane / Controller Base

FAQ

Q1: What is the GE Fanuc IC695CHS012-CA used for?
The IC695CHS012-CA is used as the main universal backplane in PACSystems RX3i PLC systems, providing slots and communication connections for CPUs, I/O modules, and option modules.

Q2: How many modules can be installed on the IC695CHS012-CA?
The IC695CHS012-CA provides 12 module slots for RX3i controllers, I/O modules, communication modules, and specialty modules.

Q3: What communication buses are supported by the IC695CHS012-CA?
The backplane supports both PCI-based high-speed communication bus and serial bus communication, allowing compatibility with different generations of GE Fanuc modules.

Q4: Is the IC695CHS012-CA compatible with Series 90-30 modules?
Yes. The RX3i universal backplane can support compatible Series 90-30 IC694 modules while also supporting RX3i IC695 high-speed modules.

Q5: What power supply is required for the IC695CHS012-CA?
The backplane requires a compatible RX3i power supply module, such as the IC695PSA series, which provides system power through the backplane.

Q6: Does the IC695CHS012-CA support hot swapping?
Yes. The backplane supports hot swap functionality when used with compatible RX3i modules and proper system configuration.

Q7: What is the difference between IC695CHS012-CA and smaller RX3i backplanes?
The IC695CHS012-CA provides 12 available slots, making it suitable for larger control systems requiring more CPU, communication, and I/O modules compared with smaller RX3i backplanes.

Q8: What should be checked before replacing an IC695CHS012-CA?
Before replacement, verify the RX3i system configuration, installed module compatibility, power supply rating, rack mounting requirements, module slot assignments, and PLC hardware configuration backup.
