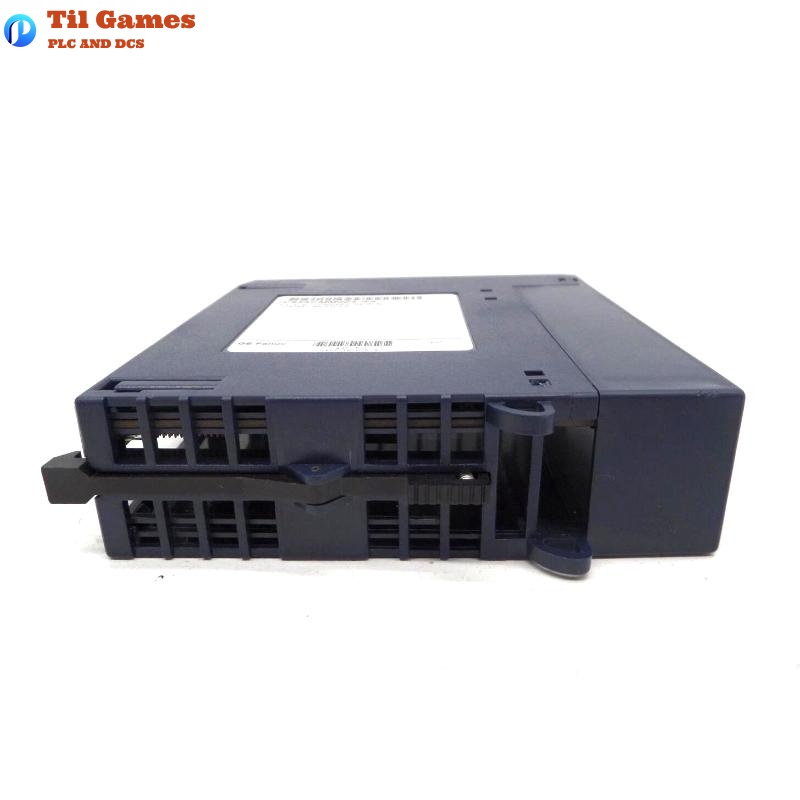

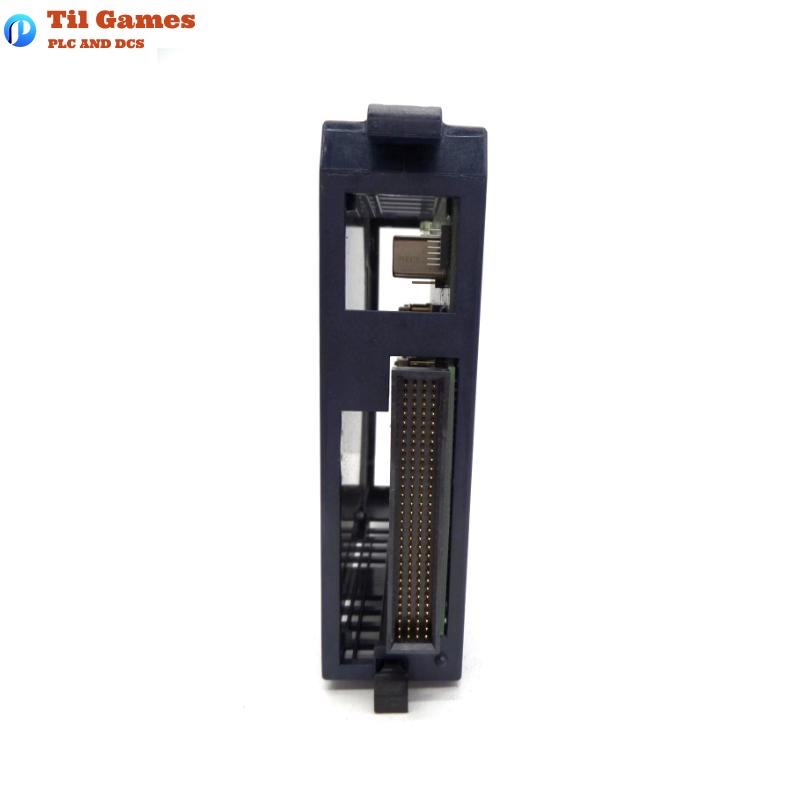

Technical Specifications
| Parameter | Description |
|---|---|
| Model | IC695CMM004 |
| Number of Serial Ports | 4 independent isolated ports |
| Port Type | RS-232 / RS-485/422, 2-wire (half-duplex) or 4-wire (full-duplex) |
| Connector Type | RJ-45 |
| Baud Rates | 1200, 2400, 4800, 9600, 19.2K, 38.4K, 57.6K, 115.2K |
| Data Bits | 7 or 8 |
| Stop Bits | 1 or 2 |
| Parity | Even, odd, none |
| Flow Control (RS-232) | Selectable: None or RTS/CTS hardware |
| Input Impedance (RS-485) | > 96 kΩ |
| Input Impedance (RS-232) | 3 kΩ to 7 kΩ |
| Max Overvoltage | ±25V |
| Port Isolation Voltage | 250 VAC continuous; 1500 VAC for 1 min (to backplane/ground) |
| Port-to-Port Isolation | 500 VDC continuous; 710 VDC for 1 min |
| Backplane Power | Max 0.7 A @ 3.3VDC; Max 0.15 A @ 5.0VDC |
| LEDs | Module OK, Port Fault, Port Status (for each port) |
| Supported Protocols | MODBUS Master/Slave, CCM Slave, DNP3 Master/Slave, Serial I/O |
| Max Modules per CPU | Up to 6 modules in main CPU rack |
| Operating Temperature | 0°C to +60°C |
| Dimensions (W × H × D) | 134.6 mm × 165.1 mm × 30 mm |
| Weight | 0.25 kg |
| Certifications | CE, UL/CUL 508, UL 1604, ATEX |
| Hot Swap Capability | Supported |
FAQ
Frequently Asked Questions (FAQ)
Q1: What communication protocols are supported by IC695CMM004?
A1: The module supports MODBUS Master/Slave, DNP3 Master/Slave, CCM Slave, and Serial I/O protocols.
Q2: Can I use different protocols on different ports if DNP3 is configured?
A2: No. If any port is configured for DNP3 (Master or Slave), all ports must use DNP3.
Q3: Is hot-swap supported for this module?
A3: Yes, hot-swap is supported as per the RX3i System Manual instructions.

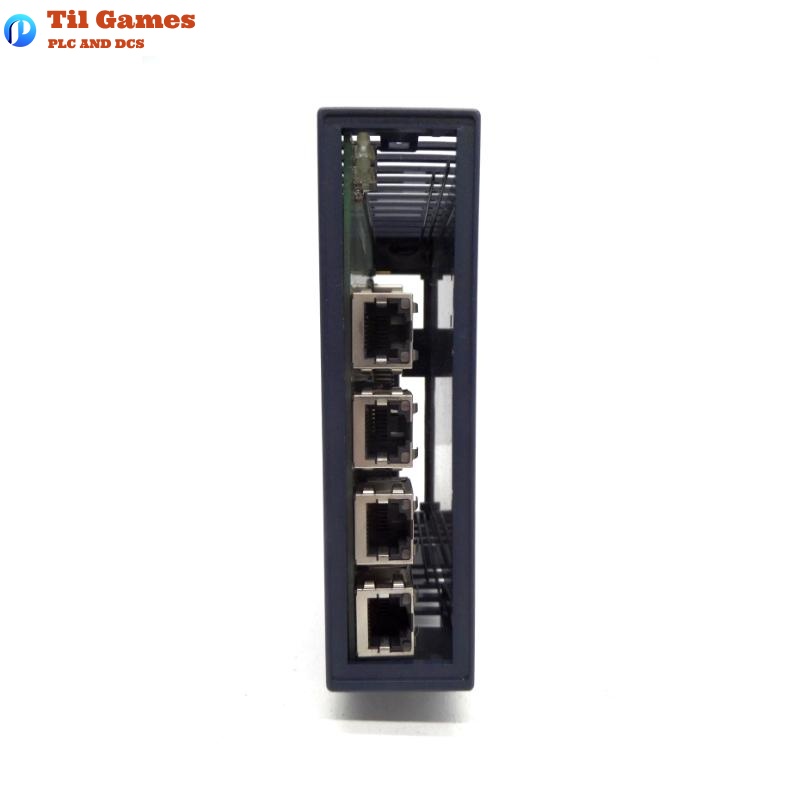

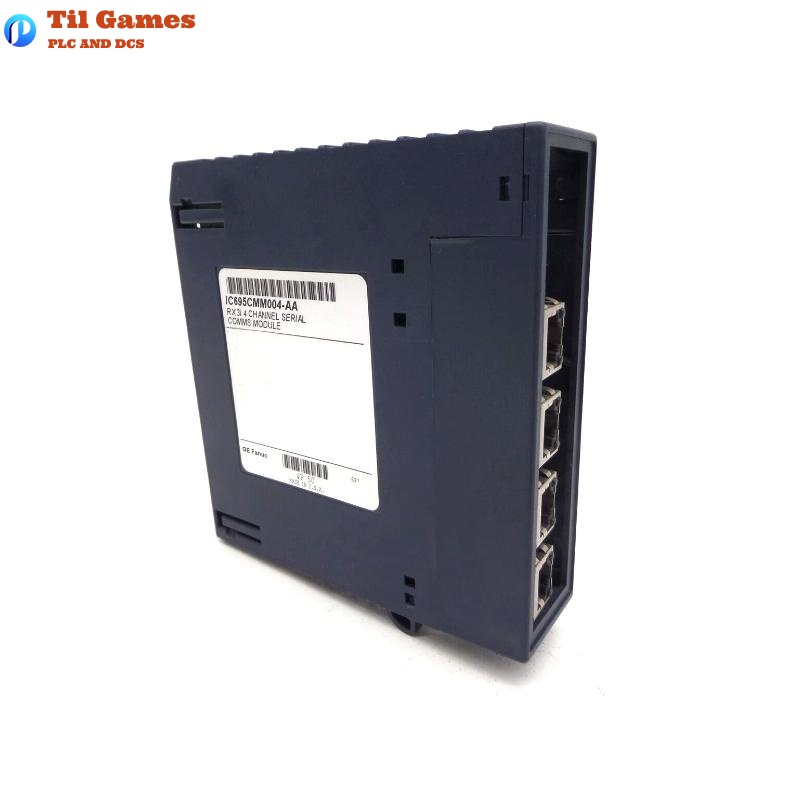

Q4: What type of connectors are used for the serial ports?
A4: RJ-45 connectors are used for all ports. Pinouts differ from standard MODBUS.
Q5: Does the module provide port-to-backplane isolation?
A5: Yes. Each port is isolated from the backplane with 250 VAC continuous isolation.
Q6: How many baud rates does the module support?
A6: Eight baud rates are supported, up to 115.2Kbps.
Q7: Is shielded cable mandatory?
A7: Yes. Shielded cable is required to meet EMC standards.
Q8: Can port mode (RS-232 or RS-485) be software-selected?
A8: Yes, each port can be configured in software for RS-232 or RS-485 operation.
