Technical Specifications
| Parameter | Description |
|---|---|

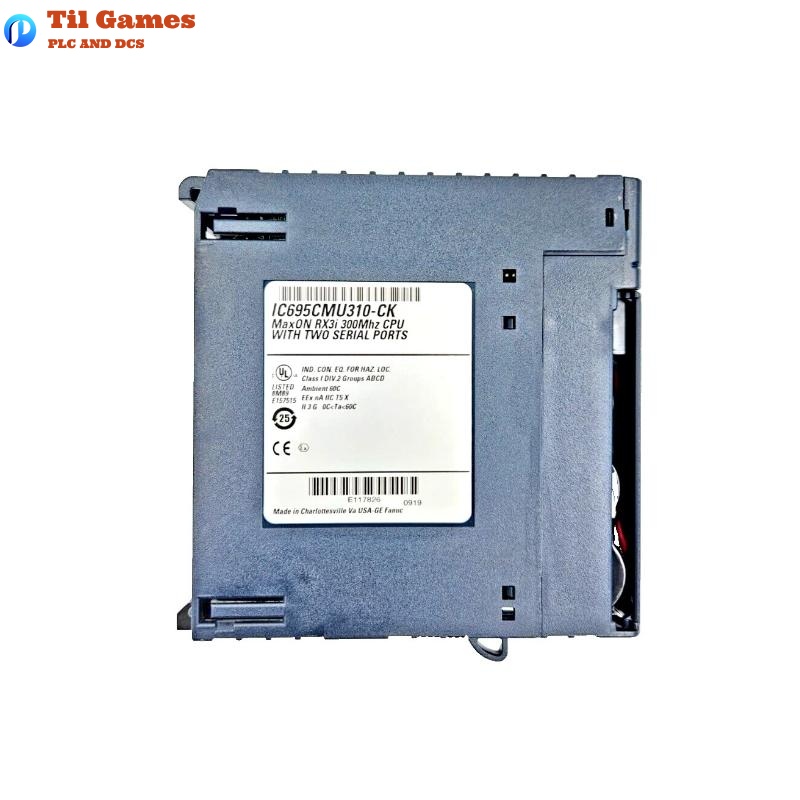

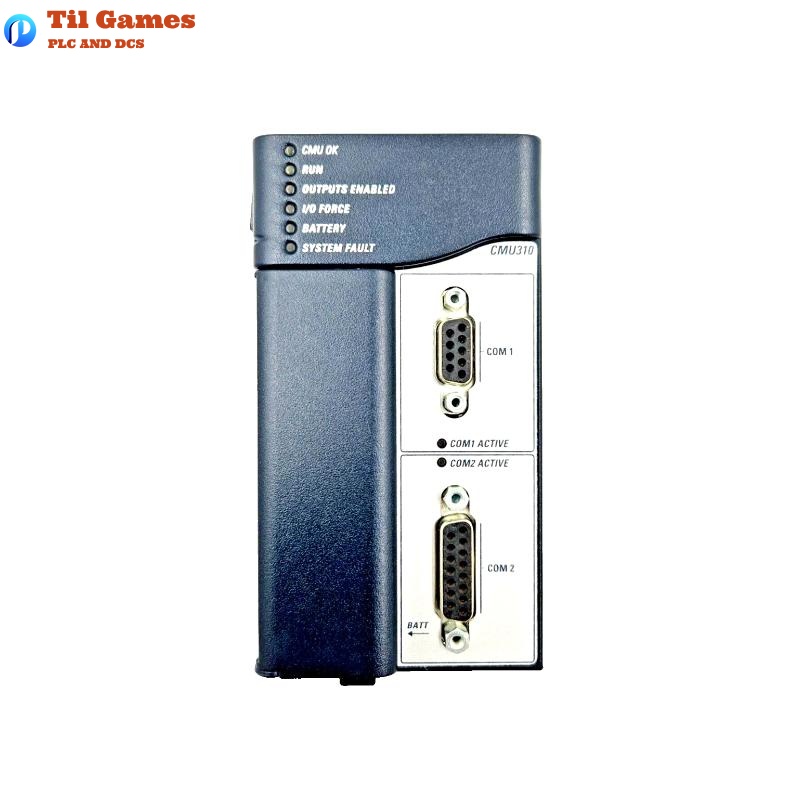

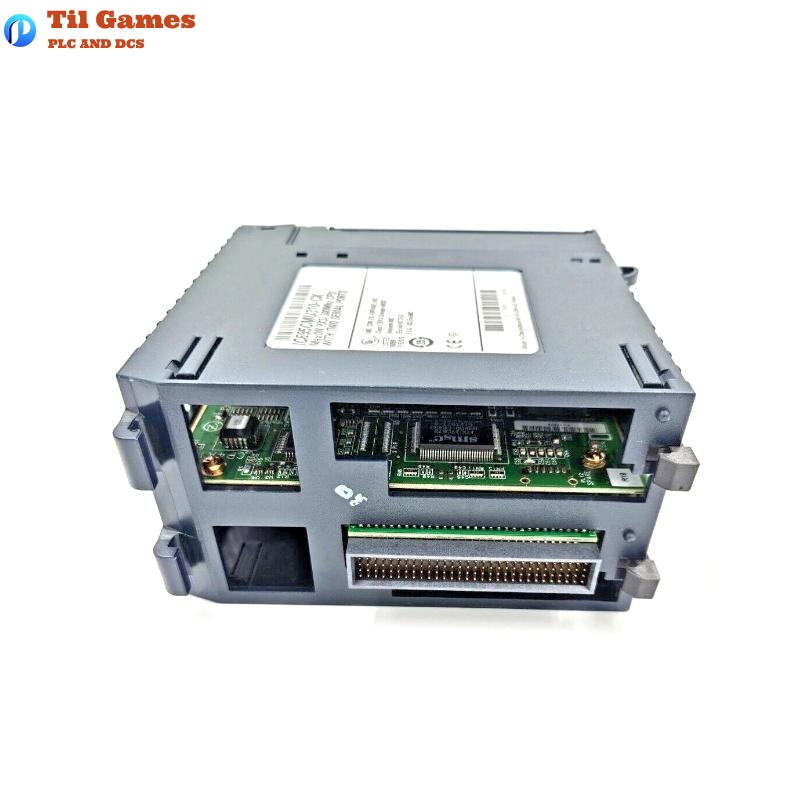

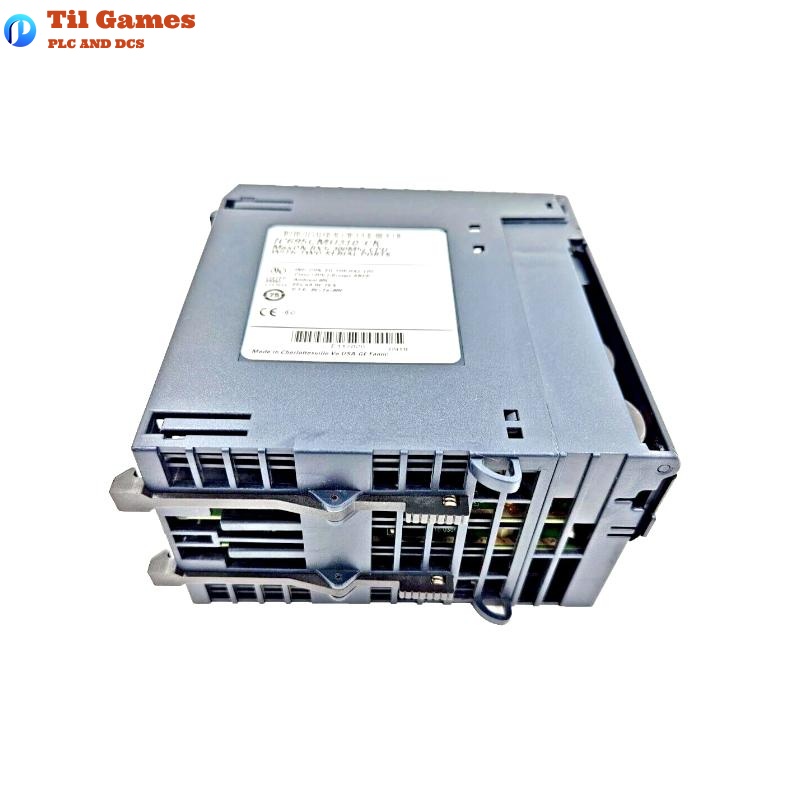

| Model | IC695CMU310 |
| Memory | 10MB battery-backed RAM, 10MB non-volatile flash |
| Programming Support | Ladder Diagram, Structured Text, Function Block Diagram, C |
| Boolean Execution | 0.195 ms per 1000 Boolean instructions (typical) |
| Max Program Blocks | 512 blocks, up to 128KB each |
| Analog Memory | %AI and %AQ configurable up to 32Kwords each |
| Digital Memory | %I and %Q: 32Kbits each |
| General Memory | %W configurable up to max available RAM |
| Symbolic Variables | Up to 10MB symbolic memory support |
| Communication Ports | RS-232 and RS-485 |
| Protocols Supported | Modbus RTU, SNP, Serial I/O |
| Backplane Support | RX3i PCI and 90-30 style serial bus |
| Power Requirements | +3.3V DC @ 1.25A, +5V DC @ 1.0A (nominal) |
| Real Time Clock | Max drift: 2 seconds per day |
| Operating Temp Range | 0°C to 60°C |
| Floating Point | Supported |
| Dimensions | 120 x 50 x 110 mm |
| Weight | 0.399 kg |
| Firmware Upgrade | Supported via WinLoader utility |
FAQ
Frequently Asked Questions (FAQ)
Q1: What communication protocols are supported by IC695CMU310?
A1: Modbus RTU, SNP, and Serial I/O protocols are supported.
Q2: Which programming languages are supported?
A2: Ladder Diagram, Structured Text, Function Block Diagram, and C are supported.
Q3: What is the maximum memory available?
A3: 10MB battery-backed RAM and 10MB flash memory, totaling 20MB user memory.
Q4: Does the controller support hot redundancy?
A4: Yes, hot standby redundancy is supported via Max-ON for critical control systems.
Q5: Will data be lost during power loss?
A5: No, data is preserved via battery backup and flash storage.
Q6: How should the battery be installed correctly?
A6: Connect the battery only after the rack is powered on to ensure proper initialization.
Q7: Is field firmware upgrade possible?
A7: Yes, firmware can be upgraded in the field using GE’s WinLoader tool.
Q8: Is this module suitable for SIL 2 or SIL 3 applications?
A8: No, it is not intended for use in SIL 2 or SIL 3 safety-rated environments.
