Technical Specifications
| Parameter | Specification |
|---|---|

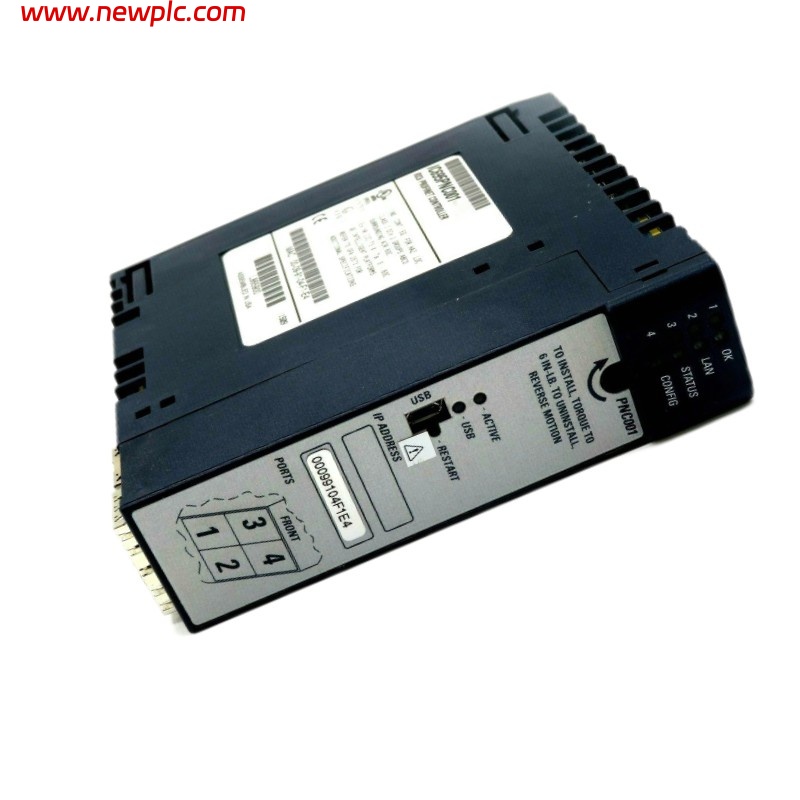

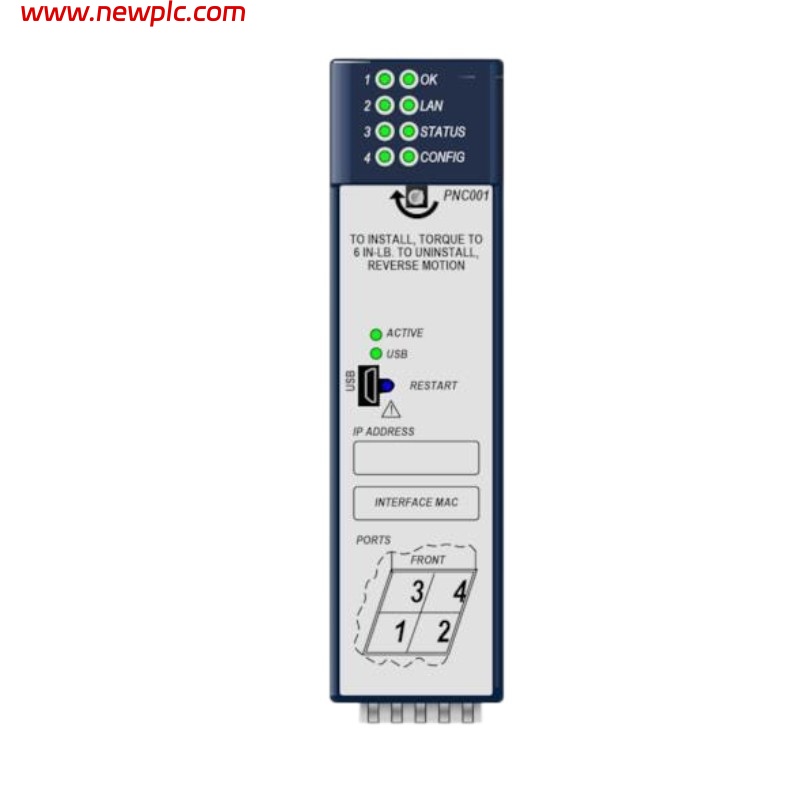

| Product Name | IC695PNC001 |
| Manufacturer | GE Fanuc (Emerson / GE Automation) |
| Series | Series 90-30 |
| Module Type | Profinet Communication Module |
| Function | Connects Series 90-30 PLCs to Profinet networks |
| Supported Protocols | Profinet IO |
| Max Data Rate | 100 Mbps |
| Isolation | Logic-to-network isolation |
| Backplane Power Consumption | 5 VDC, approx. 230 mA |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions (approx.) | 12.7 cm × 12.8 cm × 3.8 cm |
| Weight (approx.) | 0.54 kg |
| Mounting | Series 90-30 standard baseplate |
| Compliance | CE |
FAQ
FAQ
Q1. What is the IC695PNC001 used for?
It is a Profinet communication module that allows Series 90-30 PLCs to interface with Profinet IO networks.
Q2. Which protocol does it support?
It supports Profinet IO communication.
Q3. What is the maximum data rate?
The module supports 100 Mbps Ethernet communication.
Q4. Does it provide electrical isolation?
Yes, isolation is provided between the PLC logic and the network interface.
Q5. Which PLC series is this module compatible with?
It is compatible with GE Fanuc Series 90-30 PLC systems.
Q6. Does the module require external power?
No, it is powered directly from the PLC backplane.
Q7. What are the physical dimensions and weight?
The module measures approximately 12.7 × 12.8 × 3.8 cm and weighs about 0.54 kg.
Q8. Can the IC695PNC001 be hot-swapped?
No, the PLC system should be powered down before installation or removal.
Q9. What applications commonly use this module?
It is used in industrial automation systems for Profinet communication and remote I/O control.
Q10. Is the IC695PNC001 still available?
Yes, it is available through authorized distributors and industrial automation suppliers.
