Technical Specifications
| Parameter | Specification |
|---|---|

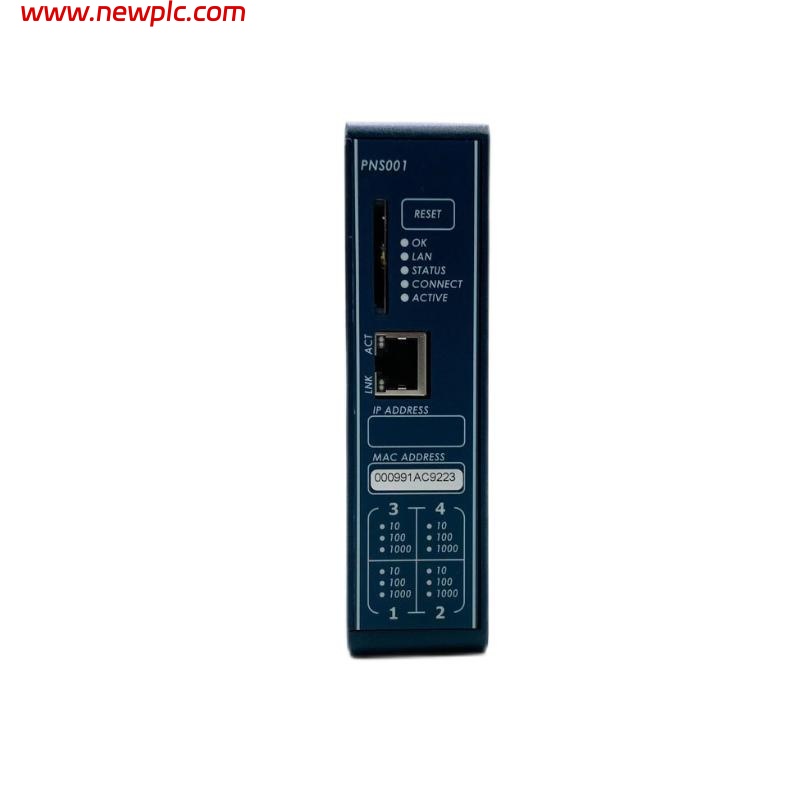

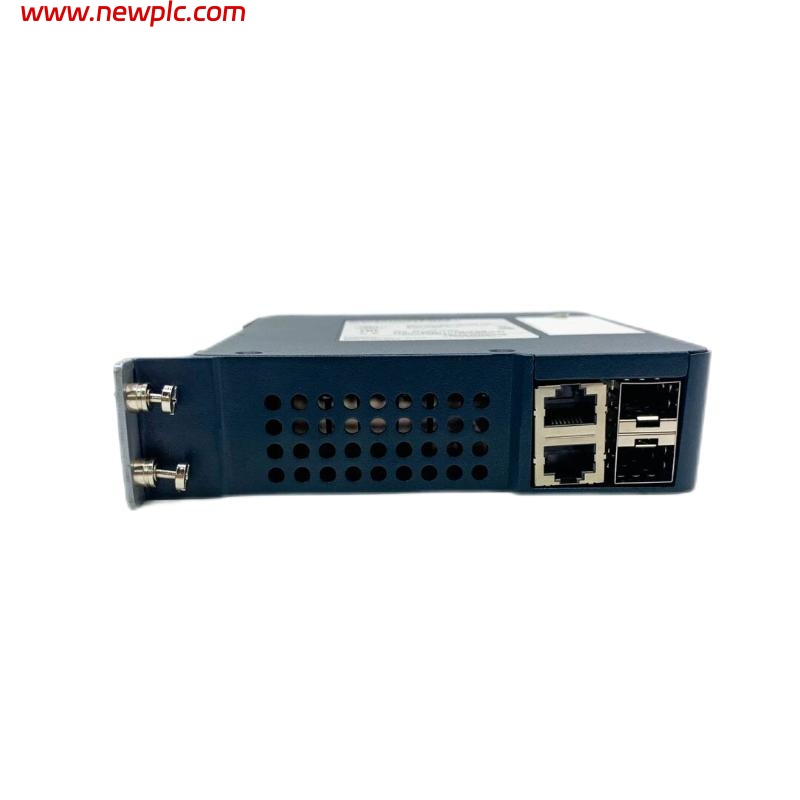

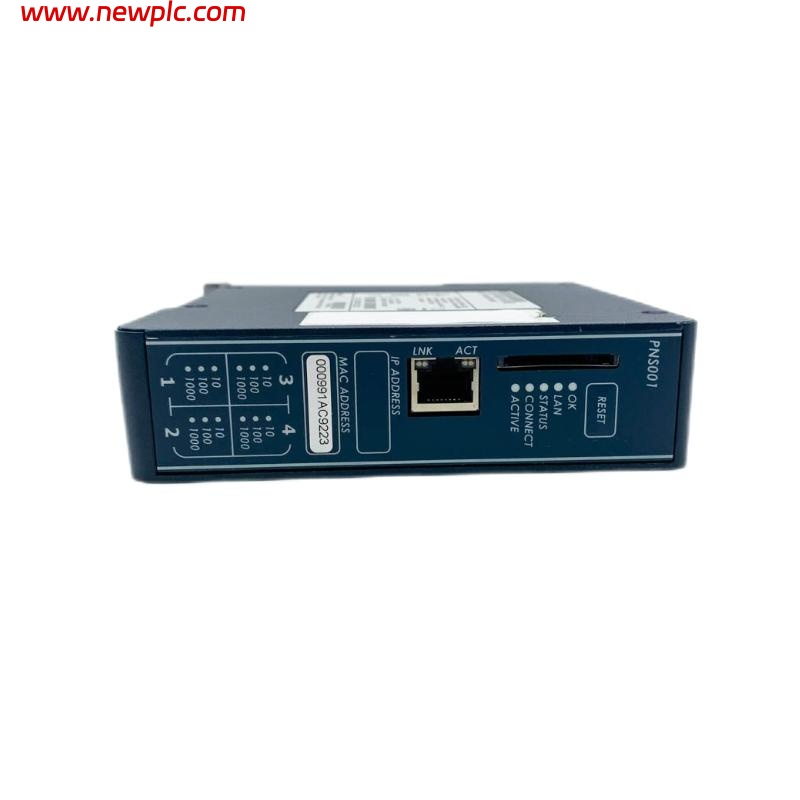

| Product Name | IC695PNS001 |
| Manufacturer | GE Fanuc (Emerson / GE Automation) |
| Series | Series 90-30 |
| Module Type | Profinet Switch Module |
| Function | Provides Profinet network switching for PLC systems |
| Supported Protocols | Profinet IO |
| Ports | 4 RJ45 ports (switching) |
| Max Data Rate | 100 Mbps |
| Isolation | Logic-to-network isolation |
| Backplane Power Consumption | 5 VDC, approx. 250 mA |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions (approx.) | 12.7 cm × 12.8 cm × 3.8 cm |
| Weight (approx.) | 0.56 kg |
| Mounting | Series 90-30 standard baseplate |
| Compliance | CE |
FAQ
FAQ
Q1. What is the IC695PNS001 used for?
It is a Profinet switch module that provides network switching for Series 90-30 PLC systems.
Q2. Which protocol does it support?
It supports Profinet IO communication.
Q3. How many network ports are available?
The module provides 4 RJ45 ports for network connectivity.
Q4. What is the maximum data rate?
The module supports 100 Mbps Ethernet communication.
Q5. Does it provide electrical isolation?
Yes, isolation is provided between the PLC logic and the network ports.
Q6. Which PLC series is this module compatible with?
It is compatible with GE Fanuc Series 90-30 PLC systems.
Q7. What are the physical dimensions and weight?
The module measures approximately 12.7 × 12.8 × 3.8 cm and weighs about 0.56 kg.
Q8. Does the module require external power?
No, it is powered directly from the PLC backplane.
Q9. Can the IC695PNS001 be hot-swapped?
No, the PLC system should be powered down before installation or removal.
Q10. Is the IC695PNS001 still available?
Yes, it is available through authorized distributors and industrial automation suppliers.
