Technical Specifications
| Parameter | Specification |
|---|---|

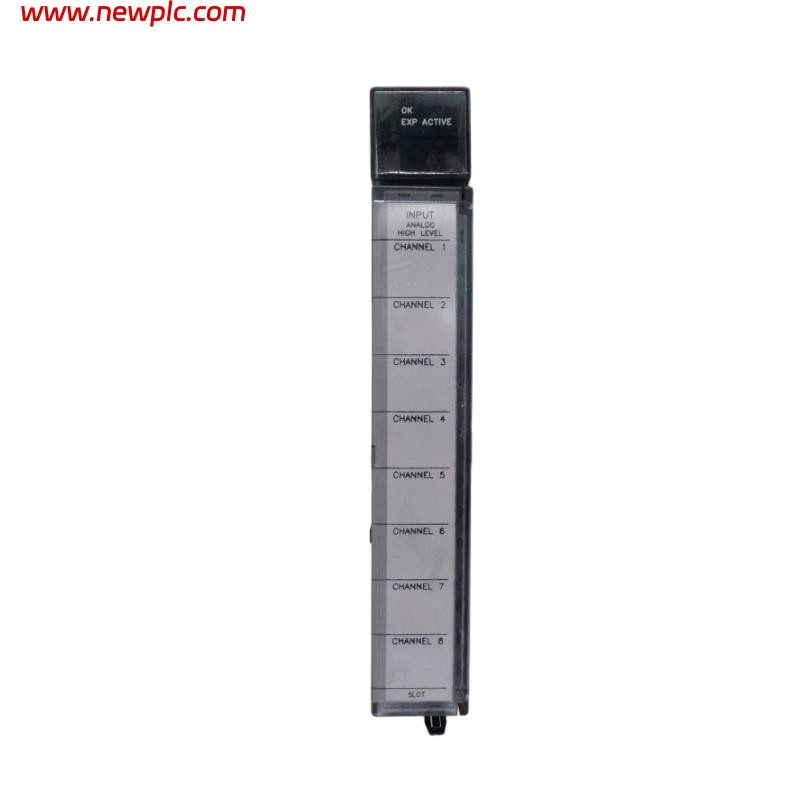

| Model | IC697ALG234 |
| Product Type | Analog Input Module |
| PLC Series Compatibility | GE Fanuc Series 90-70 |
| Number of Input Channels | 8 differential analog inputs |
| Signal Types Supported | Voltage (±10 V), Current (4–20 mA) |
| Signal Configuration | Individually configurable per channel |
| Resolution | 16-bit resolution |
| Update Rate | Approx. 2.4–2.8 ms per channel without expanders |
| Input Impedance | Voltage: > 10 MΩ; Current: 250 Ω |
| Isolation | Field to backplane isolation (typical industrial) |
| Power Consumption | Approx. 0.8 A @ +5 V DC |
| Terminal Count | ~40-pin connector interface |
| Operating Temperature | 0 °C to 60 °C |
| Installation | Series 90-70 rack mount |
| Dimensions (Approx.) | Standard Series 90-70 module form factor (est.) |
| Weight (Approx.) | ~1.76 lb (~0.80 kg) |
FAQ
FAQ
Q1: What is IC697ALG234 used for?
It is an analog input module for GE Fanuc Series 90-70 PLC systems, accepting voltage or current signals.
Q2: How many analog inputs does this module have?
It has 8 differential analog input channels.
Q3: What types of signals can it measure?
It supports ±10 V voltage and 4–20 mA current signals.
Q4: Does each input channel have individual configuration?
Yes, each channel can be configured individually for voltage or current use.
Q5: What is the resolution of the analog conversion?
It provides a 16-bit resolution for precise measurements.
Q6: How fast does the module update inputs?
Base channel update rate is approximately 2.4–2.8 ms without expanders.
Q7: What are the approximate dimensions and weight?
It uses a standard Series 90-70 module form factor and weighs about 1.76 lb (~0.80 kg).
Q8: What environments can this module operate in?
It is designed for industrial use, with an operating temperature range from 0 °C to 60 °C.
