Technical Specifications
| Parameter | Specification |
|---|---|

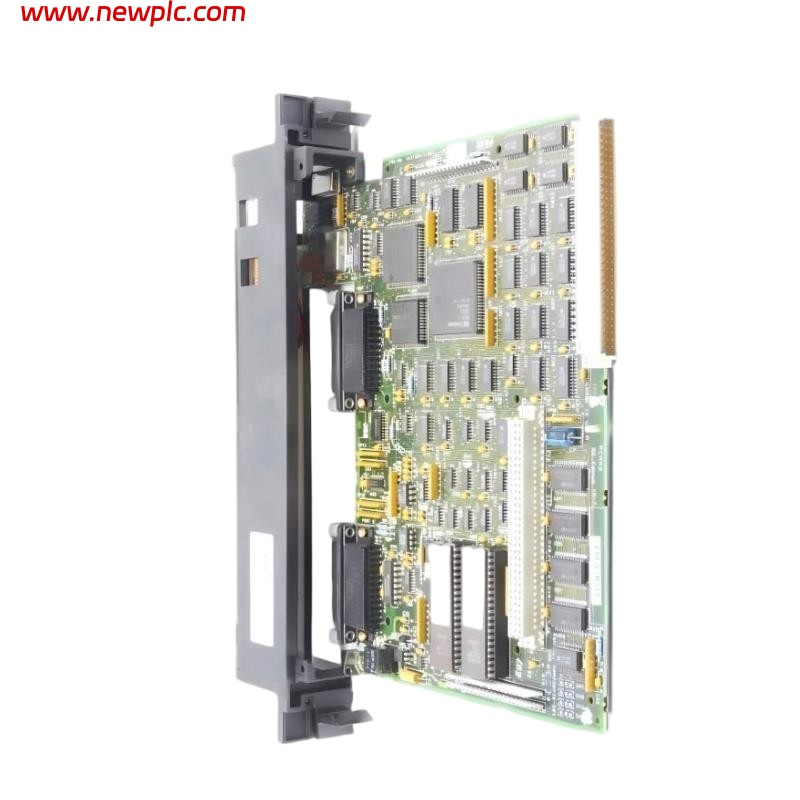

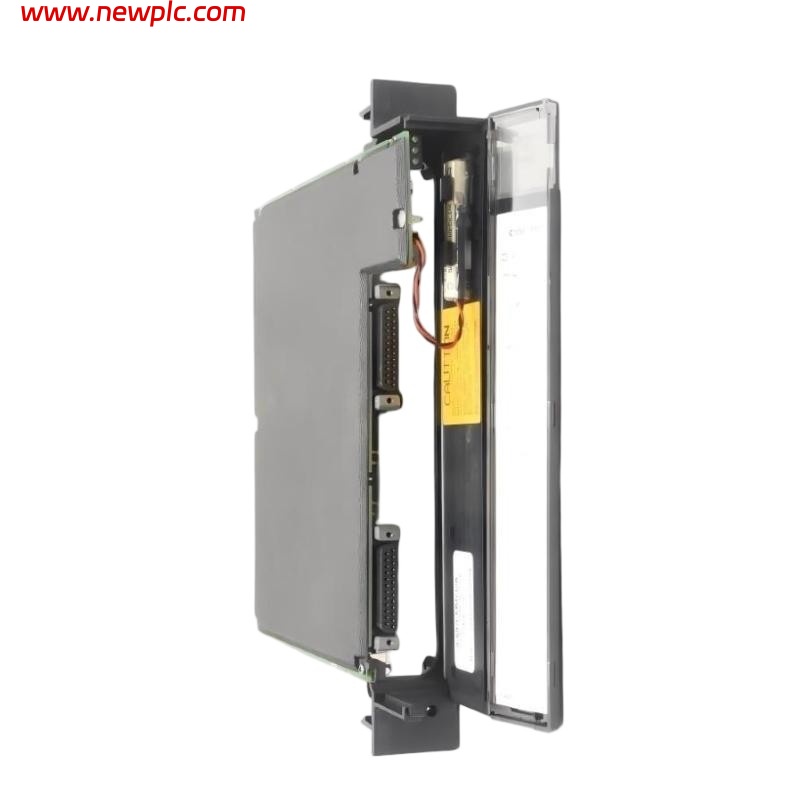

| Model | IC697CPM914 |
| Product Type | CPU Module for PLC systems (GE Fanuc Series 90-70) |
| Processor | 80486DX, 32 MHz |
| Memory | 512 KB SRAM with lithium battery backup (approx. 6-month retention) |
| I/O Capacity | Supports up to 12 000 total points (up to 8000 analog) |
| Communications | One serial port (RS-422/RS-485, 15-pin D-sub) |
| Floating-Point Support | Yes (hardware) |
| Power Supply | 5 V DC @ ~2.8 A (approx. 14 W max) |
| Operating Temperature | 0 °C to +60 °C (typical industrial) |
| Status Indicators | Multiple LEDs for RUN, Program, Error, etc. |
| Dimensions (Approx.) | 3.5″ (H) × 5.0″ (W) × 1.5″ (D) (~89 mm × 127 mm × 38 mm) |
| Weight (Approx.) | ~0.8 lbs (~0.36 kg) |
| Compatibility | GE Fanuc Series 90-70 PLC racks & modules |
| Battery Backup | Retains CPU memory and clock without power via onboard battery |
FAQ
FAQ
Q1: What is the IC697CPM914 used for?
It is a central processor (CPU) module for GE Fanuc Series 90-70 PLC automation systems, handling control logic and I/O processing.
Q2: What processor and speed does this CPU use?
It uses a 32 MHz 80486DX processor with floating-point support.
Q3: How much memory does it have?
It has 512 KB of battery-backed SRAM for program and data storage.
Q4: What I/O capacity does this CPU support?
It supports up to approximately 12 000 I/O points total, including up to 8000 analog points.
Q5: What communication ports are included?
It includes one RS-422/RS-485 serial communication port with a 15-pin connector.
Q6: What are the physical size and weight of this module?
The module is about 3.5″ × 5.0″ × 1.5″ (89 mm × 127 mm × 38 mm) and weighs roughly 0.8 lbs (0.36 kg).
Q7: Does it provide memory retention during power loss?
Yes, the onboard lithium battery provides memory retention for around six months without power.
Q8: What power does the module require?
It operates on 5 V DC with about 2.8 A current draw (~14 W).
