Technical Specifications
| Parameter | Description |
|---|---|

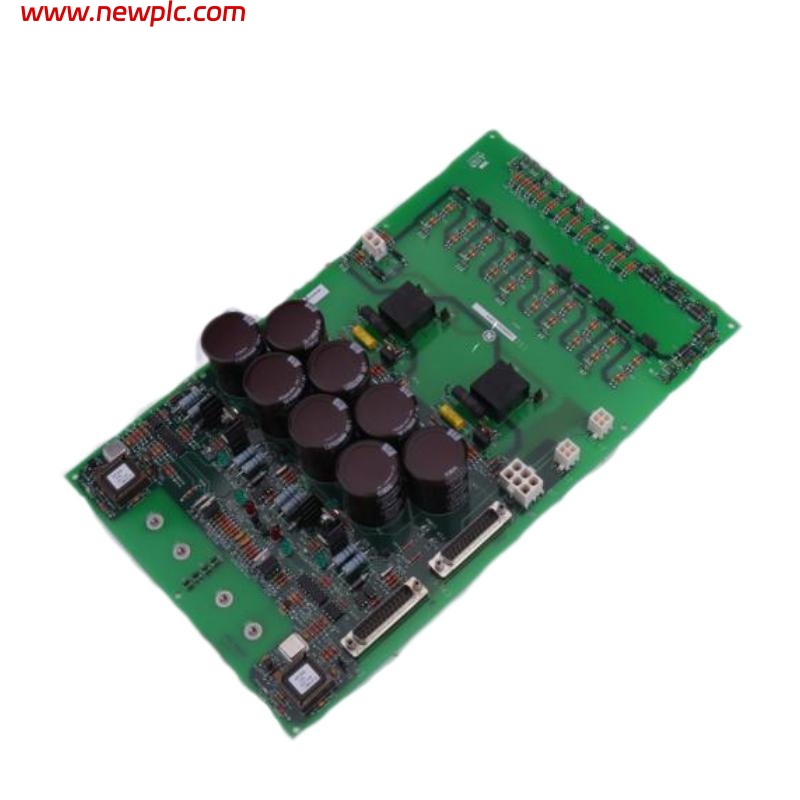

| Product Model | GE IS200EDEXG1ADA |
| Manufacturer | General Electric (GE) |
| Product Type | Exciter De‑Excitation Board |
| Series | EX2100 Excitation Control System |
| Functional Role | Provides controlled de‑excitation of the generator field by firing SCRs to dissipate stored field energy during shutdown or fault conditions. |
| Compatible Systems | GE EX2100 and Mark VI excitation control platforms |
| Main Functions | SCR de‑excitation firing, conduction sense feedback, voltage retention for safe shutdown operation. |
| Power Input | Receives 24 V DC from excitation power supply, converts internally for SCR activation. |
| Configurable Jumpers | Multiple jumpers (e.g., JP1–JP6) for setup flexibility. |
| Operating Temperature | Typically –40 °C to +70 °C industrial range |
| Mounting | Installed inside excitation control cabinet or auxiliary rack |
| Dimensions | 160 mm × 160 mm × 120 mm (approximate module board form) |
| Weight | ~0.8 kg (0.8 kilograms) |
| Compliance | Designed for industrial turbine/generator excitation system safety and reliability |
FAQ
FAQ
Q1. What is the GE IS200EDEXG1ADA?
It’s a de‑excitation control board used to safely dissipate stored energy from the generator field by controlling SCR firing during shutdowns or fault events.
Q2. Which control systems is it compatible with?
It is compatible with GE EX2100 excitation control systems and Mark VI platform excitation control racks.
Q3. What is the primary function of this board?
The board provides SCR de‑excitation firing, conduction sense feedback, and voltage retention for controlled field energy discharge.
Q4. How does the board help during a shutdown?
During a shutdown or trip, it fires SCRs to provide a conduction path that safely dissipates the energy stored in the generator’s field winding.
Q5. What environmental conditions can it handle?
It operates reliably in industrial environments, typically from –40 °C to +70 °C and standard humidity ranges.
Q6. What are the physical dimensions and weight?
The module’s approximate dimensions are 160 mm × 160 mm × 120 mm and weighs about 0.8 kg.
Q7. What electrical connection does this board require?
It receives 24 V DC from the excitation power supply and converts it internally to drive SCRs for de‑excitation.
Q8. Why is this board important in excitation systems?
It ensures that stored field energy is safely and reliably dissipated during trips or shutdowns, protecting the generator and related equipment.
