Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | GE IS200EHPAG1ABB |
| Manufacturer | General Electric (GE) |

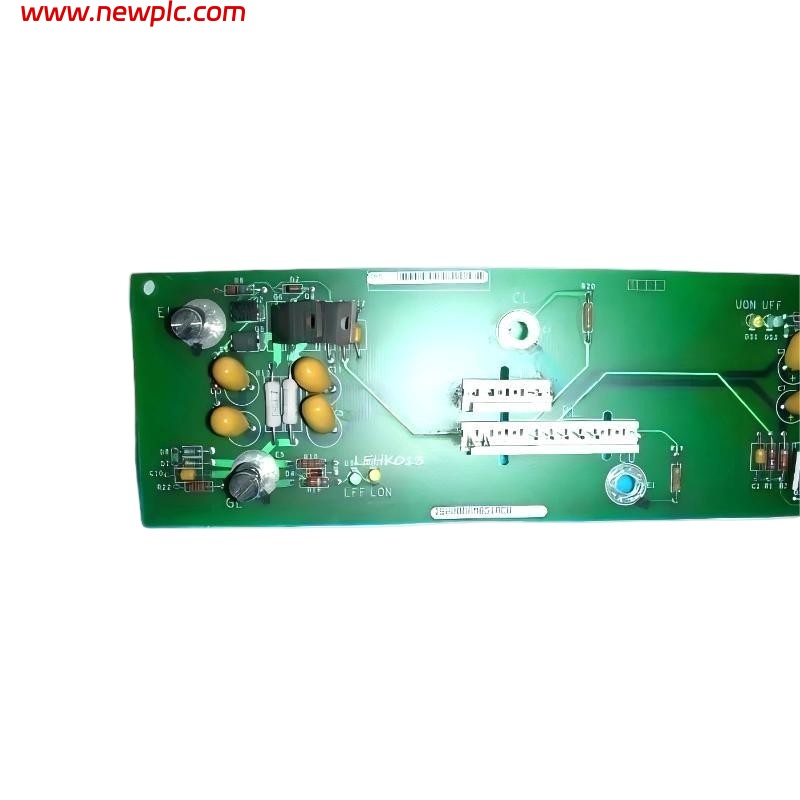

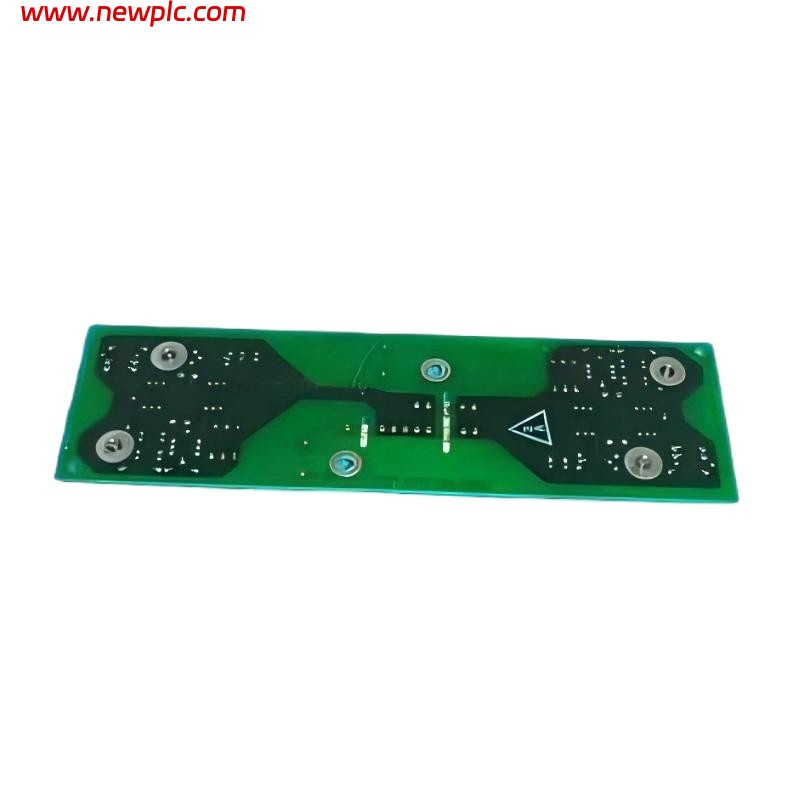

| Product Type | Exciter Gate Pulse Amplifier Board |
| Series | EX2100 / Mark VI Excitation Control System |
| Functional Role | Amplifies low‑power gate command signals and provides high‑power gate drive pulses to semiconductor devices (SCRs/IGBTs) for excitation control |
| Compatible Systems | GE EX2100 excitation control platforms (Mark VI family) |
| Input Signals | Logic‑level gate trigger commands from controller logic |
| Output Signals | Amplified gate drive pulses to SCRs/IGBTs |
| Power Supply | Backplane/exciter power distribution DC supply |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5% to 95% non‑condensing |
| Mounting | Installed in exciter control backplane or chassis |
| Dimensions | 205 mm × 156 mm × 26.5 mm |
| Weight | 1 kg |
| Compliance | Designed for industrial turbine/generator excitation environments |
FAQ
FAQ
Q1. What is the GE IS200EHPAG1ABB used for?
It is a gate pulse amplifier board that strengthens controller logic signals and supplies high‑power gate pulses to semiconductor devices in an excitation system.
Q2. Which systems is this board compatible with?
This module is designed for use in GE EX2100 excitation control systems within the Mark VI family.
Q3. What role does the IS200EHPAG1ABB play in an excitation system?
It reliably interfaces low‑power control logic to high‑power gate drive electronics to ensure proper firing of SCRs and IGBTs controlling field current.
Q4. What electrical interfaces does it support?
It receives logic‑level inputs from the controller and outputs amplified gate drive pulses to the power devices.
Q5. What are the environmental operating conditions?
It supports operation from –40 °C to +70 °C with humidity tolerance up to 95% non‑condensing.
Q6. What are the dimensions and weight of this module?
The board measures approximately 205 mm × 156 mm × 26.5 mm and weighs about 1 kg.
Q7. Is the IS200EHPAG1ABB suitable for industrial excitation systems?
Yes, it is engineered for rugged industrial turbine/generator excitation control environments.
Q8. Where is this module installed?
It mounts inside the excitation controller rack or chassis as part of the EX2100 system.
