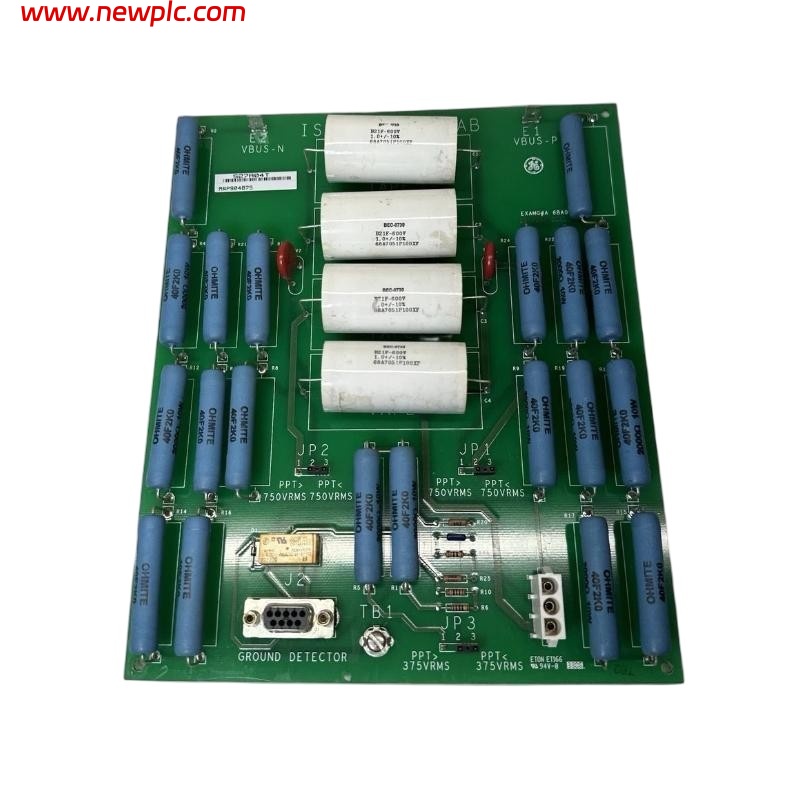

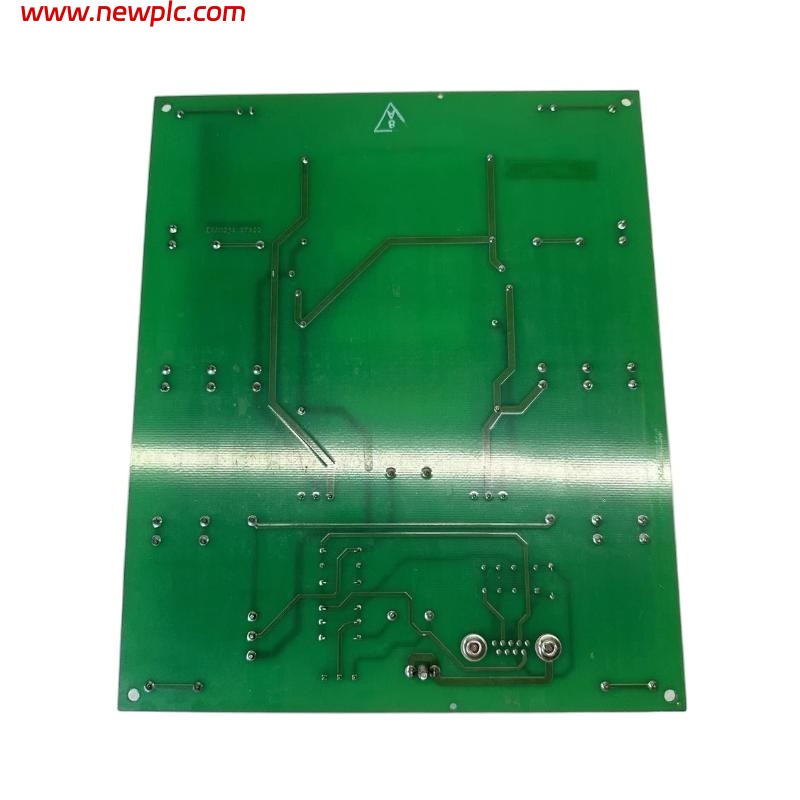

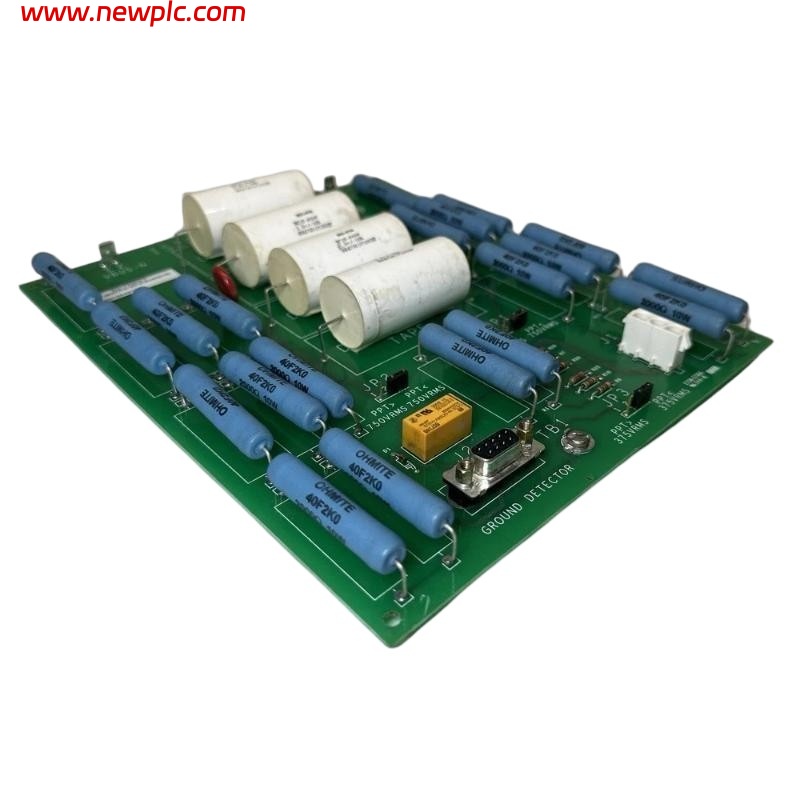

GE IS200EXAMG1A Bridge & Protection / Exciter Attenuation Board

FAQ

Q1. What is the IS200EXAMG1A used for?
It is an Exciter Attenuator Module that scales high‑voltage field bus signals and works with the ground detector module for field ground leakage detection.

Q2. Which systems is this module compatible with?
It is designed for use in GE EX2100 Excitation Control Systems.

Q3. How does the attenuation function work?
The module senses bridge/fielvis voltage and attenuates it to a usable signal level for the Exciter Ground Detector Module.

Q4. What kinds of connectors are on the board?
It has a three‑position plug and a nine‑position cable connector for signal connections.

Q5. What are the jumper settings for?
Jumpers JP1, JP2, and JP3 are used for configuration options related to voltage range and test settings.

Q6. What are the board’s physical dimensions?
The approximate size is 8.26 × 4.18 × 4.62 cm (H × W × D).

Q7. What is the board’s approximate weight?
The board weighs around 0.5 kg (~1.15 lbs).

Q8. Where is the IS200EXAMG1A installed in the system?
It is typically installed in the auxiliary cabinet or high‑voltage interface area of the EX2100 control rack.

Q9. Does this module support redundant configurations?
Yes, it can be used in both simplex and redundant system setups with appropriate signal routing.

Q10. Is the IS200EXAMG1A still available?
Yes, it is stocked by industrial automation suppliers and surplus parts distributors.
