Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | IS200TBAIH1CDD |
| Manufacturer | GE (General Electric) |
| Series | Mark VIe / Mark VI Speedtronic™ |

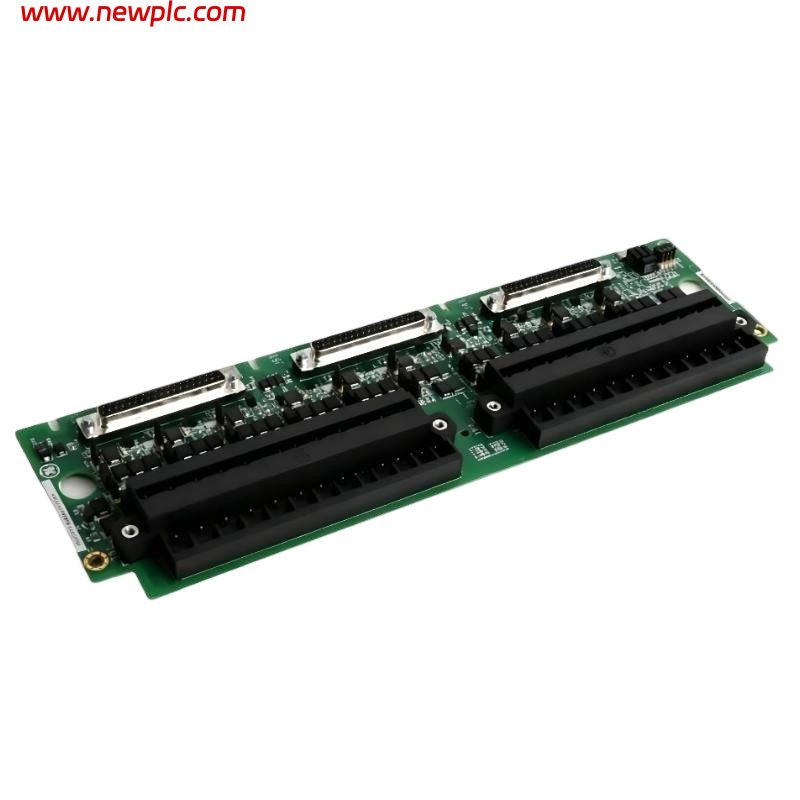

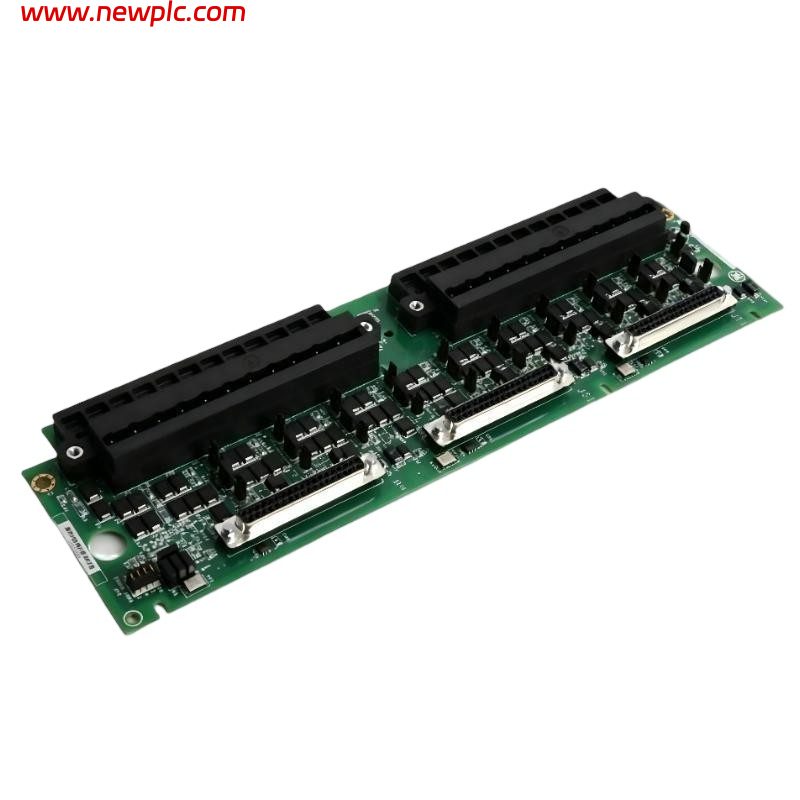

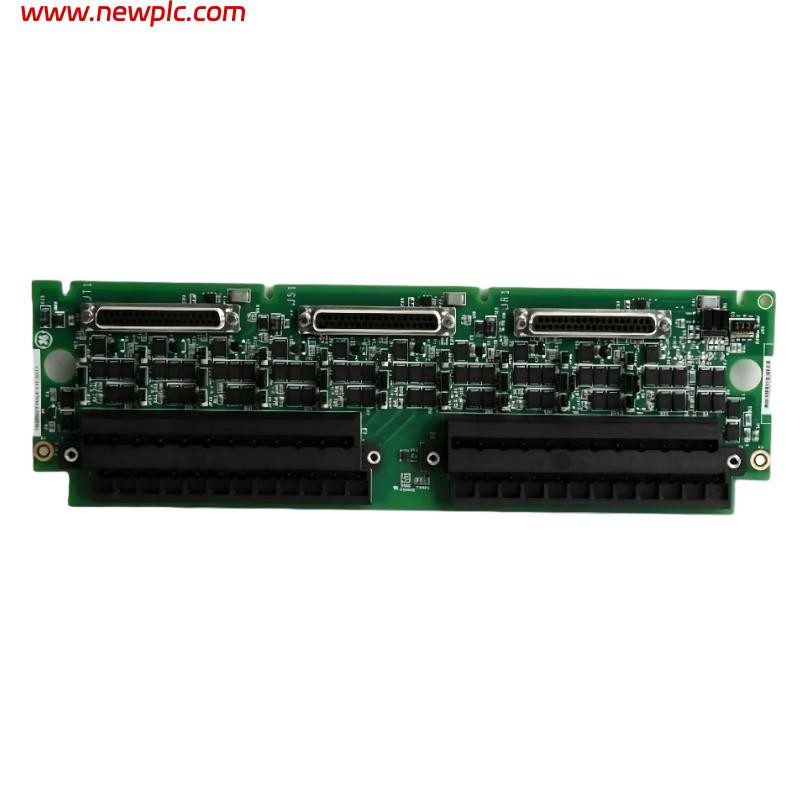

| Product Type | Analog Input Terminal Board (TBAI) |
| Function | Interface between field analog transmitters and VAIC analog input processor |
| Analog Inputs | 10 channels |
| Analog Outputs | 2 channels |
| Input Signal Range | 1–5 VDC (supports 4–20 mA transmitters via shunt resistors) |
| Supported Transmitters | 2-wire, 3-wire, 4-wire, and externally powered transmitters |
| Output Signal Range | Configurable 0–20 mA or 0–200 mA |
| Connectors | 3 × DC-37 connectors |
| System Architecture | Simplex and TMR (Triple Modular Redundant) |
| Compatible Board | VAIC Analog Input Board |
| Noise Protection | Surge and high-frequency noise suppression |
| Terminal Blocks | 2 × 24-terminal blocks |
| Maximum Wire Size | #12 AWG |
| Power Consumption | < 31 W |
| Mounting Type | Panel-mounted Terminal Board |
| Operating Temperature | -30°C to +65°C |
| Dimensions (L × W × H) | 330 × 102 × 50 mm |
| Weight | 0.5 kg |
FAQ
FAQ
Q1: What is the primary function of IS200TBAIH1CDD?
It serves as the field termination and signal conditioning interface for analog signals in GE Mark VIe control systems.
Q2: How many analog channels does it support?
It supports 10 analog inputs and 2 analog outputs.
Q3: What input signals are supported?
It supports 1–5 VDC inputs, typically derived from 4–20 mA transmitters.
Q4: What types of transmitters can be connected?
2-wire, 3-wire, 4-wire, and externally powered transmitters are supported.
Q5: Does the board support TMR systems?
Yes, it supports both Simplex and Triple Modular Redundant (TMR) configurations.
Q6: Which processor board is it used with?
It is designed to work with the VAIC Analog Input Board.
Q7: What are the dimensions of IS200TBAIH1CDD?
Approximately 330 × 102 × 50 mm.
Q8: What is the weight of IS200TBAIH1CDD?
Approximately 0.5 kg.
