Technical Specifications
| Parameter | Specification |
|---|---|

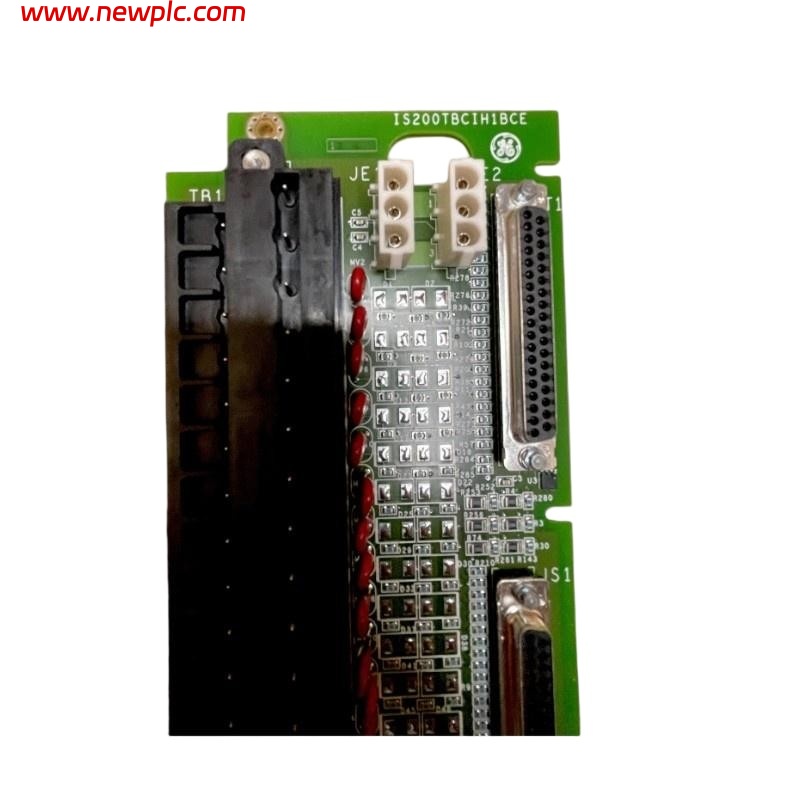

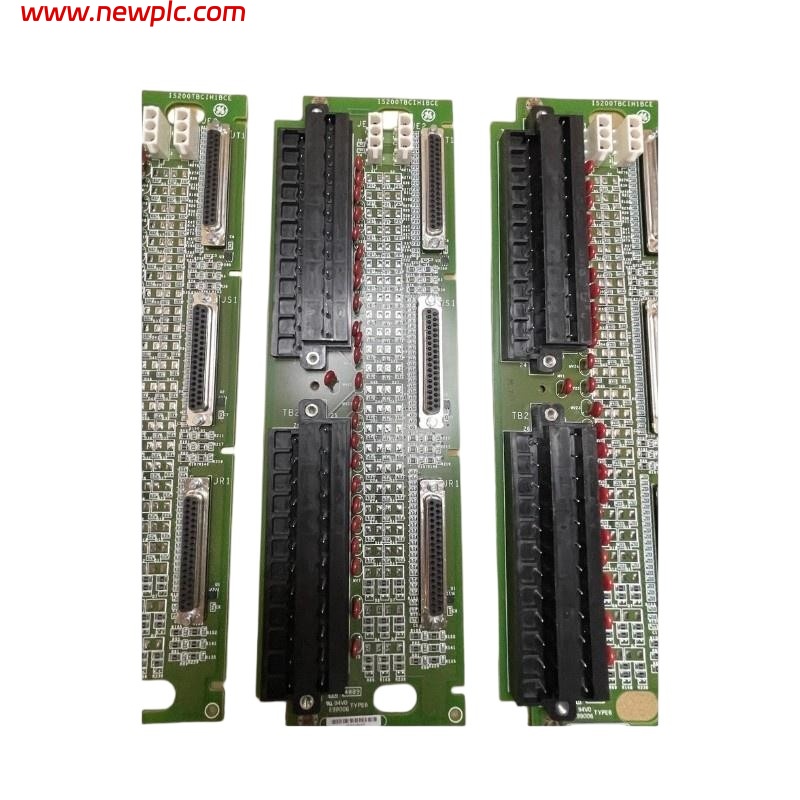

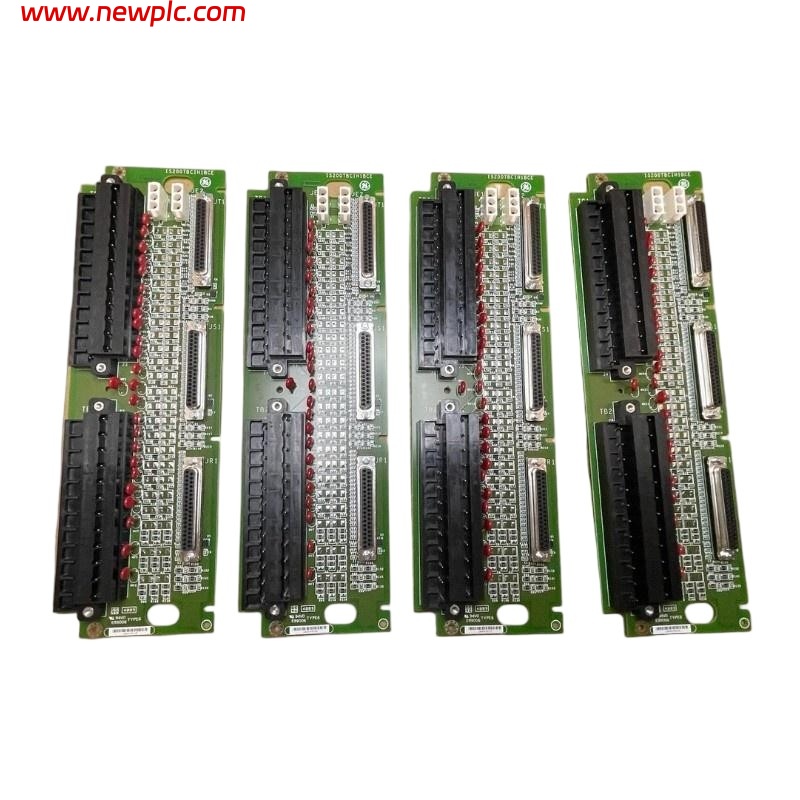

| Product Name | IS200TBCIH1B Contact Input Terminal Board |
| Manufacturer | General Electric (GE) |
| Series / Product Line | Mark VI / Mark VIe Turbine Control Systems |
| Module Type | Contact Input Terminal Board |
| Primary Function | Provides termination and filtering for contact (discrete) input signals from field devices to the turbine control I/O processor; supports isolation and noise suppression for reliable signal processing. |
| Number of Inputs | 24 dry contact input channels |
| Input Type | Dry contact (AC/DC) |
| Isolation | Group isolation for contact inputs |
| Noise Protection | Surge and high‑frequency suppression on inputs |
| Terminal Blocks | Two barrier‑type terminal blocks (up to 48 terminals total) |
| Power Supply | Powered via control system DC bus (typical turbine control wiring) |
| Operating Temperature | –30 °C to +65 °C (typical industrial range) |
| Storage Temperature | –40 °C to +85 °C (typical industrial range) |
| Dimensions (approx.) | 33 cm × 10 cm × 5 cm (length × width × thickness) |
| Weight (approx.) | ~0.55 kg |
| Mounting | Installed in turbine control cabinet or rack; relative to I/O packs |
| Compliance / Use | Industrial gas/steam turbine control applications |
FAQ
FAQ
Q1. What is the IS200TBCIH1B used for?
It’s a contact input terminal board that terminates and conditions dry contact signals from field devices before passing them to the turbine control system’s I/O processor.
Q2. How many contact inputs does it support?
It supports 24 discrete dry contact inputs.
Q3. Does the board provide isolation for input channels?
Yes, it provides group isolation to help prevent interference between different contact input groups.
Q4. What kind of noise protection is included?
The board includes surge and high‑frequency noise suppression circuitry on the inputs to improve signal reliability.
Q5. What are the typical operating temperature range?
The board typically operates from about –30 °C to +65 °C.
Q6. What are the board’s approximate dimensions?
The board is approximately 33 cm long, 10 cm wide, and 5 cm thick.
Q7. How much does the IS200TBCIH1B weigh?
It weighs around 0.55 kg.
Q8. Where is this board mounted?
It is typically mounted within turbine control cabinets or associated rack assemblies as part of the input signal interface.
Q9. Can it be used in redundant systems?
Yes — it is compatible with both simplex and redundant control system configurations in Mark VI and Mark VIe environments.
Q10. Is the IS200TBCIH1B still available?
Yes, it is stocked by industrial control parts suppliers, surplus distributors, and refurbishment channels.
