Technical Specifications
| Parameter | Description |
|---|---|

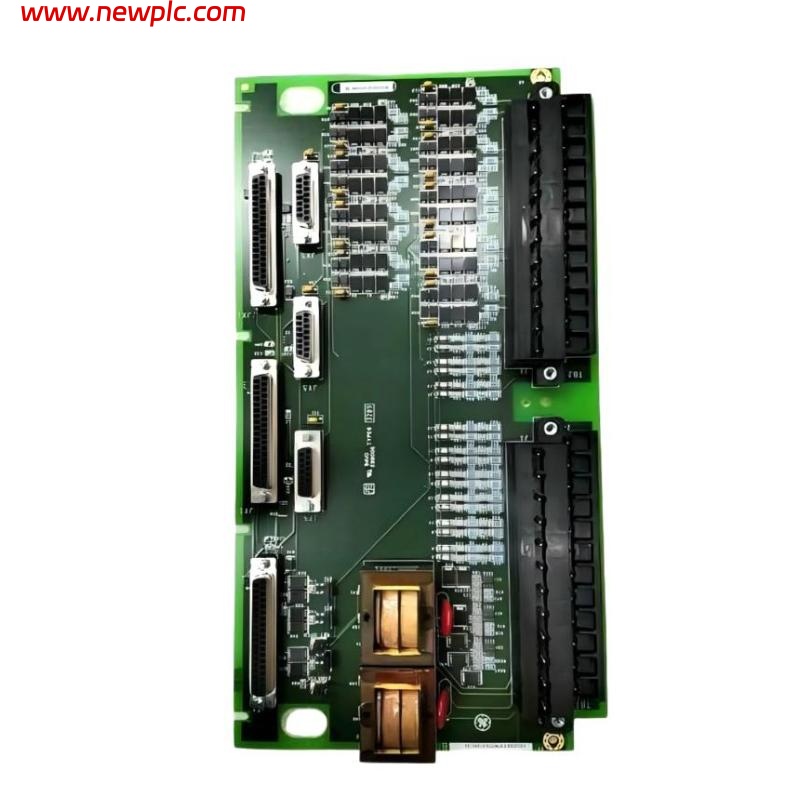

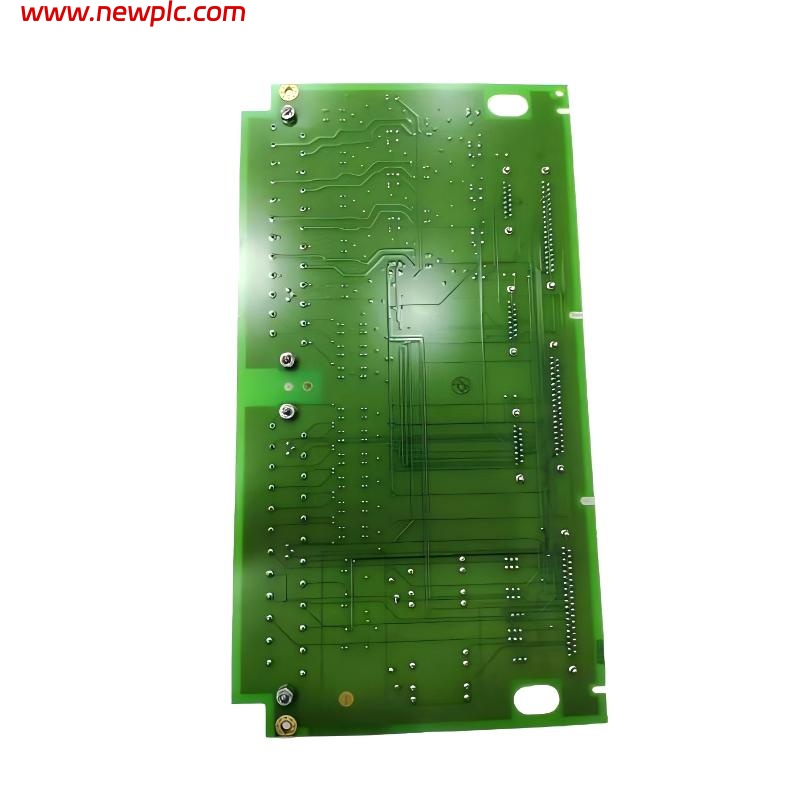

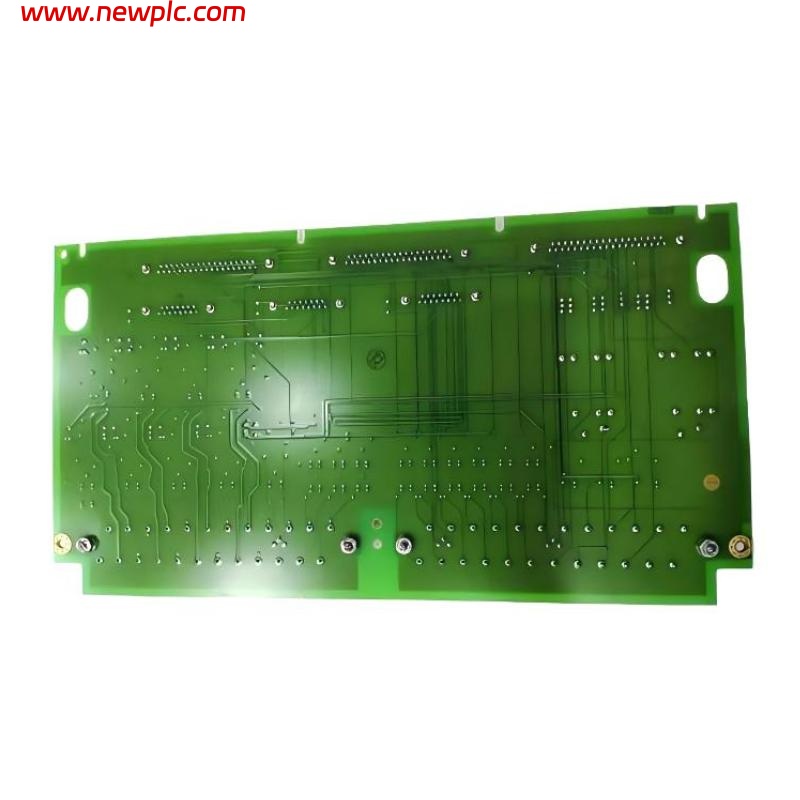

| Model | GE IS200TPROH1CAA Turbine Protection Board |
| Function | Provides comprehensive turbine protection interface for Mark VI/VIe control systems |
| Input Channels | Multiple digital inputs for monitoring protection status and alarm signals |
| Output Channels | Digital outputs for trips, alarms, and interlocks |
| Signal Types | Dry contacts or wetted contacts depending on system wiring |
| Isolation | Channel-to-channel and channel-to-ground isolation to ensure signal integrity |
| Signal Conditioning | Debounce filtering and noise suppression for reliable signal detection |
| Diagnostics | Monitors input/output integrity, wiring status, and board health |
| Communication | Backplane interface to Mark VI/VIe turbine controller |
| Operating Voltage | Typically 24 VDC from turbine control system |
| Mounting | Panel or rack-mounted within turbine control cabinets |
| Dimensions | 285 × 225 × 40 mm |
| Weight | 0.6 kg |
FAQ
FAQ
Q1: What is the main role of the IS200TPROH1CAA board?
A1: It manages turbine protection inputs and outputs, including trips, alarms, and interlocks for safe operation.
Q2: What types of signals are compatible with this board?
A2: Dry contacts and wetted contacts depending on system configuration.
Q3: Does the board provide diagnostic feedback?
A3: Yes, it continuously monitors wiring integrity, input/output health, and overall board status.
Q4: How is the board integrated into the Mark VI/VIe system?
A4: Through the backplane interface, exchanging critical protection status and control signals with the turbine controller.
Q5: Is the board designed for high-noise industrial environments?
A5: Yes, isolation and signal conditioning protect against electrical noise in turbine applications.
Q6: Are the outputs suitable for emergency trip commands?
A6: Yes, outputs are fast and reliable to trigger turbine protection trips.
Q7: Can this board be used in redundant protection configurations?
A7: It is designed for simplex operation; redundant configurations require other board models.
Q8: Can field wiring be preserved during board replacement?
A8: Yes, removable terminal blocks allow the board to be replaced without disconnecting field wiring.
