Technical Specifications
| Parameter | Description |
|---|---|

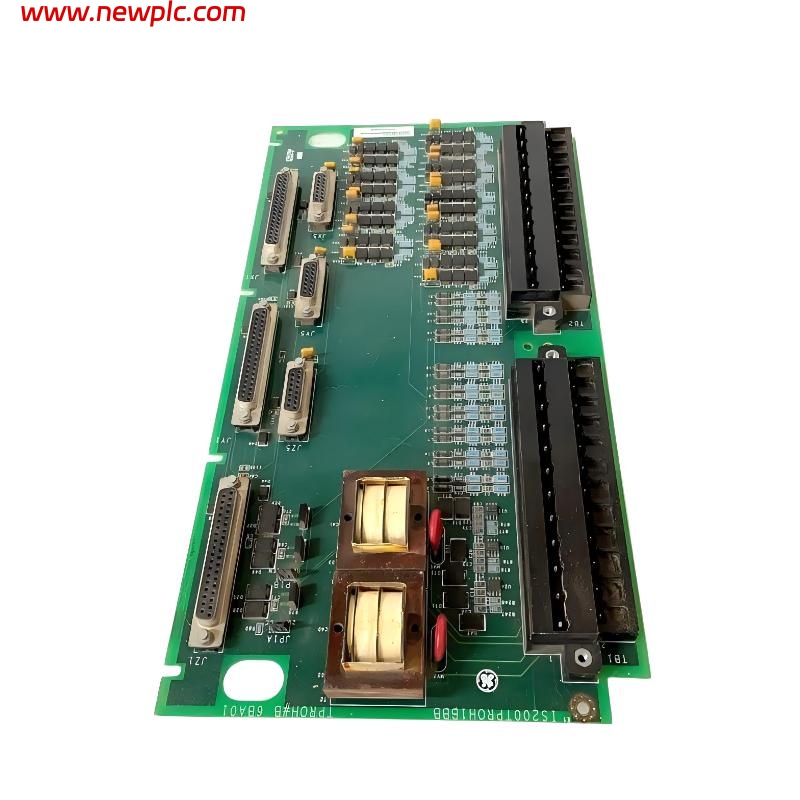

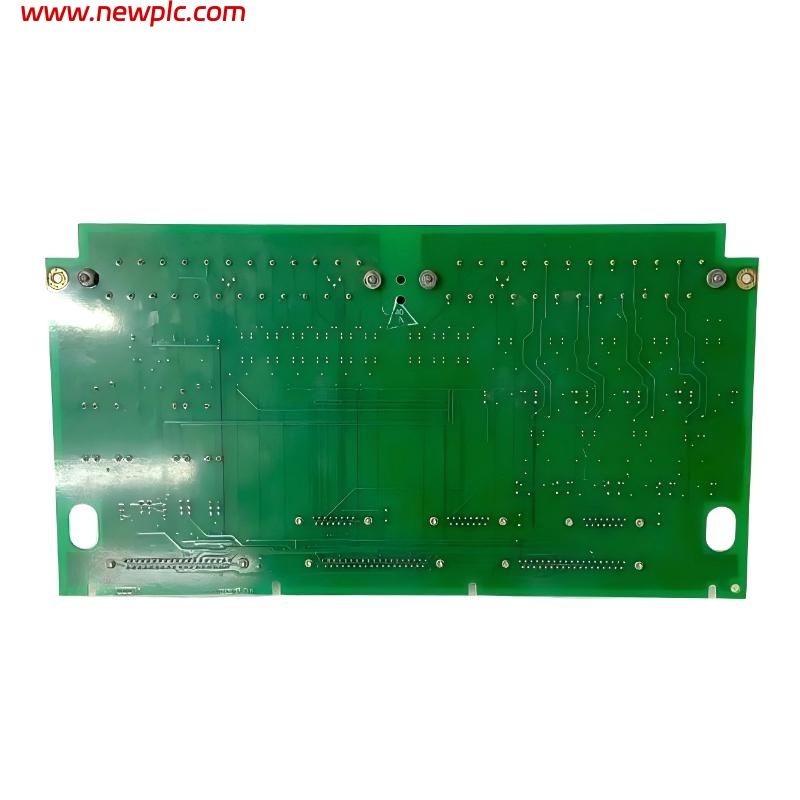

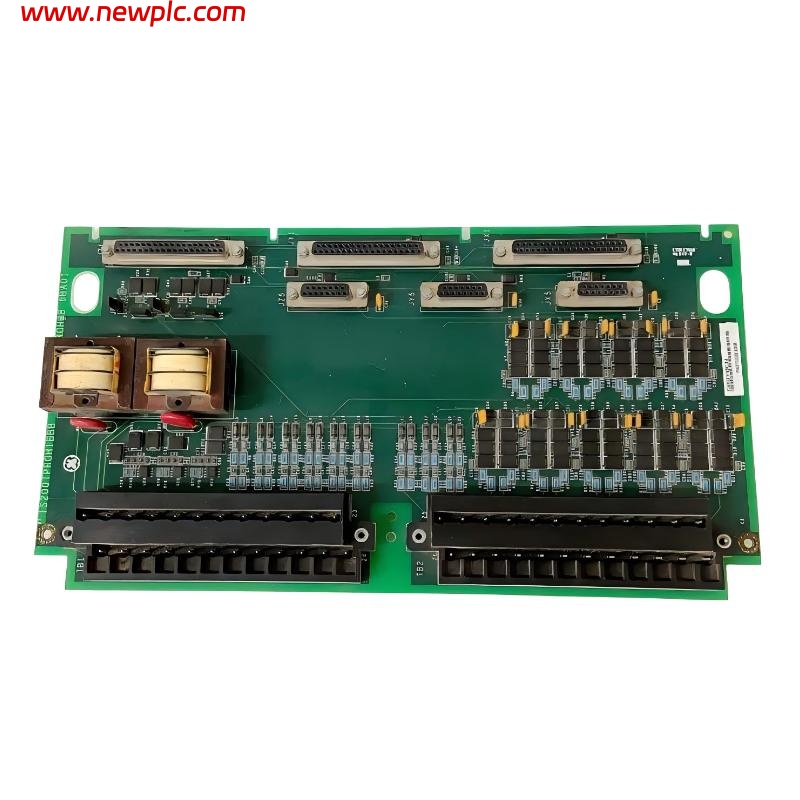

| Model | GE IS200TPROH1C Emergency Protection Terminal Board |
| Function | Provides interface for emergency protection and trip logic in Mark VI/VIe turbine systems |
| Input Channels | Multiple digital inputs for protection status and alarm signals |
| Output Channels | Provides digital outputs for trip and alarm actuation |
| Signal Types | Dry contacts or externally wetted contacts depending on system wiring |
| Isolation | Channel-to-channel and channel-to-ground isolation to ensure signal integrity |
| Signal Conditioning | Debounce filtering and noise suppression for reliable operation |
| Diagnostics | Monitors input/output integrity, wiring status, and board health |
| Communication | Interfaces with Mark VI/VIe controllers via backplane connections |
| Operating Voltage | Typically 24 VDC supplied by turbine control system |
| Mounting | Panel or rack-mounted in turbine control cabinets |
| Dimensions | 285 × 225 × 40 mm |
| Weight | 0.6 kg |
FAQ
FAQ
Q1: What is the primary function of the IS200TPROH1C board?
A1: It handles emergency protection inputs and outputs, enabling trips and alarms in critical turbine conditions.
Q2: What types of signals can this board process?
A2: Dry contacts and wetted contacts, depending on system configuration.
Q3: Does the board provide diagnostic feedback?
A3: Yes, it monitors wiring, input/output integrity, and overall board health.
Q4: How is the board integrated into the Mark VI/VIe system?
A4: It connects through the system backplane to the controller, exchanging status and trip information.
Q5: Can the board handle high electrical noise environments?
A5: Yes, its isolation and filtering design ensure stable operation in turbine and industrial conditions.
Q6: Are the outputs suitable for critical trip commands?
A6: Yes, the outputs are designed for fast and reliable operation to trigger protection trips.
Q7: Does the board support redundant protection configurations?
A7: This model is intended for simplex emergency protection; redundancy requires other board variants.
Q8: Can field wiring be preserved during board replacement?
A8: Yes, removable terminal blocks allow replacement without disconnecting field wiring.
