Technical Specifications
| Parameter | Specification |
|---|---|

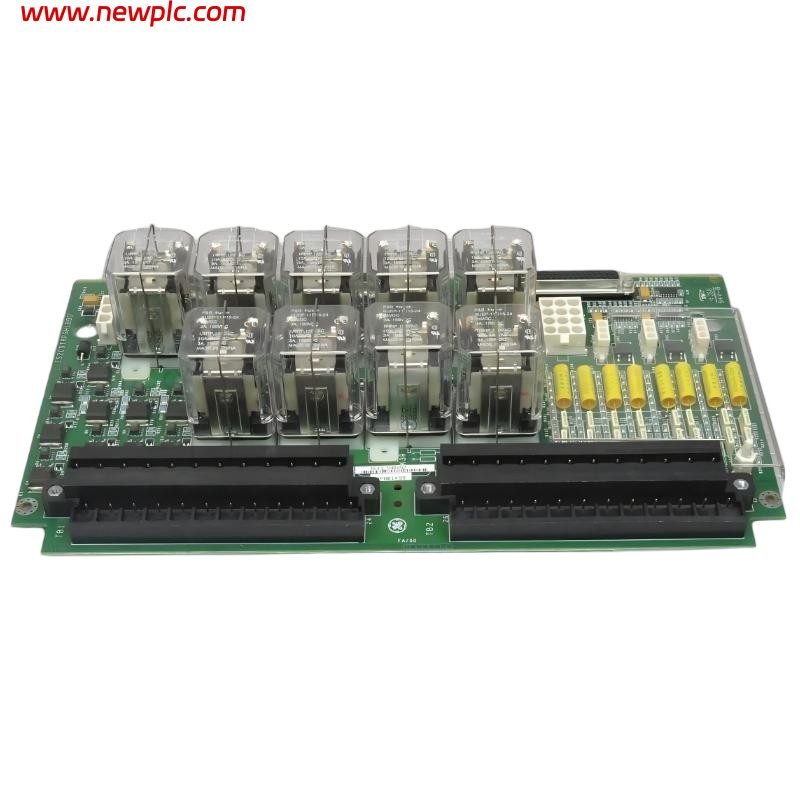

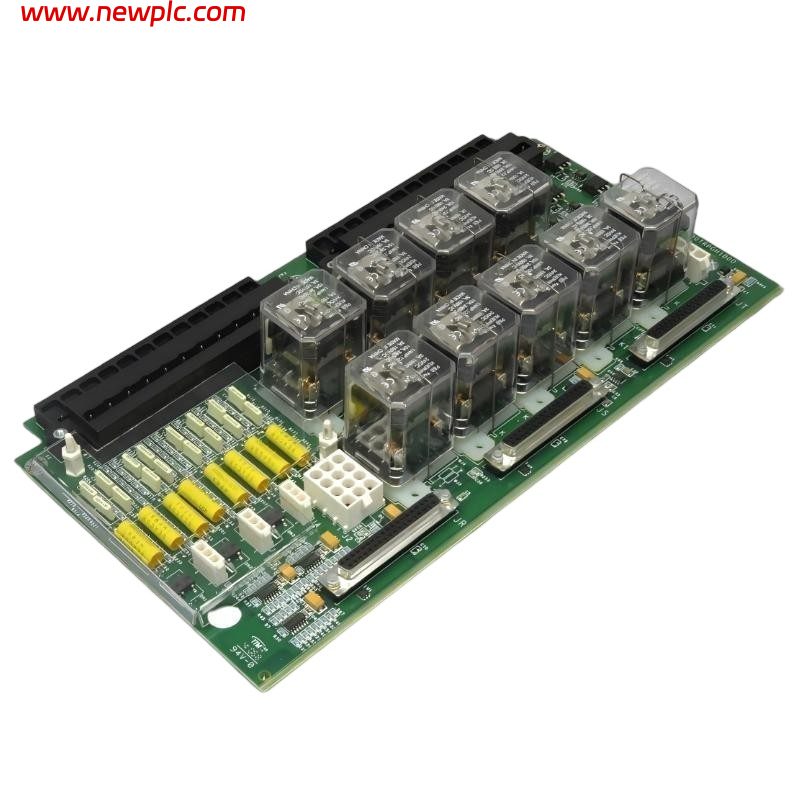

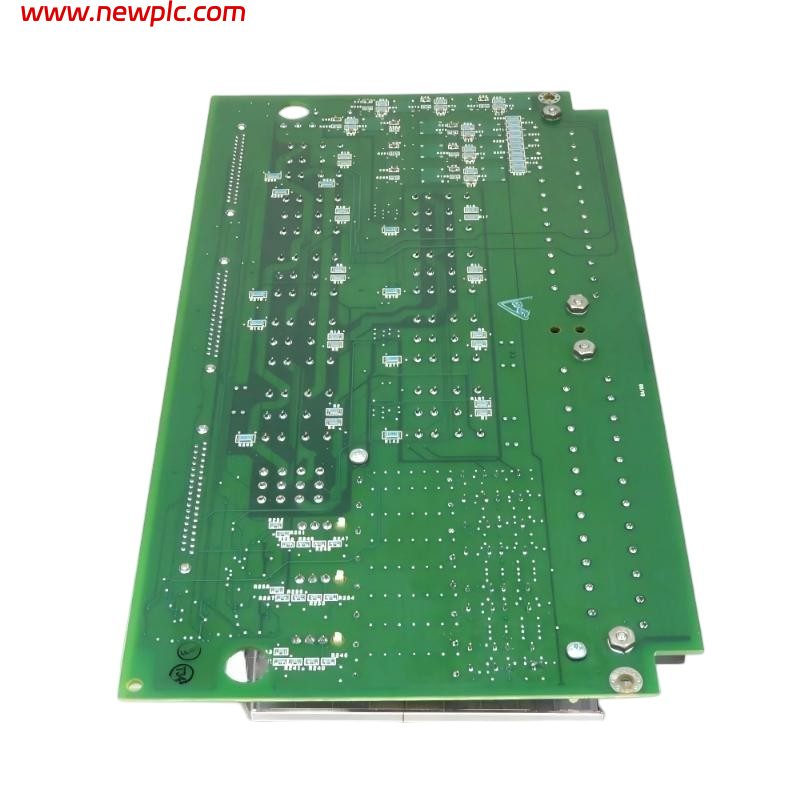

| Part Number | IS200TRPGH1BDD |
| Manufacturer | GE (General Electric) |
| Series | Mark VI / Mark VIe Speedtronic™ |
| Functional Acronym | TRPG |
| Product Type | Primary Trip Terminal Board |
| Function | Turbine primary trip protection and trip solenoid interface |
| System Application | Gas and steam turbine control systems |
| Trip Solenoids Supported | Up to 3 Electrical Trip Devices (ETDs) |
| Relay Configuration | 9 magnetic relays arranged in 3 voting circuits |
| Voting Logic | Hardware 2-out-of-3 (2oo3) TMR voting |
| Flame Detector Inputs | Up to 8 Geiger-Mueller flame detectors |
| Flame Detector Supply | 335 VDC |
| Relay Coil Supply | 28 VDC |
| Solenoid Voltage | 125 VDC or 24 VDC |
| Compatible Controllers | VTUR (Mark VI), PTUR/TURHIC (Mark VIe) |
| Companion Board | TREG Emergency Trip Board |
| System Architecture | TMR (Triple Modular Redundant) |
| Terminal Blocks | 2 removable I/O terminal blocks |
| Mounting Type | Control Cabinet Terminal Board |
| Operating Temperature | -10°C to +55°C |
| Dimensions (L × W × H) | Approximately 216 × 224 × 25 mm |
| Weight | Approximately 0.27 kg (0.6 lb) |
FAQ
FAQ
Q1: What is the primary function of IS200TRPGH1BDD?
It provides the primary turbine trip interface between the protection controller and trip solenoids.
Q2: How many trip solenoids can it control?
Up to three Electrical Trip Devices (ETDs).
Q3: What redundancy method does it use?
A 2-out-of-3 hardware voting scheme using nine relays for TMR applications.
Q4: Does it support flame detection?
Yes, it supports up to eight Geiger-Mueller flame detectors.
Q5: Which GE systems use this board?
It is used in Mark VI and Mark VIe Speedtronic turbine control systems.
Q6: What board does it work with for emergency trip functions?
It works together with the TREG Emergency Trip Board.
Q7: What are the dimensions of IS200TRPGH1BDD?
Approximately 216 × 224 × 25 mm.
Q8: What is the weight of IS200TRPGH1BDD?
Approximately 0.27 kg (0.6 lb).
