Technical Specifications
| Parameter | Description |
|---|---|

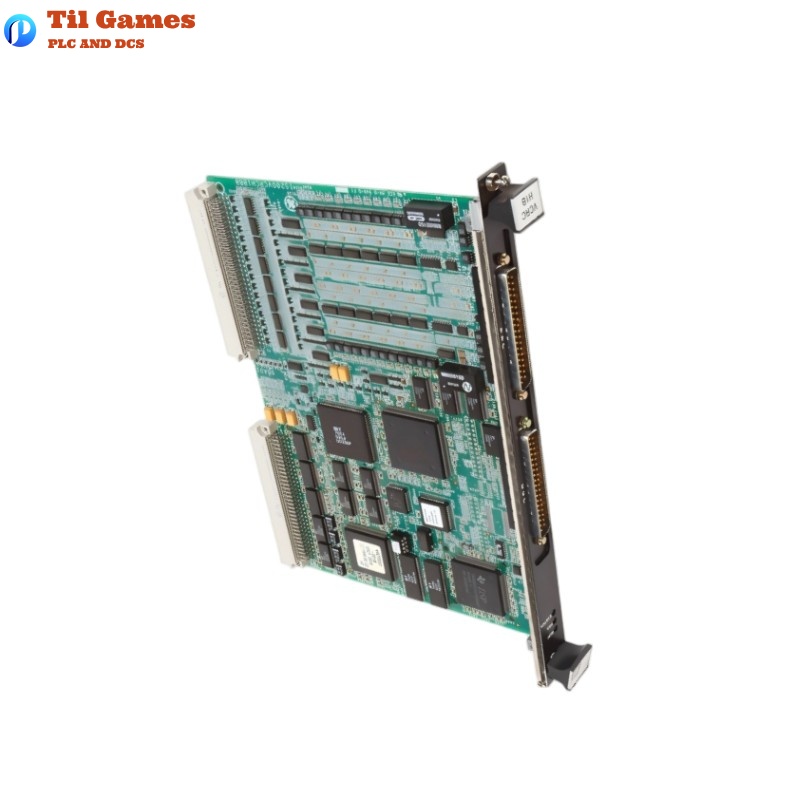

| Model Number | IS200VSPAH1ACC |
| Product Type | Monitoring Card Assembly |
| System Platform | GE Mark VI Control System |
| Configuration | Supports Simplex or Triple Modular Redundant (TMR) control |
| Backplane Connectors | 2 |
| Front Panel | 3 LED indicators, 2 D-shell connectors |
| Vertical Pin Connectors | Multiple for additional connectivity |
| Core Processor | XILINX Field-Programmable Gate Array (FPGA) |
| Power Input | 120/240 V AC or 125 V DC, internally converted to 125 V DC |
| Mounting | Rack-mounted with faceplate secured by two screws |
| Communication | Supports IONet for local/remote I/O; UDH with optional redundancy and fiber-optic support |
| Dimensions | 178 x 330.2 x 43 mm |
| Weight | 0.25 kg |
FAQ
FAQ
Q1: What is IS200VSPAH1ACC?
A1: IS200VSPAH1ACC is a monitoring card assembly developed by GE as part of the Mark VI series, used for signal monitoring and communication in industrial control systems.
Q2: What communication methods are supported by this module?
A2: The module supports IONet for high-speed I/O communication and connects to the Unit Data Highway (UDH) via the controller’s Ethernet port.
Q3: Is redundant communication supported?
A3: Yes, UDH supports redundant dual-cable operation. The system continues to function even if one cable fails.
Q4: Does the module support fiber-optic communication?
A4: Yes, UDH can be configured with fiber-optic communication for higher speed and improved noise immunity.
Q5: Is rack installation required for IS200VSPAH1ACC?
A5: Yes, the module is designed to be mounted in a control cabinet rack and secured using two faceplate screws.
Q6: What is the purpose of the XILINX FPGA on the board?
A6: It provides robust processing capability and flexibility for implementing control logic and high-speed data handling.
Q7: What are the power supply options for the control cabinet?
A7: It supports either 120/240 V AC or 125 V DC input, which is converted internally to 125 V DC for module operation.
Q8: What are the main application areas of this module?
A8: It is primarily used in gas and steam turbine control systems for signal acquisition and system monitoring.
